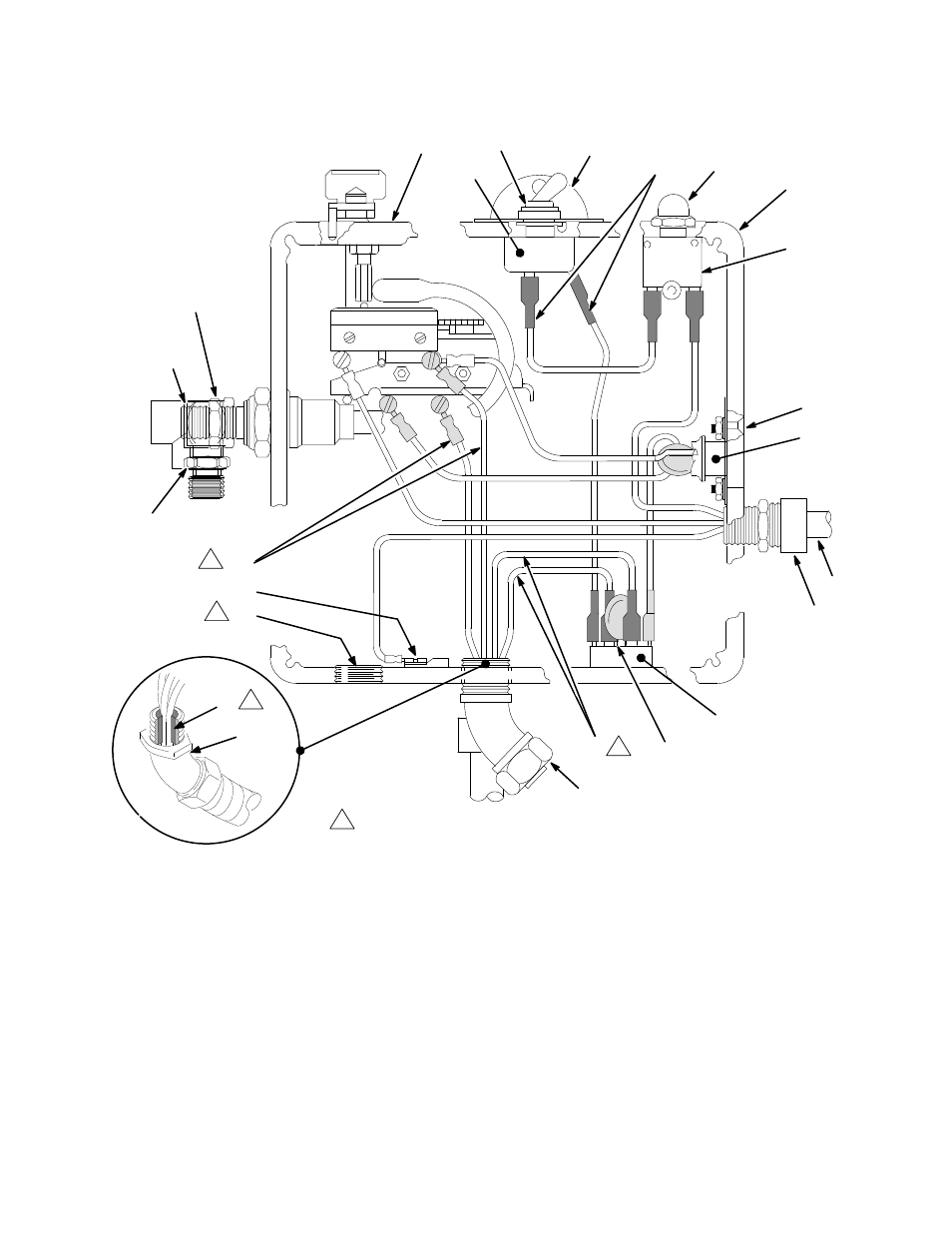

Parts – Pressure Control
Part No. 220–858
Pressure Control Assembly
Includes replaceable items
listed below
ЙЙ
ЙЙ
ЗЗЗЗ
ЗЗЗЗ
ЙЙ ЙЙ ЙЙ ЙЙ
ЙЙ ЙЙ
ЙЙ
ОО
ОО
ОО
ОО
RED
WHITE
BLACK
BLACK
BLACK
WHITE
WHITE
GREEN
RED
RED
101
102
118
113,110,112
115
105
105b 105c
105a
104
105d
105f
106,107
105f
120,107,119
111
114 121
16c
16d
68
103
103
18
BLACK
BLACK
1
See parts list on page 25
1
1
1
1
Ref
No.
Part No. Description Qty
Ref
No.
Part No. Description Qty
101 108–295 STRAIN RELIEF BUSHING 1
102 220–945 POWER SUPPLY CORD, 8.5’ 1
103 108–460 45
_
CONDUIT CONNECTOR 1
104 Y 183–466 LABEL, Warning 1
105 220–905 PRESSURE CONTROL BOX, bare
Includes replaceable
items 105a to 105f
1
105a 105–679 .ON/OFF SWITCH 1
105b 107–255 .GUARD 1
105c 105–659 .BOOT, on/off switch 1
105d 100–840 .ELBOW, street, 1/4 npt(m x f) 1
105e 157–350 .TEE, (2) 1/4 npt(f) x 1/4 npt (m) 1
105f 162–453 .NIPPLE, 1/4 npt(m) x 1/4 nspm 1
106 100–035 SCREW, pan hd, no. 8 x 5/16” 1
107 157–021 LOCKWASHER, no. 8 internal 2
110 100–072 NUT, hex, No. 6–32 2
111 220–924 VARISTOR/RECTIFIER 1
112 103–181 LOCKWASHER, no. 6 2
113 107–070 SCREW, flat hd, no. 6–32 x 5/8” 2
114 107–254 BOOT, circuit breaker 1
115 107–256 CIRCUIT BREAKER 1
118 218–916 TRIAC 1
119 108–783 SCREW, fil hd, no. 8–32 x 13/16” 1
120 100–284 NUT, hex, no. 8–32 1
121 218–168 JUMPER WIRE 2
Y Replacement Danger and W arning labels, tags and cards
are available at no cost.
