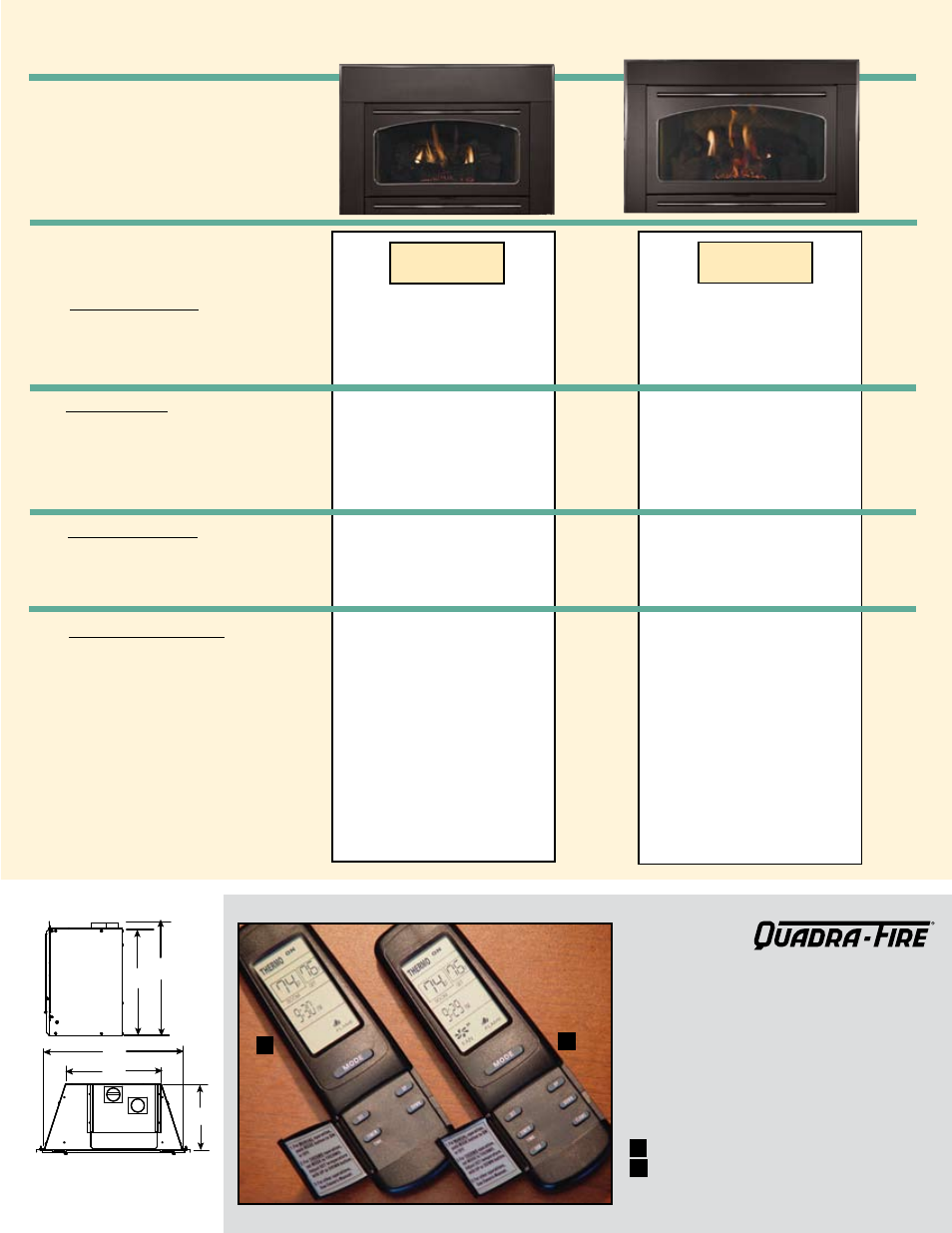

Dimensional Drawing
T e c h n i c a l D a t a
qvi35 qvi30
Dimensions
Min Fireplace Opening 20-1/2"H x 30"W x 14-1/4"D 23"H x 34"W x 14-1/4"D
A 20-1/4" 22-3/4"
B 21-5/32" 23-11/16"
C 20-5/32" 24-1/4"
D 29-1/32" 33-1/32"
E 13-23/32" 13-23/32"
Specifications
BTU Input NG 22,000 – 32,000 23,500 – 35,500
BTU Input LP 18,000 – 31,000 19,000 – 31,000
Efficiency up to 75% up to 78%
Heating Capacity up to 1,500 sq. ft. up to 1,800 sq. ft.
Affinity Affinity
Sun Prairie Sun Prairie
Town Square Town Square
Marquise
Remington
DIMENSIONS
Minimum Fireplace Opening
A
B
C
D
E
SPECIFICATIONS
Btu/Hour Input NG
Btu/Hour Input LP
Efficiency
Heating Capacity
FRONT OPTIONS
SURROUND PANELS
E
D
C
A B
Take your thermostat off your wall and put
it on your coffee table! With a Quadra-Fire
remote control, you can decide your tempera-
ture comfort level, or simply turn on the fire for
enjoyment. Turn the flame up and down and
choose your fan speed with the Multi-Function
model! Ask your dealer for more details on
how to best light your fire with a Quadra-Fire
remote control!
Smart-Batt II or Smart-Stat II transmitter.
Multi-function transmitter with flame and fan
control.
Wireless
A
B
A
B
All inserts have a powerful
variable speed blower and are
approved for bedroom or mobile
home installation. A dual 3"
direct vent chimney liner kit is
needed for venting.
Affinity & Remington
Standard (gold, black nickel or satin nickel trim) 28-1/2" x 40-1/2" 28-1/2" x 44"
Medium (gold or black nickel trim) 31" x 44" --
Large (gold or black nickel trim) 33" x 46" 33" x 48"
Arched (gold, black nickel or satin nickel trim) 30-3/4" x 46" --
(24-7/8" corner height)
Marquise (cast iron trim)
Standard 28-1/2" x 40-1/2" 28-1/2" x 44"
Medium 31" x 44" --
Large 33" x 46" 33" x 48"
Town Square & Sun Prairie (black trim)
Standard 27" x 40" 29" x 42"
Medium 32" x 42" 32" x 42"
Large 32" x 44" 32-3/4" x 48-1/4"
