Hafler 9180 - Manual (Page 15)

LEFT/MONO
INPUT
LEFT/MONO
MONO/STEREO
SWITCH
RIGHT
INPUT
OUTPUT
THERMAL
THERMAL
SENSORS
P R O T E C T I O N
SYSTEM
T U R N O N / O F F
SYSTEM

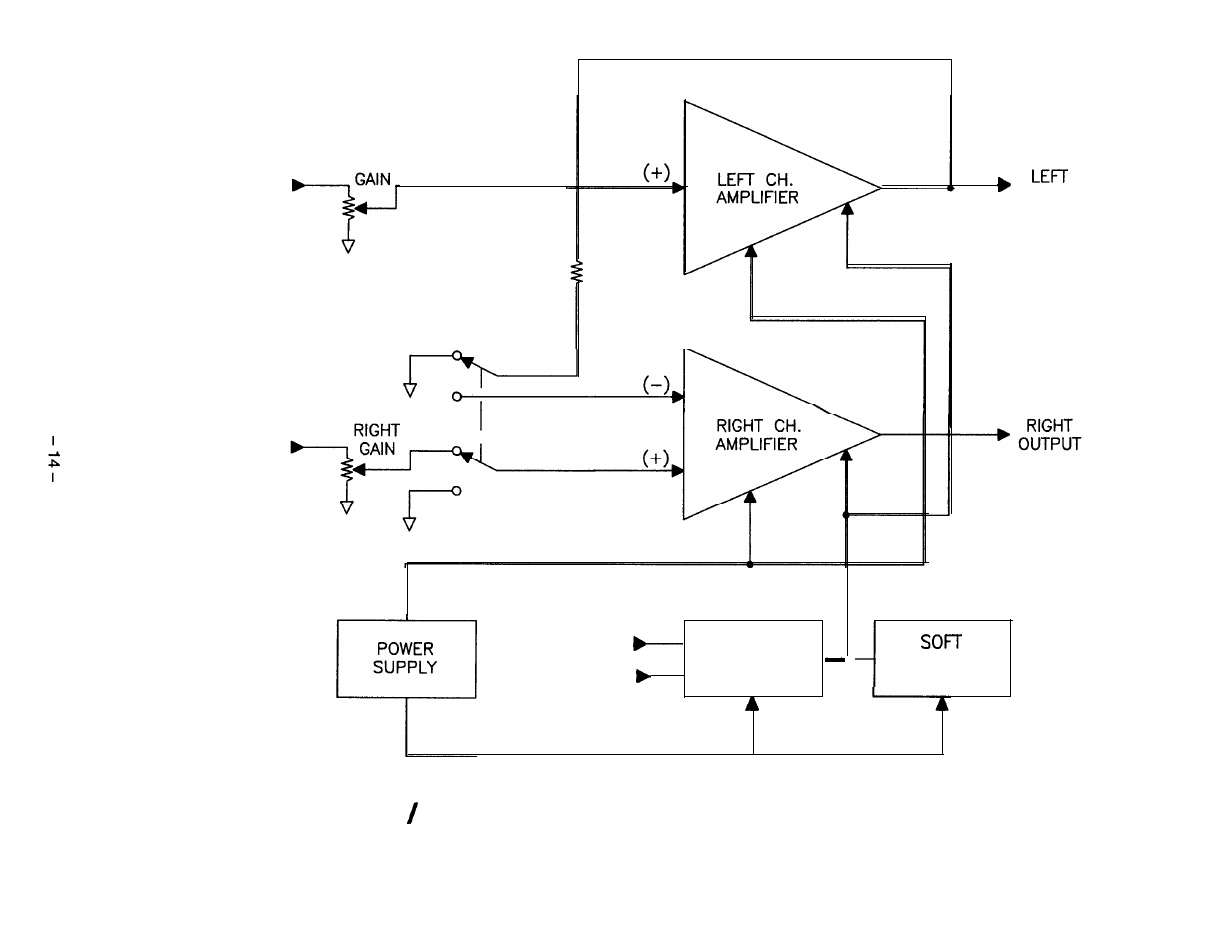

9180 9270 FUNCTIONAL BLOCK DIAGRAM
