Installation
The DR 2800 is shipped with the light shield installed. Remove the
light shield before using cell compartment #2. The light shield can
be stored in the Protective Cover (
Figure 8 on page 18 )
Installation of the light shield
1. Open the cell compartment.
2. Insert the light shield so the arrow on the light shield points to
the left and the orientation tab fits the groove in the
compartment opening (
Figure 7 ).

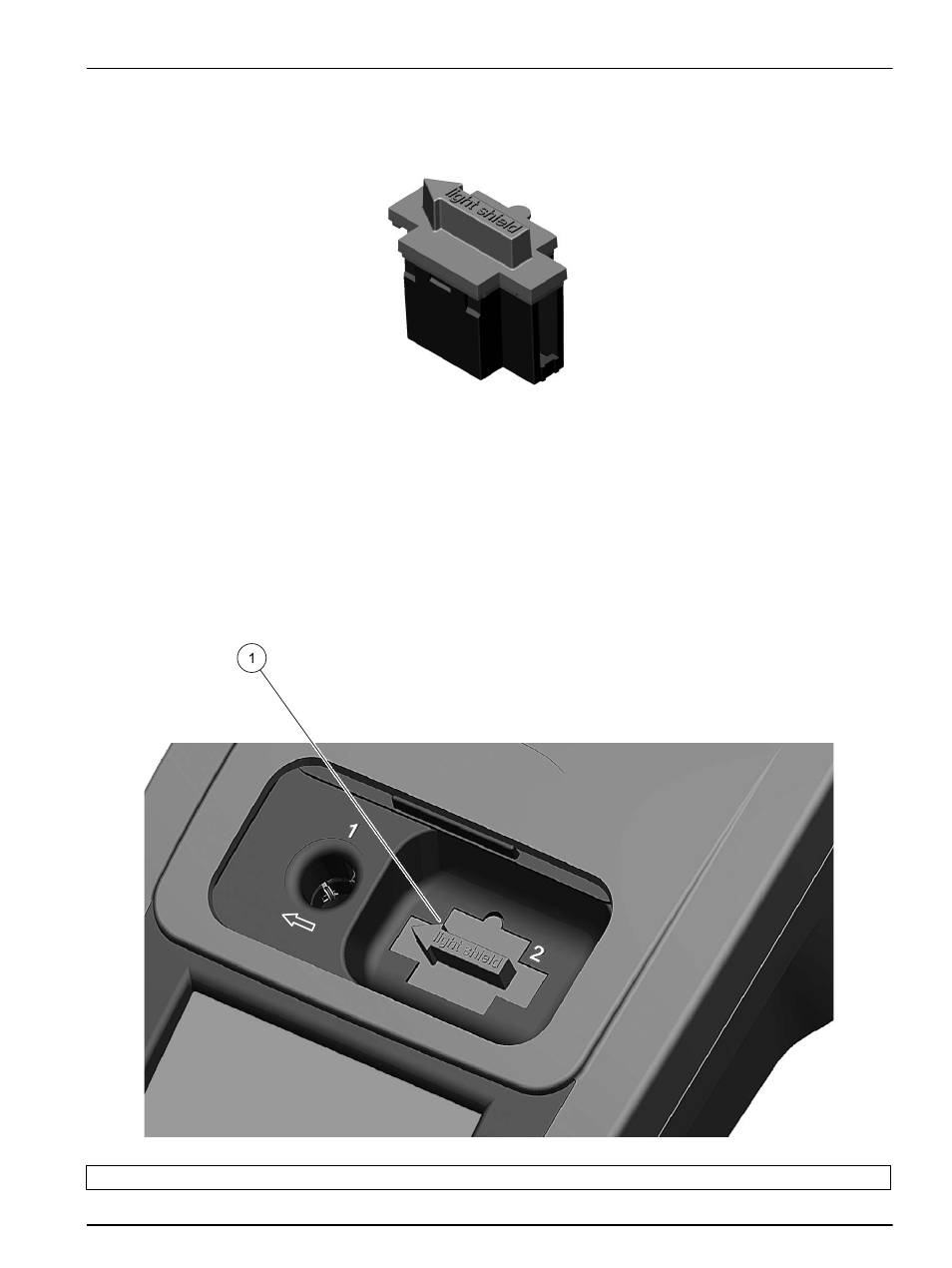

Figure 6 Light Shield
Figure 7 Light Shield in place
1 Light Shield
