Code

398C

399C

Engine

Briggs & Stratton Quantum XTS 50

Briggs & Stratton Quantum XTS 50

Engine type

12F802 - 1382 - 01

12F802 - 1382 - 01

Engine/Cutterbar speed

2800 rpm

2900 rpm

Fuel type

Unleaded petrol

Unleaded petrol

Fuel capacity

1.5 litres

1.5 litres

Oil type

SAE 30 engine oil

SAE 30 engine oil

Oil sump capacity

0.6 litres

0.6 litres

Cutting width

480mm

530mm

Cutting height

20 - 70mm

25 - 75mm

Overall dimensions

1,465 x 525 x 1,020mm

1,510 x 585 x 1,035mm

Dry Weight

34.5 Kg

36 Kg

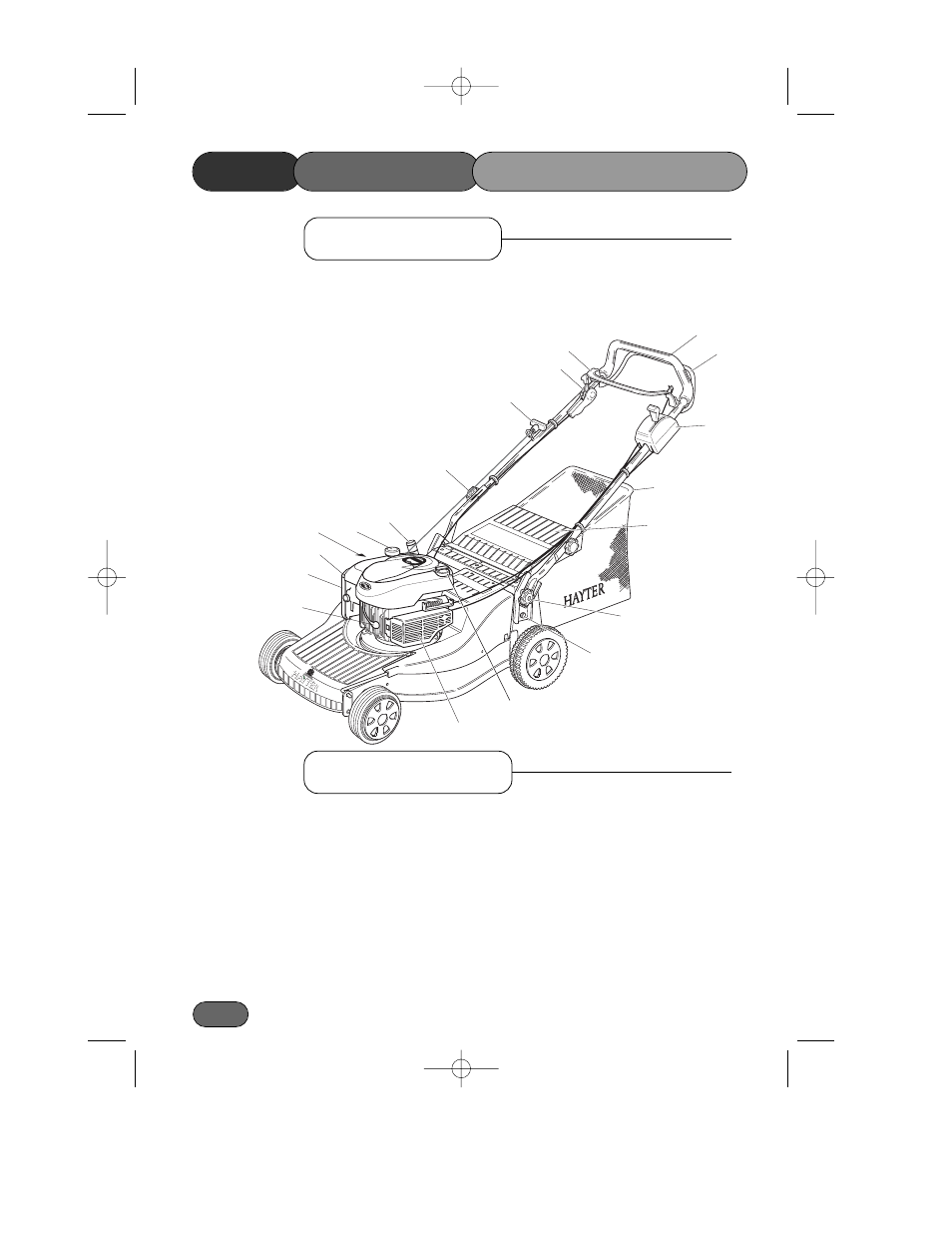

Main Features

Specifications

1.2

1

Spark Plug lead

2

Air Cleaner

3

Engine Cowl

4

Serial No. Label

5

Fuel Cap.

6

Height of Cut Adjuster.

7

Handlebar Securing Knob.

8

Engine Start-Grip.

9

Variable Speed Control (399 only)

10

Engine Stop lever.

11

Handlebar.

12 Ground Drive Clutch Lever (398 & 399 only)
13 Throttle Control
14 Grassbag Assembly.

4P399C01A

1

2

3

4

5

6

7

8

9

10

15

16

17

18

19

14

13

12

11

BRIGGS

& ST

RATT

ON

HARRI

ER

41

MAIN

FEATURES

/SPECIFICATIONS

15 Rear Deflector.
16 Handlebar Height Adjusting knob.
17 Handlebar Height Adjusting Fixing Screw.
18 Oil Filler Cap and Dipstick
19 Exhaust Guard
