Arrow Industrial Selector Guide
126 |
SWITCHES
800-349-4960 | www.arrownac.com/industrial

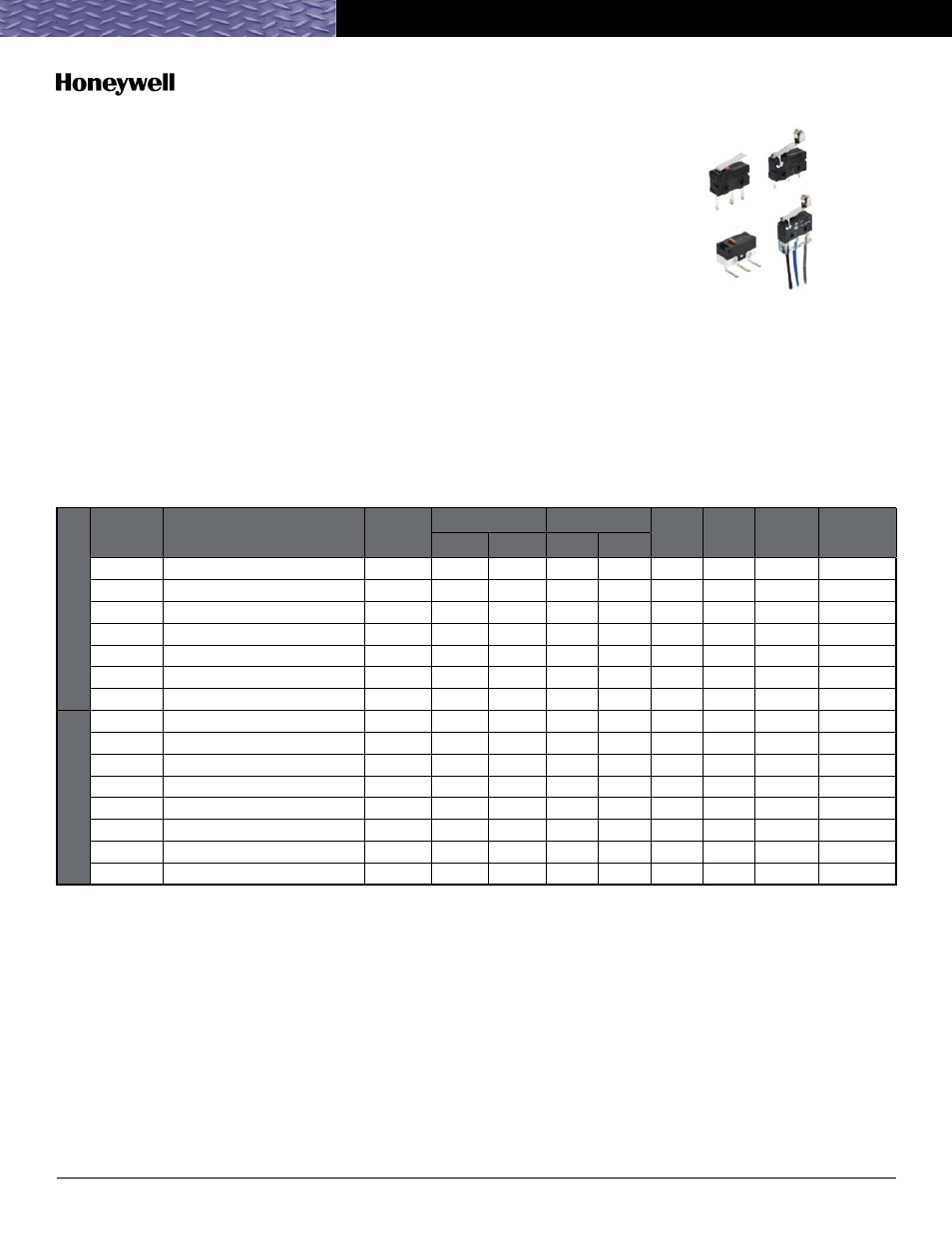

Z Series Basic Switches
Z Series basic switches are used for simple on/off application needs. These
switches are available in four types: ZM—subminiature, integral levers available;
CE: 61058-1, UL: E12252, and CSA: 212438; ZX—sub-subminiature, integral
levers available; CE: 61058-1, UL: E12252, and CSA: 212438; ZV—subminiature,
snap-on levers available; CE: 61058-1 and UL/c-UL: E12252; ZW—sealed ZV
switch style; CE: 61058-1 and UL/c-UL: E12252, ENEC, SE/0145-3.
Features u
• Range of voltage and current ratings
• Straight, roller, simulated roller,
and special actuators
• Variety of integral and snap-on actuators
• Solder, PCB-straight, and angled,
quick connect, special terminations
Benefits u
• Application flexibility
• Gold-plated contacts for
low-voltage applications
• IP67-sealed construction available
for applications in wet environments
Applications u
• Consumer electronics
• Data transmission and
telecommunications equipment
• Vending machines
• Medical equipment
• Test instruments
Pin
Plunger
Part Number Description Terminal Type
Voltage Rating Current Rating (A) Operating
Force
(oz.)
Pretravel
(inches)
Differential
Travel
(inches)
Operating Position
(inches)
VAC VDC AC DC
ZM90G20A01 SPDT, silver contacts PCB 125/250 NA 10.1 NA 8.78 0.043 0.008 0.449 ±0.012
ZM10B10A01 SPDT, gold-plated contacts Solder 125 NA 0.1 NA 2.12 0.043 0.008 0.449 ±0.012
ZX40E30A01 SPDT, silver contacts PCB 125 NA 3.0 NA 5.30 0.051 0.012 0.276 ±0.012
ZX10C10A01 SPDT, gold-plated contacts Solder NA 48 NA 0.1 3.17 0.051 0.012 0.276 ±0.012
ZV50E10A01 SPDT, silver contacts Solder 125/250 NA 6.0 NA 5.15 0.043 0.008 0.449 ±0.012
ZV10B70A01 SPDT, gold-plated contacts QC 0.110 inch 125/250 30 5.0 0.1 2.29 0.043 0.008 0.449 ±0.012
ZW50F15AD1 SPDT, silver contacts Solder 125/250 NA 6.0 NA 7.16 0.047 0.008 0.331 ±0.012
Lever
Switc
hes
ZM50E70D01 SPDT, straight lever, 0.98 inch QC 0.110 inch 125/250 NA 5.0 NA 0.88 0.240 0.059 0.465 ±0.059
ZX40E30C01 SPDT, straight lever, 0.51 inch PCB 125 NA 3.0 NA 1.76 0.134 0.051 0.331 ±0.032
ZV50E10B01 SPDT, straight lever, 0.69 inch Solder 125/250 NA 6.0 NA 1.80 0.181 0.032 0.465 ±0.043
ZV50E70C01 SPDT, straight lever, 0.76 inch QC 0.110 inch 125/250 NA 6.0 NA 1.59 0.201 0.032 0.645 ±0.047
ZW10E15CD1 SPDT, straight lever, 0.76 inch, gold-plated contacts Solder 125/250 NA 0.1 NA 1.94 0.189 0.028 0.347 ±0.047
ZM50E10E01 SPDT, simulated roller lever, 0.71 inch Solder 125/250 NA 5.0 NA 1.23 0.205 0.035 0.591 ±0.059
ZX40E10E01 SPDT, simulated roller lever, 0.47 inch Solder 125 NA 3.0 NA 1.94 0.150 0.051 0.437 ±0.032
ZW10E90FW1 SPDT, roller lever, 0.68 inch, gold-plated contacts Cable 125/250 NA 0.1 NA 2.29 0.169 0.024 0.571 ±0.043
Product Specifications u
