Arrow Industrial Selector Guide
122 |
SWITCHES
800-349-4960 | www.arrownac.com/industrial
Features u
• Low operating force and differential travel
• Long mechanical life: up to 20 million cycles
at 95 percent survival
• Current rating ranges from 15A to 25A
• Momentary or maintained contact options
• Variety of actuating options and optional
sealed plungers
Benefits u
• Elongated mounting hole for easier,
more accurate mounting
• Operating force as low as 1.00 oz.
• Sensitive differential travel as low
as 0.0004 inch
Applications u
• Irrigation systems
• Semi-trailer trucks
• Timing devices
• Office equipment
• Test instruments

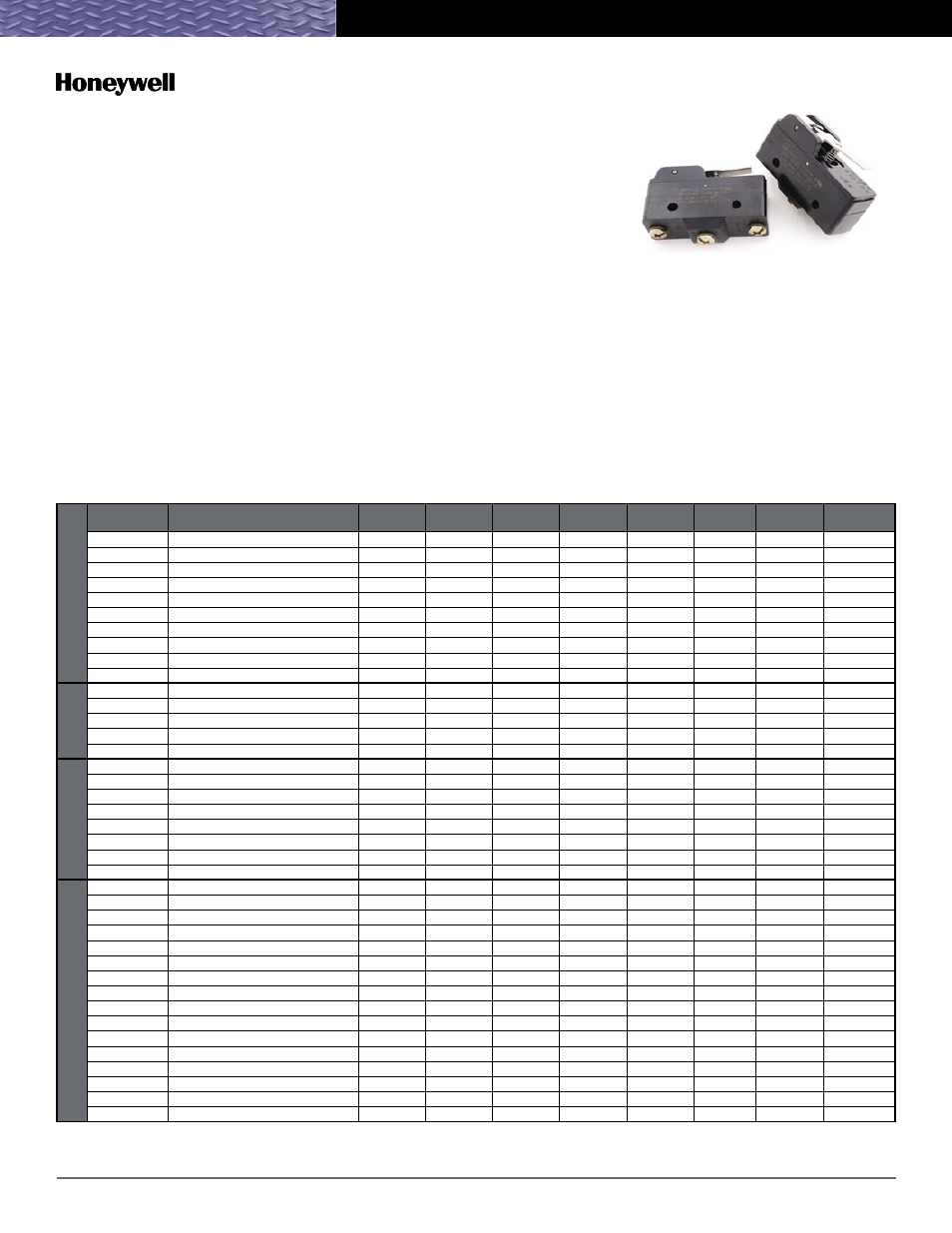

Standard Basic Switches
BZ/BA Series standard basic switches are used for simple or precision on/off
application needs. DT Series standard basic switches consist of two independent,
single-pole, double-throw circuits in one housing actuated by one actuator. The
terminals are separated by a non-conductive shield to reduce shorting.
Standard basic switches
Pin
Plunger
Switc
hes
Part Number Description
Terminal
Type
Plunger Loc.
Dim. (inches)
Lever Pivot
Dim. (inches)
Current
Rating (A)
Operating
Force (oz.)
Pretravel
(inches)
Differential
Travel (inches)
Operating
Position (inches)
BZ-2R SPDT, standard Solder 0.92 NA 15 4 0.015 0.0004–0.0020 0.63
BA-2R-A2 SPDT, standard Screw 0.75 NA 20 14–22 0.05 0.0020–0.0075 NA
BA-2R-A4 SPDT, standard, 8-32 terminal screws Screw 0.75 NA 20 14–22 0.05 0.0020–0.0075 NA
BZ-2R-A2 SPDT, standard Screw 0.92 NA 15 4 0.015 0.0004–0.0020 0.63
BZ-2R72-A2 SPDT, gold contacts Screw 0.92 NA 1 9–13 0.015 0.0004–0.0020 0.63
BZ-2R55-A2-S SPDT, sealed construction Screw 0.92 NA 15 9–15 0.005 0.0004–0.0025 0.63
BZ-3AT 2-circuit double break, low voltage DC Screw 0.92 NA 15 16–26 0.03 0.0020–0.0050 0.63
BA-3ST 2-circuit double break, low voltage DC Screw 0.75 NA 25 26–38 0.065 0.0070–0.0150 0.64
BZ-R88-A2 SPDT, low differential travel Screw 0.92 NA 10 9 0.012 0.0007 0.63
DT-2R-A7 DPDT, standard Screw 0.92 NA 10 12–20 0.075 0.0400–0.0600 0.62
Over
travel
Plunger
Switc
hes
BZ-2RD-A2 SPDT, large plunger Screw 0.92 NA 15 9–13 0.015 0.0004–0.0020 9–13
BZ-2RDS-A2-S SPDT, large seal boot plunger Screw 0.92 NA 15 13–19 NA 0.0004–0.0025 13–19
BA-2RB-A2 SPDT, large plunger Screw 0.75 NA 15 14–22 0.05 0.0020–0.0075 14–22
BZ-2RS-A2 SPDT, small plunger Screw 0.92 NA 15 9–13 0.015 0.0004–0.0025 9–13
BZ-2RN-A2 SPDT, threaded plunger flange Screw 0.92 NA 15 9–13 0.015 0.0004–0.0020 9–13
Bushing-Mount
Over
travel
Plunger
Switc
hes
BZ-2RQ-A2 SPDT, added overtravel Screw 0.92 NA 15 9–13 0.015 0.0004–0.0020 1.5
BZ-2RQ1 SPDT, bushing-mount Solder 0.92 NA 15 9–13 0.015 0.0004–0.0021 0.86
BZ-2RQ1-A2 SPDT, bushing-mount Screw 0.92 NA 15 9–13 0.015 0.0004–0.0022 0.86
BZ-2RQ1T SPDT, bushing-mount Screw 0.92 NA 15 9–13 0.015 0.0004–0.0023 0.86
BZ-2RQ181-A2 SPDT, cross roller plunger Screw 0.92 NA 15 9–13 0.015 0.0004–0.0024 1.31
BZ-2RQ18-A2 SPDT, roller plunger Screw 0.92 NA 15 9–13 0.015 0.0004–0.0025 1.31
BA-2RQ1-A2 SPDT, bushing-mount Screw 0.75 NA 20 14–22 0.05 0.0020–0.0075 0.86
BZ-3RQ1-A2 SPDT, bushing-mount, higher operating force Screw 0.92 NA 15 14–20 0.02 0.0008–0.0030 0.86
Lever
Switc
hes
BZ-2RW80-A2 SPDT, 2.50 inch lever Screw NA 1.03 15 2.5 NA 0.007–0.050 0.75
BA-2RV-A2 SPDT, 2.50 inch lever Screw NA 0.97 20 2.5 0.625 0.109 0.75
BZ-2RW863-A2 SPDT, 6.00 inch lever Screw NA 1.03 15 1 NA 0.018–0.145 0.75
BZ-2RW822 SPDT, 1.05 inch roller lever Solder NA 1.03 15 6 NA 0.003–0.020 1.19
BZ-2RW82255-A2-S SPDT, 1.05 inch roller lever, splash-resist. seal Screw NA 1.03 15 6 NA 0.003–0.020 1.19
BZ-2RW822-P4 SPDT, 1.05 inch roller lever, side-facing screws Screw NA 1.03 15 6 NA 0.003–0.020 0.75
BZ-2RW822T SPDT, 1.05 inch roller lever, sems lockwashers Screw NA 1.03 15 6 NA 0.004–0.040 1.19
BZ-2RW82 SPDT, 1.90 inch roller lever Solder NA 1.03 15 3.5 NA 0.004–0.040 1.19
BA-2RV22-A2 SPDT, 1.05 inch roller lever Screw NA 0.97 20 6 NA 0.045 1.17
BA-2RV2-A2 SPDT, 1.90 inch roller lever Screw NA 0.97 20 3.5 0.25 0.85 1.19
BZ-2RW826-A2 SPDT, 1.26 inch one-way roller lever Screw NA 1.03 15 6 0.468 0.003–0.020 1.625
BZ-2RW8244-A2 SPDT, 2.50 inch lever, 400ºF for 100 hours Screw NA 1.03 5 2.5 1.2 0.007–0.050 0.75
BZ-2RW824-A2 SPDT, 2.50 inch lever, 250ºF Screw NA 1.03 15 2.5 NA 0.007–0.050 0.75
BZ-RW80X SPDT, 2.50 inch lever, manual reset Solder NA 1.03 15 2.25 0.328 NA 0.75
DT-2RV3-A7 DPDT, 2.50 inch lever, reversed Screw NA 0.05 10 4–7 0.27 0.115–190 0.72
DT-2RV212-A7 DPDT, 1.19 inch roller lever, reversed Screw NA 0.05 10 9–15 0.13 0.050–0.085 1.16
Product Specifications u
