1
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

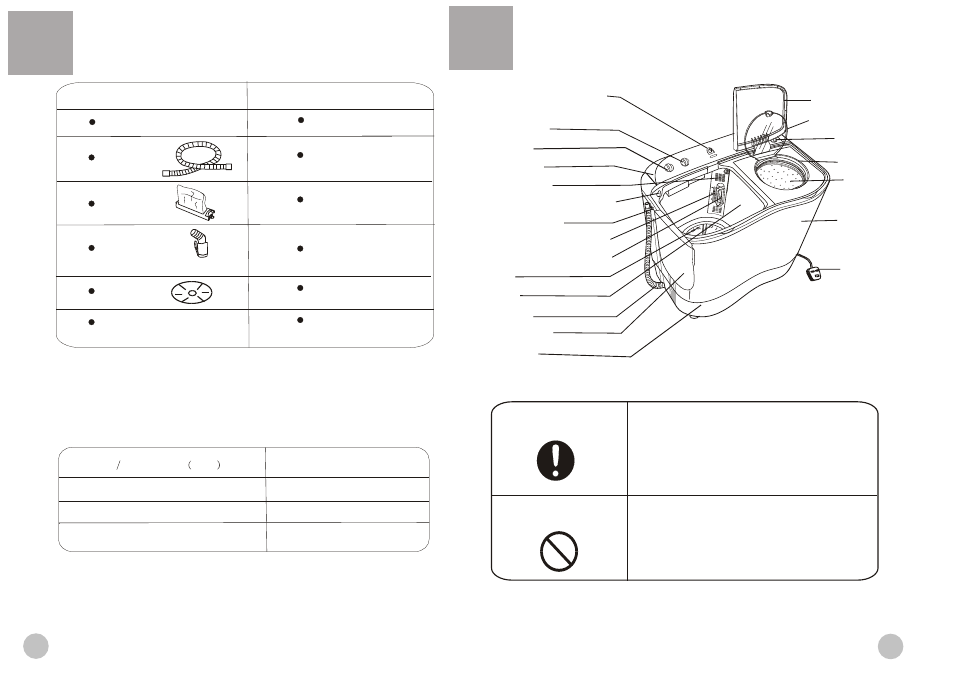

Names of the parts
Spin water-filling entrance
Wash selector
Wash timer
Control panel
Overflow filter
Wash water-filling entrance
Drain hose hook
Water level adjusting lever
Lint filter(Installed by user)
Pulsator
Wash tub
Wash tub cover
Base frame
Drain hose
Cabinet
Power cord
Spin tub
Spin timer
Spin tub frame
Inner cover of the spin tub
Outer cover of the spin tub
16
Packing list
Specification
Water level Water quantity about (L) Maximum/43 Medium/36 Minimum/30
6.0
Injection pressure(MPa) 0.02~0.2
Standard rated spinning capacity(kg) 5.0
Standard rated washing capacity(kg)
Water inlet hose
Water-filling jointer
Gland
Lint filter
Twin-tub washing machine
Name Quantity
User's manual One piece
One piece
One piece
One piece
One piece
One set
