SKU 96933

For technical questions, please call 1-800-444-3353.

wiring

note: Some towing vehicles may already have a 4-way Flat Connector, “Trunk” plug

wired in. For those vehicles, skip the following wiring instructions.

if you do not have experience

doing this type of automotive

electrical wiring or if the

wiring in your vehicle differs

from that explained below,

have an automotive service

technician connect the wiring.

Identify the towing vehicle’s wires

in the trunk that correspond to

the circuits indicated in the Wiring

Color Code diagram to the right.

The white ground wire from the

Pigtail (22) may be connected to a

bolt or appropriate component on

the vehicle to establish a ground

instead of a ground wire.

Connect the wires from the Wiring Pigtail (22) to the proper vehicle circuit wires

using Wire Splices (21). When the supplied splices are used, generally no wire

stripping or cutting would be

required. Follow these three steps

and refer to the illustration to the

right:

Insert the end of the Pigtail (22)

wire into the ‘dead-end’ channel

of the Splice. Insert the wire

all the way to the end of the

channel as shown.
Place the Splice around the

correct vehicle circuit wire.
Make sure both wires stay

properly in place while the

cover is closed until it snaps

together.

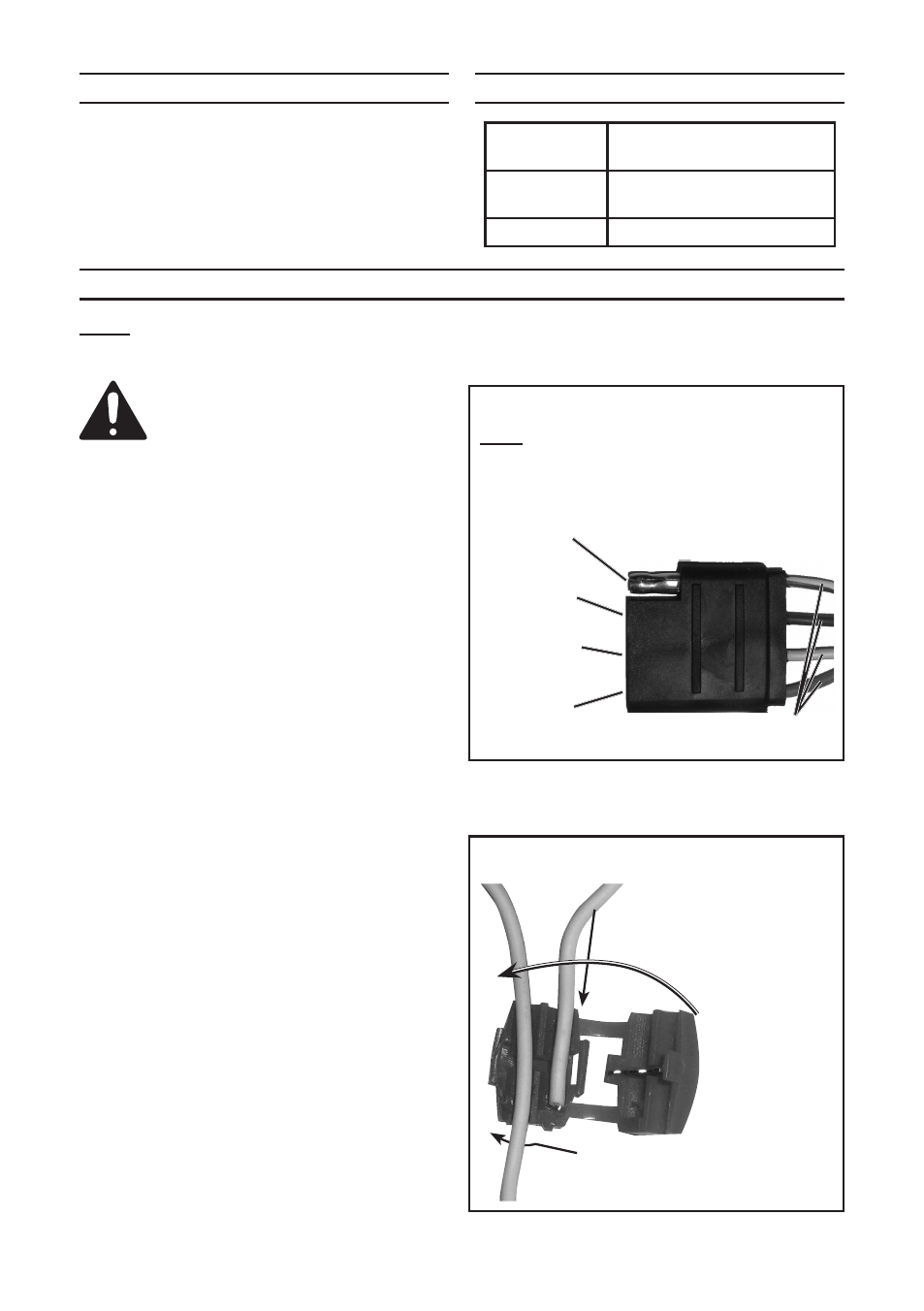

wiring color code

note: This is the wiring configuration of the

“Trunk” 4-way Flat Connector (23). The

towing vehicle may have a different wir-

ing color code.

white

Ground

Brown

Running Lights

Yellow

Left Stop and

Turn Lights

green

Right Stop and

Turn Lights

“trunk” 4-way Flat

connector (23)

wiring

pigtail (22)

wire Splice (21) usage

B) place splice around

vehicle wire

c) close Splice

cover securely

a) insert pigtail (22) wire

into ‘dead-end’ channel

unpacking

When unpacking, check to make

sure that the item is intact and undam-

aged. If any parts are missing or bro-

ken, please call Harbor Freight Tools at

the number shown on the cover of this

manual as soon as possible.

SpeciFicationS

Electrical

Requirements 12 VDC 4.3 A

Bulb Type

12 VDC 21/5 W

(#1157 Type)

Connector

4-way Flat
