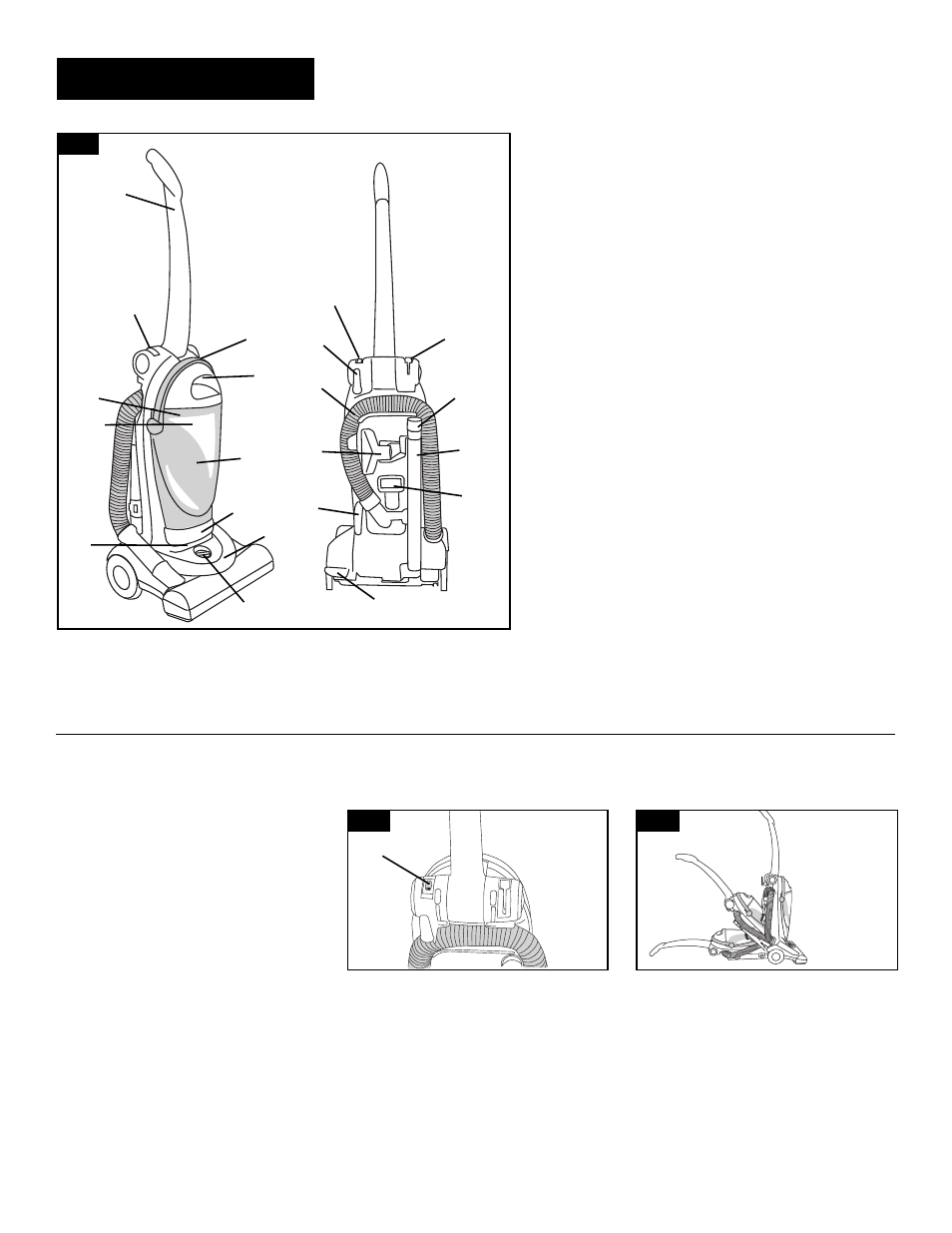

1. FoldAway™ handle
2. Upper handle release

button

3. Dirt cup handle/latch
4. Carrying handle
5. Dirt cup filter chamber
6. Pleated filter

(inside filter

chamber)

7. Dirt cup
8. Headlight
9. Stair cleaning handle:

located under the
headlight.

10. Hood
11. Carpet height adjustment

knob:

rotate knob to cor-

rect setting for height of
carpet being cleaned.

12. Handle release pedal:

step on pedal to lower
handle to operating or low
positions.

13. Hose
14. Furniture nozzle
15. Dusting brush
16. Extension wand
17. Crevice wand:

stores

inside wand

18. Cord hooks:

wrap

cord around hooks for
storage. The top hook
rotates to the left for
easy cord release.

19. ON/OFF switch:

locat-

ed on left rear corner
of cleaner body

Cleaner description

2. How to use

Operate cleaner only at voltage specified on data
plate on bottom of cleaner.
This cleaner is intended for household use.

Polarized plug

To reduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper outlet. Do not change the plug in
any way.

ON-OFF switch

Plug cord into electrical outlet.
To turn cleaner ON, push switch (A) toward
front of cleaner.
To turn cleaner OFF, push toward back of
cleaner.

Handle positions

The handle of your cleaner has three posi-
tions;

upright

when using cleaning tools;

operating position

for general operation

on carpet and floors;

low

for reaching

under low furniture. Step on handle release
pedal to lower handle.

2-2

2-3

2-1
