SUB-TS8 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS 5

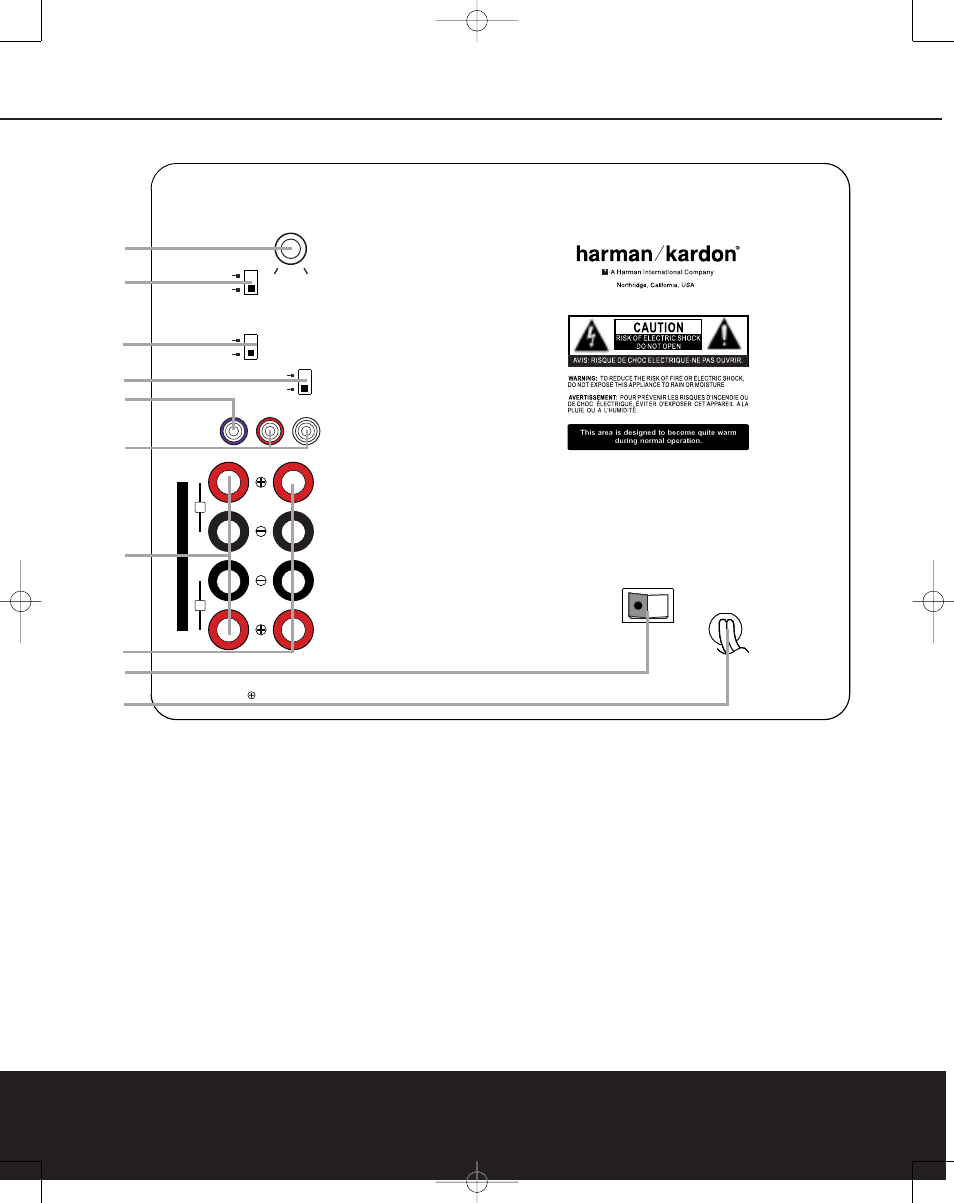

SUB-TS8 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS
OFF
ON
AUTO
ON
FILTER
NORMAL
REVERSE
PHASE
IN OUT
AC 120V~60Hz
POWER
WARNING: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE T 2.5A L/250 VOLT FUSE
AVERTISSEMENT: UTILISEZ UN FUSIBLE DE RECHANGE DE MEME
TYPE T 2.5A L/250V
R L
LINE
LEVEL
IN
MAX MIN
IMPORTANT: CONNECT STRIPED WIRE
TO RED ( ) SPEAKER TERMINAL.
L
R
SUBWOOFER
LEVEL
SUB-TS8 For use with
HKTS 8 System
RISK OF ELECTR IC SHO CK
D O NO T OPE N
CA UTION
RISK OF ELECTR IC SHO CK
D O NO T OPE N
CA UTION
RISK OF ELECTR IC SHO CK
D O NO T OPE N
H
I
G
H
L
E
V
E
L
SUB
¡
™
£
¢
∞
§
¶
•
ª
‚
¡ Subwoofer-Level Control: Volume
may be adjusted using the Subwoofer-
Level Control. Turn the control clockwise
to increase the SUB-TS8’s volume, or
counterclockwise to decrease it.
™ High-Cut (Low-Pass) Filter Switch:
Placing switch in the
ON position activates
circuitry that cuts out all audio input signals
above 120Hz. This allows the SUB-TS8
to focus its power on reproducing the low-
frequency portion of the signal, avoiding
inefficiency and distortion. Engage this filter
when using the Speaker-Level Inputs •,
or when using the Line-Level Full-Range
Inputs §, unless your receiver or processor
processes its line-level output using a low-
pass filter. The filter has no effect when the
SUB Input ∞ is used.
£ Music-Sense On/Off Switch: When
placed in the
AUTO position, and when the
Master Power Switch ª is turned on, the
SUB-TS8 will automatically turn itself on or
place itself in the Standby mode, depending on
whether it is receiving an audio signal. When
this switch is placed in the
ON position, the
SUB-TS8 will remain on, whether or not it is
receiving an audio signal.
An LED located on top of the SUB-TS8 indi-
cates whether the SUB-TS8 is in the ON or
STANDBY state when used with the Music-
Sense On/Off Switch £ in the
AUTO
position. The LED is lit blue to indicate that
the SUB-TS8 is receiving an audio signal
¡ Subwoofer-Level Control
™ High-Cut (Low-Pass) Filter Switch
£ Music-Sense On/Off Switch
¢ Phase Switch ∞ Line-Level Subwoofer (SUB) Input
§ Line-Level Full-Range Inputs
¶ Speaker-Level Outputs
• Speaker-Level Inputs ª Master Power Switch
‚ AC Power Cord
