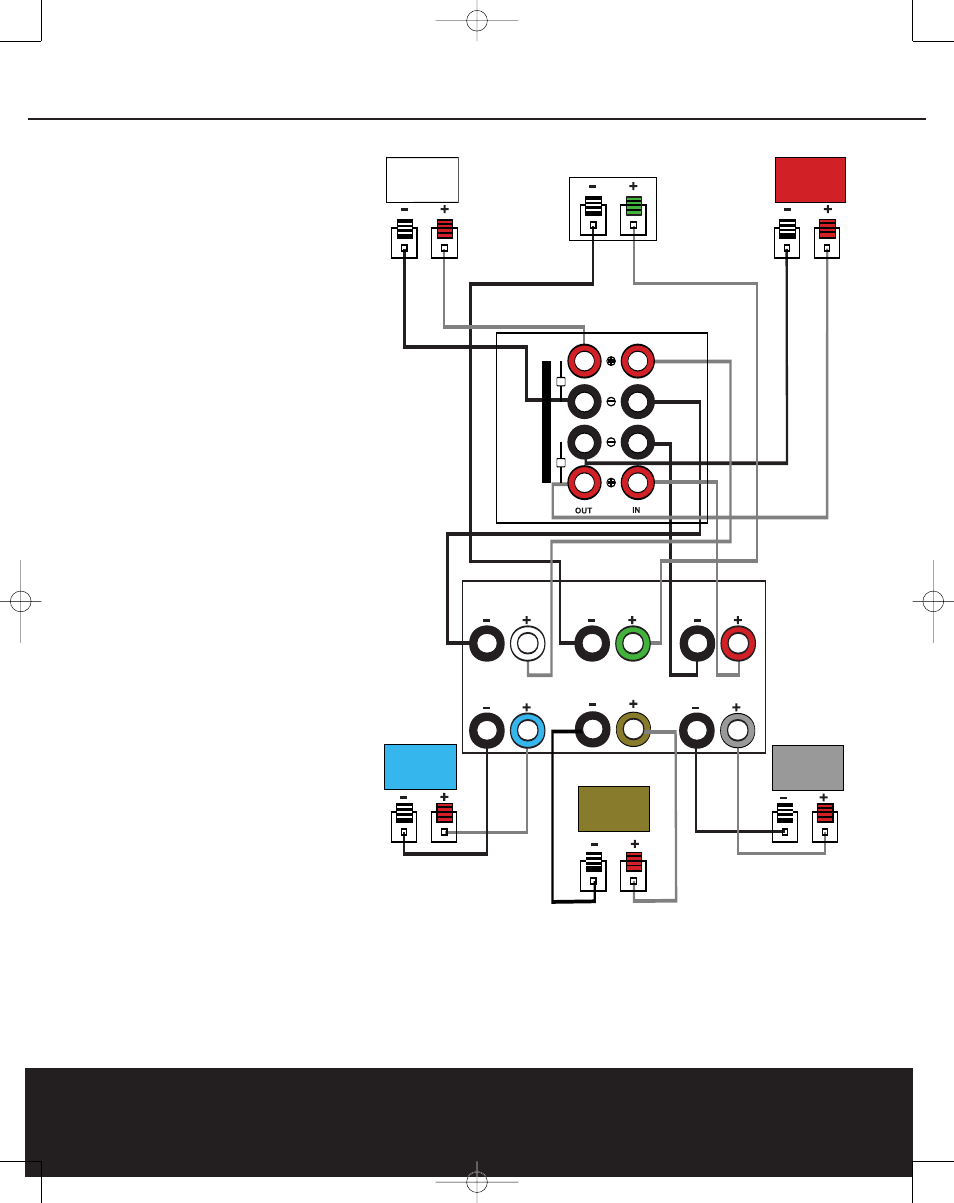

12 SPEAKER CONNECTIONS
SPEAKER CONNECTIONS
Front Left
Surround Left
Center Front Right
Surround Right
SUB-TS8
Subwoofer
Surround
Right
Front
Right
Surround
Left
Front
Left
Center
L
R
H
I
G
H
L
E
V
E
L
Receiver
Surround Back
Surround
Back
Dolby Pro Logic
(Non-Digital) – Speaker Level
USE THIS INSTALLATION METHOD FOR
DOLBY PRO LOGIC APPLICATIONS (NOT
DOLBY DIGITAL, DTS OR OTHER DIGITAL
PROCESSING), WHERE THE RECEIVER/
PROCESSOR DOES NOT HAVE A SUB-
WOOFER OUTPUT, OR A VOLUME-
CONTROLLED PREAMP (LINE-) LEVEL
OUTPUT:
Connect your receiver or amplifier’s front
left and right speaker terminals to the left
and right Speaker-Level Input • termi-
nals on the SUB-TS8 subwoofer that are
marked “High Level In.” Connect the left and
right Speaker-Level Output ¶ terminals
on the SUB-TS8 subwoofer that are marked
“High Level Out” to the corresponding ter-
minals on the back of your front left and right
speakers.
Connect your receiver or amplifier’s center
and surround speaker terminals to the
corresponding terminals on the back of
your center and surround speakers.
When all connections have been made,
plug the AC power cord on the subwoofer
into an AC outlet.
