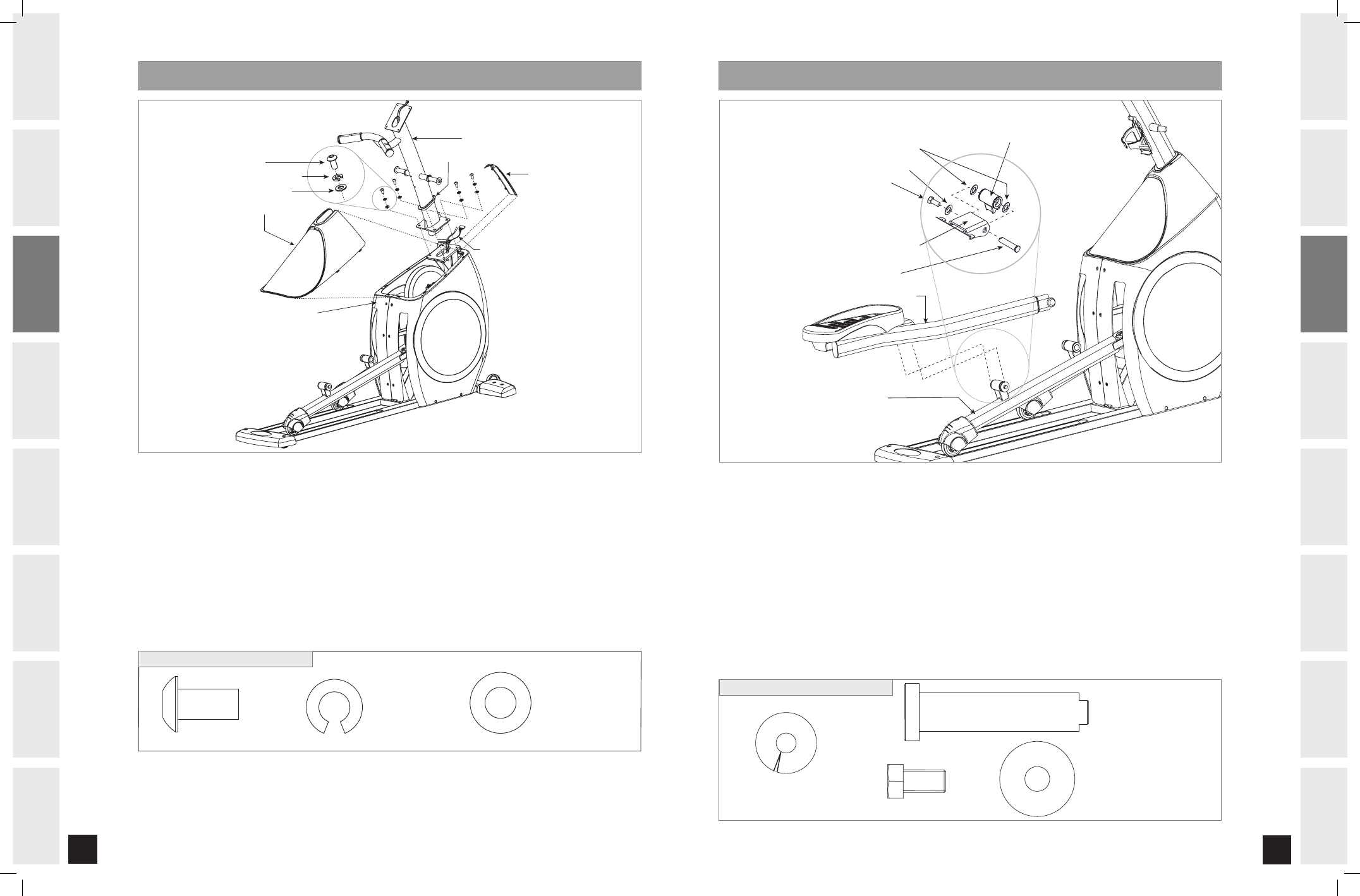

A) Open HARDWARE BAG FOR STEP 2.
B) Carefully pull the CONSOLE CABLES through the CONSOLE MAST using the twist tie located inside the
CONSOLE MAST.
C) Attach the CONSOLE MAST to the MAIN FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4 FLAT
WASHERS (C).
D) Attach the TOP FRONT COVER, followed by the TOP BACK COVER and snap them together.
E) Slide CONSOLE MAST BOOT down to seal the console mast hole.
ASSEMBLY STEP
CONSOLE MAST
CONSOLE MAST BOOT
MAIN FRAME
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
TOP FRONT COVER
TOP BACK COVER
CONSOLE MAST BOOT
CONSOLE WIRES
#0-5 "
NN
2UZ 413*/(8"4)&3 #
NN
2UZ '-"58"4)&3 $
NN
2UZ
HARDWARE BAG FOR STEP 2 CONTENTS :
ASSEMBLY STEP 2
PEDAL ARM
PEDAL ARM TUBE
TEFLON WASHERS (F)
BOLT (H)
FLAT WASHER (G)
LOWER LINK ARM
LINK ARM BRACKET
SPACER (E)
A ) Open HARDWARE BAG FOR STEP 3.
B) Align the bracket on the LEFT LOWER LINK ARM with the tube on the LEFT PEDAL ARM.
C) Slide the SPACER (E) through the LINK ARM BRACKET and the PEDAL ARM so it can’t rotate.
D) Insert 2 TEFLON WASHERS (F) between the PEDAL ARM and the LINK ARM BRACKET.
E) Secure the joint with a FLAT WASHER (G) and BOLT (H).
F) Repeat on the other side.
BOLT (H)
15 mm
Qty: 2
SPACER (E)
70 mm axis
Qty: 2
FLAT WASHER (G)
35 mm
Qty: 2
SPLIT TEFLON WASHER (F)
30 mm
Qty: 4
HARDWARE BAG FOR STEP CONTENTS :
