Specifications Information and Repair Parts Manual
5660-97 thru 5669-97
1 2
3
5
4
6
7
8
9
10
12
13
11

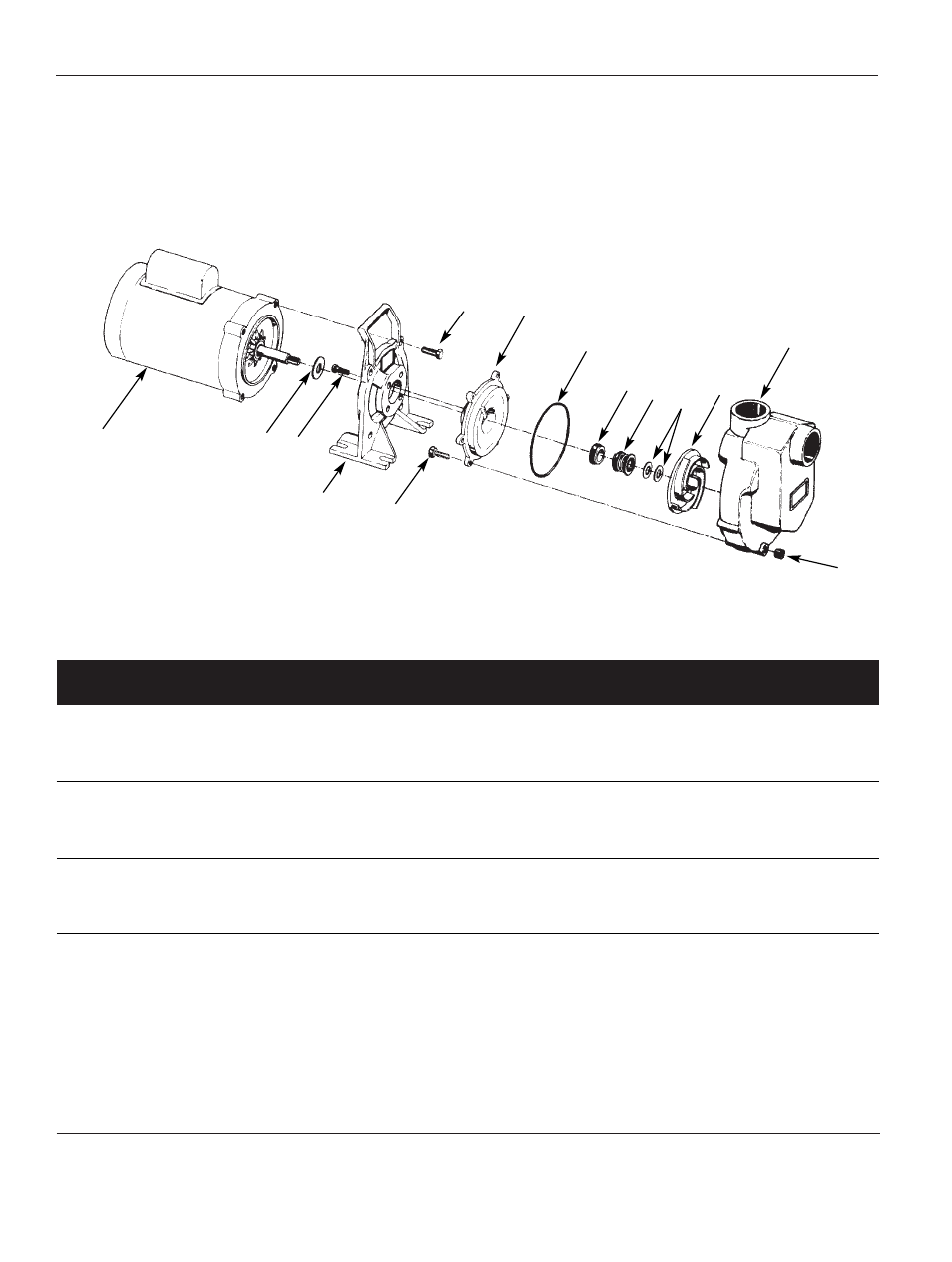

Figure 3 — Repair Parts Illustration
For Repair Parts, contact dealer where pump was purchased.
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown in parts list
14
4
Repair Parts List
Part Number For Models:
Ref. 5660-97 (1/2HP) 5661-97 (3/4HP) 5662-97 (1HP) 5664-97 (2HP)
No. Description 5665-97 (1/2HP) 5666-97 (3/4HP) 5667-97 (1HP) 5669-97 (2HP) Qty.
1 Motor -1 Phase ODP 1626-009-00 1626-010-00 1626-011-00 1626-024-00 1
-1 Phase TEFC 1626-068-00 1626-051-00 1626-069-00 1626-070-00
2 Slinger washer 1534-000-00 1534-000-00 1534-000-00 1534-000-00 1
3 Fastener * * * * 4
4 Adapter 1993-000-01 1993-000-01 1993-000-01 1993-000-01 1
5 Fastener * * * * 6
6 Fastener * * * * 4
7 Casing cover 2104-003-02 2104-003-02 2104-003-02 2104-003-02 1
8 Casing seal -Buna N 2104-004-00 2104-004-00 2104-004-00 2104-004-00 1
9 ‡ Seal seat -Buna N 1640-161-90 1640-161-90 1640-161-90 1640-161-90 1
10 ‡ Seal head -Buna N 1640-161-90 1640-161-90 1640-161-90 1640-161-90 1
11 Impeller shim (package of 3) 1657-000-90 1657-000-90 1657-000-90 1657-000-90 1 pkg
12 Impeller 2104-006-01 2104-006-02 2104-002-01 2104-015-02 1
13 Casing 2218-006-01 2218-006-01 2218-006-01 2218-006-01 1
14 Pipe plug * * * * 1
(‡) Seal Assembly (Ref. Nos. 9 & 10) includes Seal Head and Seal Seat and is available as a set only.
(*) Standard hardware item, available locally.
