8
8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrench in a secure place; the allen wrench is used to adjust the walking
belt (see page 23). To protect the floor or carpet from damage, place a mat under the treadmill.

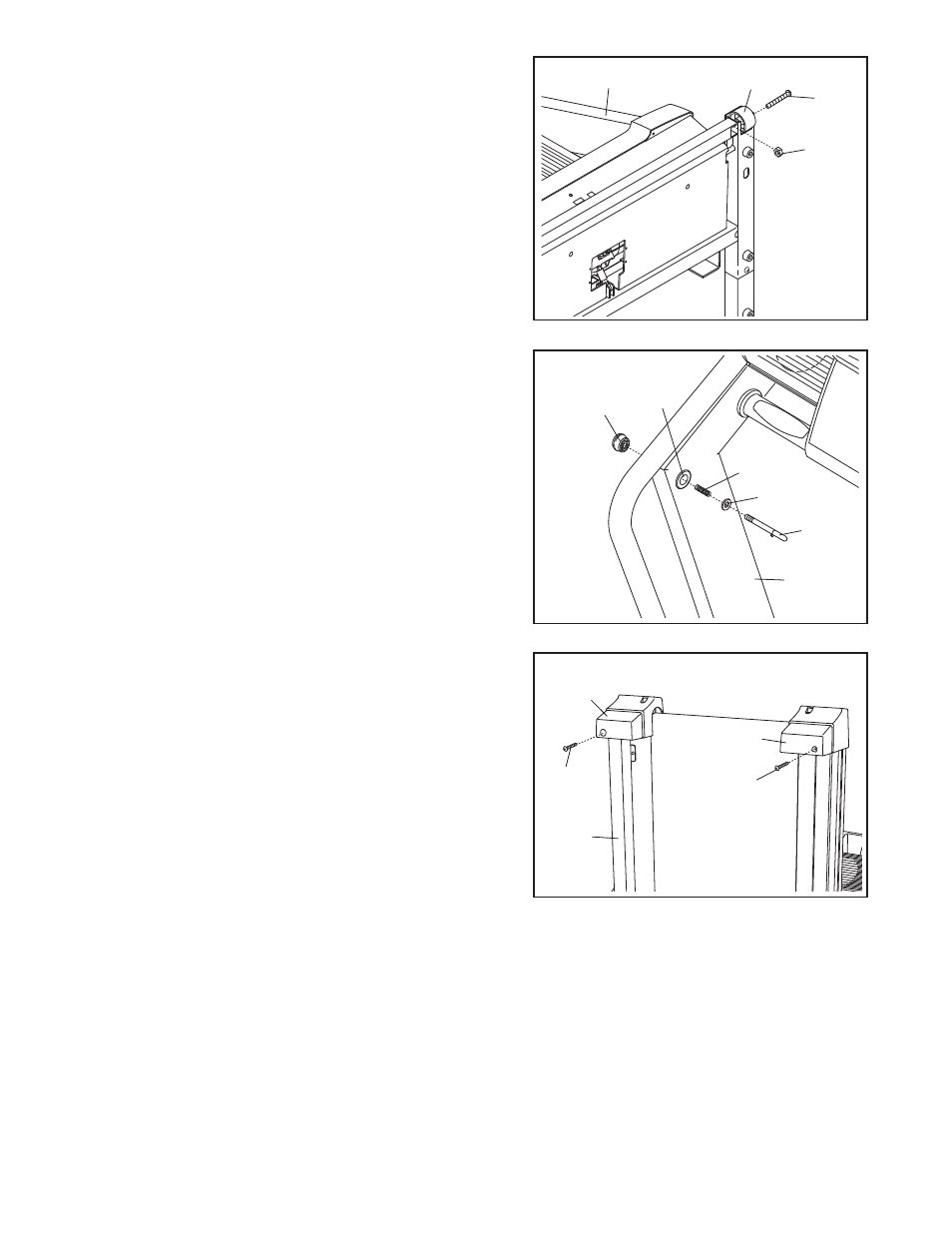

5. Attach a Wheel (95) to the base of the Uprights (69) with
a Wheel Bolt (94) and a Nut (20). Do not overtighten
the Wheel Nut; the Wheel should turn freely. Attach
the other Wheel (not shown) in the same way.
With the help of a second person, carefully raise the
Uprights (69) to a vertical position.
94
20
69 95
6. Press the Lock Knob Sleeve (56) into the left Upright (69).
If necessary, use a rubber mallet to fully insert the Lock
Knob Sleeve.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. Next, insert the pin into
the Lock Knob Sleeve (56) and the left Upright (69), and
tighten the knob back onto the pin.
Knob
Pin
56
69
Collar
Spring
5
6
7. Place the treadmill in the storage position (see HOW TO
FOLD THE TREADMILL FOR STORAGE on page 20).
Identify the Right Endcap Foot (50). Attach the Right
Endcap Foot to the bottom of the Right Endcap (58) with
a Foot Screw (74).
Next, attach the Left Endcap Foot (49) to the bottom of
the Left Endcap (96) with a Foot Screw (74).
Lower the treadmill Frame (110) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
49
50
74
110
74
7
