TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 10. Important: The treadmill is not com-
patible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.

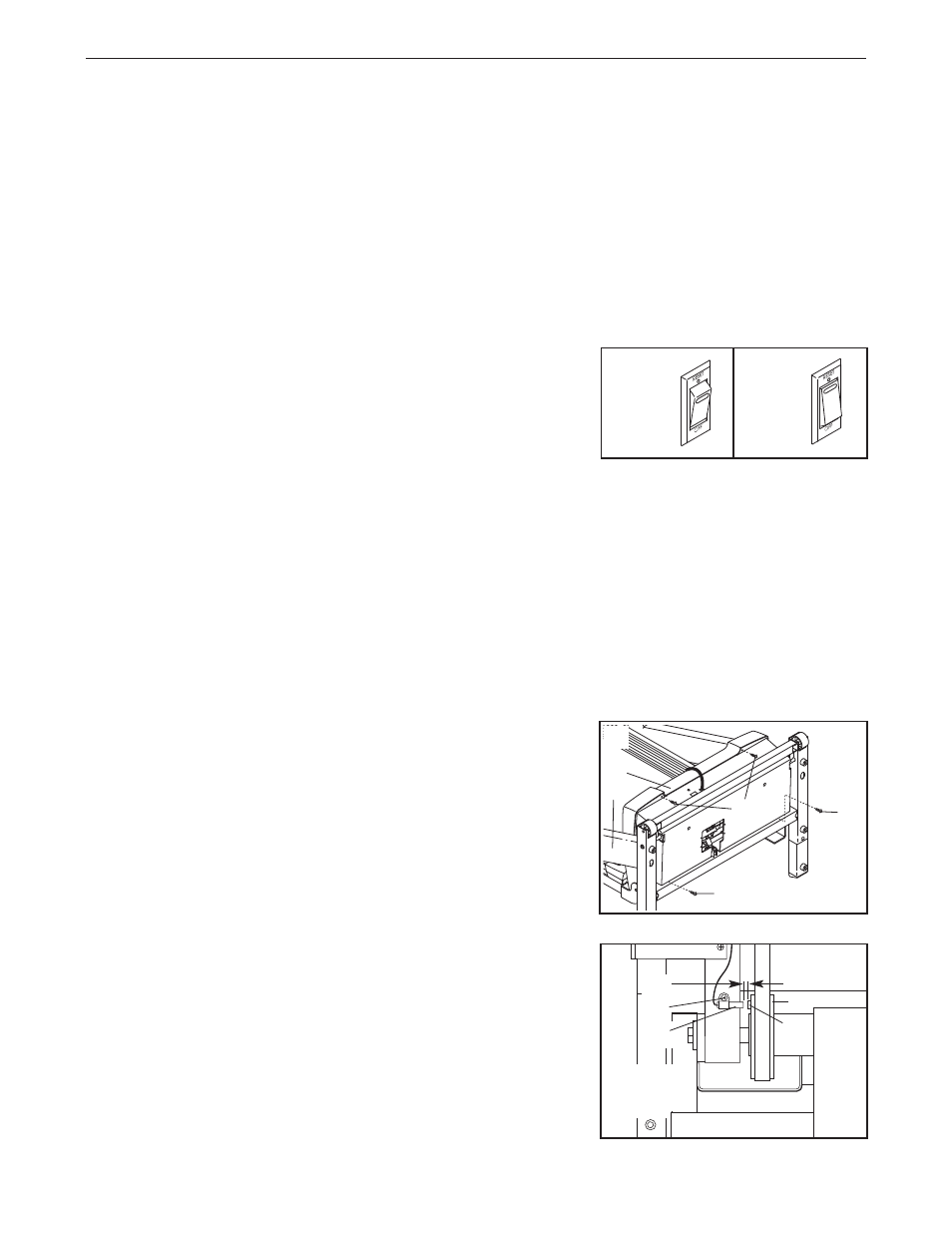

c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, see the front cover of this manual.
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Carefully tip the treadmill down as
shown at the right. Remove the 1” Screws (48) and
the 2” Screws (83) from the Hood (23). Then, raise
the Uprights (69) and carefully remove the Hood.
Next, locate the Reed Switch (10) and the Magnet (7)
on the left side of the Pulley (8). Turn the Pulley until
the Magnet is aligned with the Reed Switch.
Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8”. If necessary, loosen the
Screw (27), move the Reed Switch slightly, and then
retighten the Screw. Reattach the hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
83
23
69
48
48
a
22
Tripped
c
Reset
7 10
27
1/8”
8
Top
View
