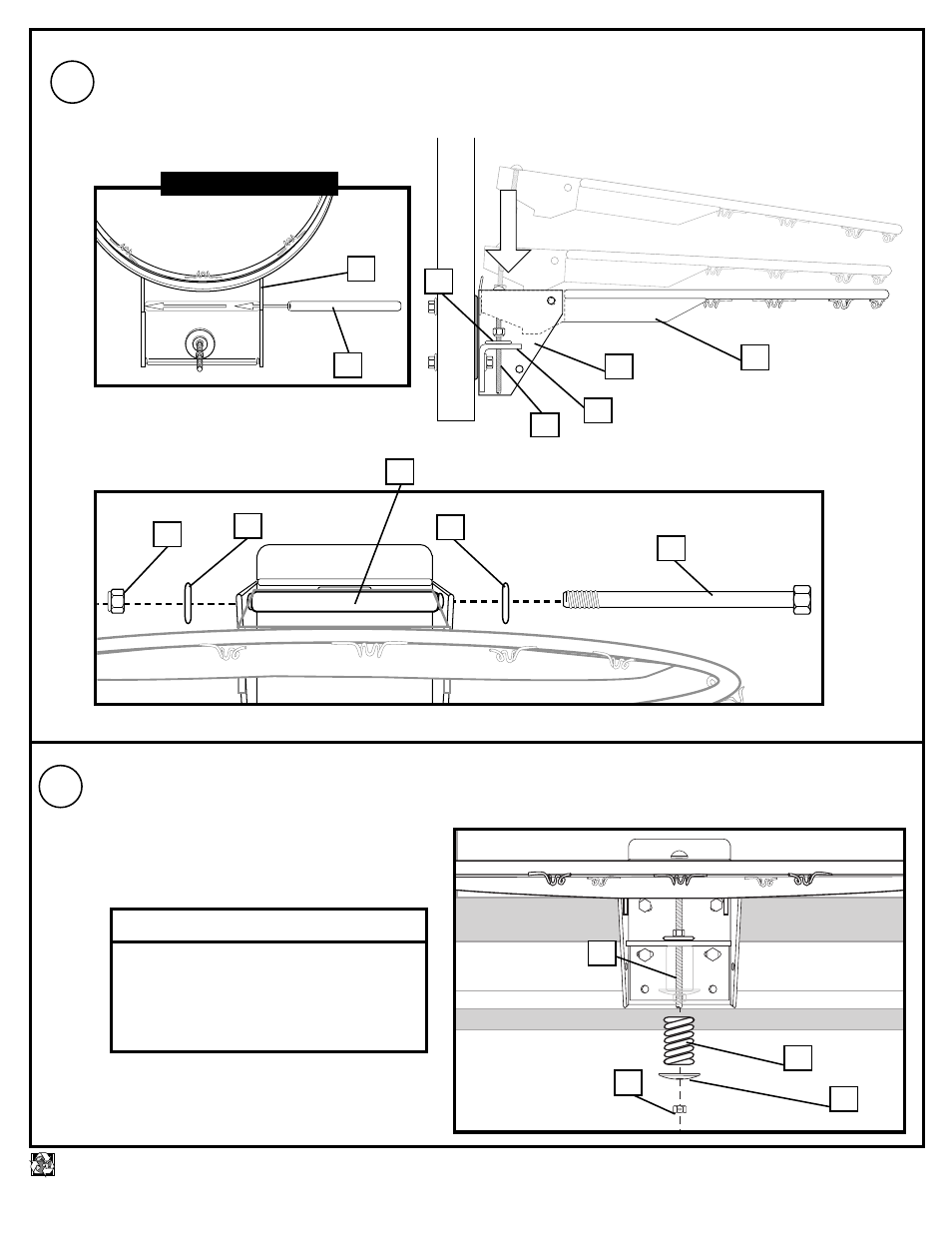

Insert spacer (40) through rim assembly (11). Place rim assembly on bracket (37) so the cariage bolt (39) is
inserted through hole on top of inner bracket (38). Install bolt (41), washers (36) and nut (31) through top holes
on bracket (37) as shown.Tighten completely.
Install rubber grommet (17), concave washer (18) and center lock nut (19) to bolt (39) as shown.
17
39
19
18
BOTTOM VIEW
40
11
39
15.
Do not over tighten as rim will not
flex properly. See leveling
instructions to determine how
much to tighten nuts (19) and (39).
NOTE
