6
P/N 211550A 07/01
12.
13.
11.

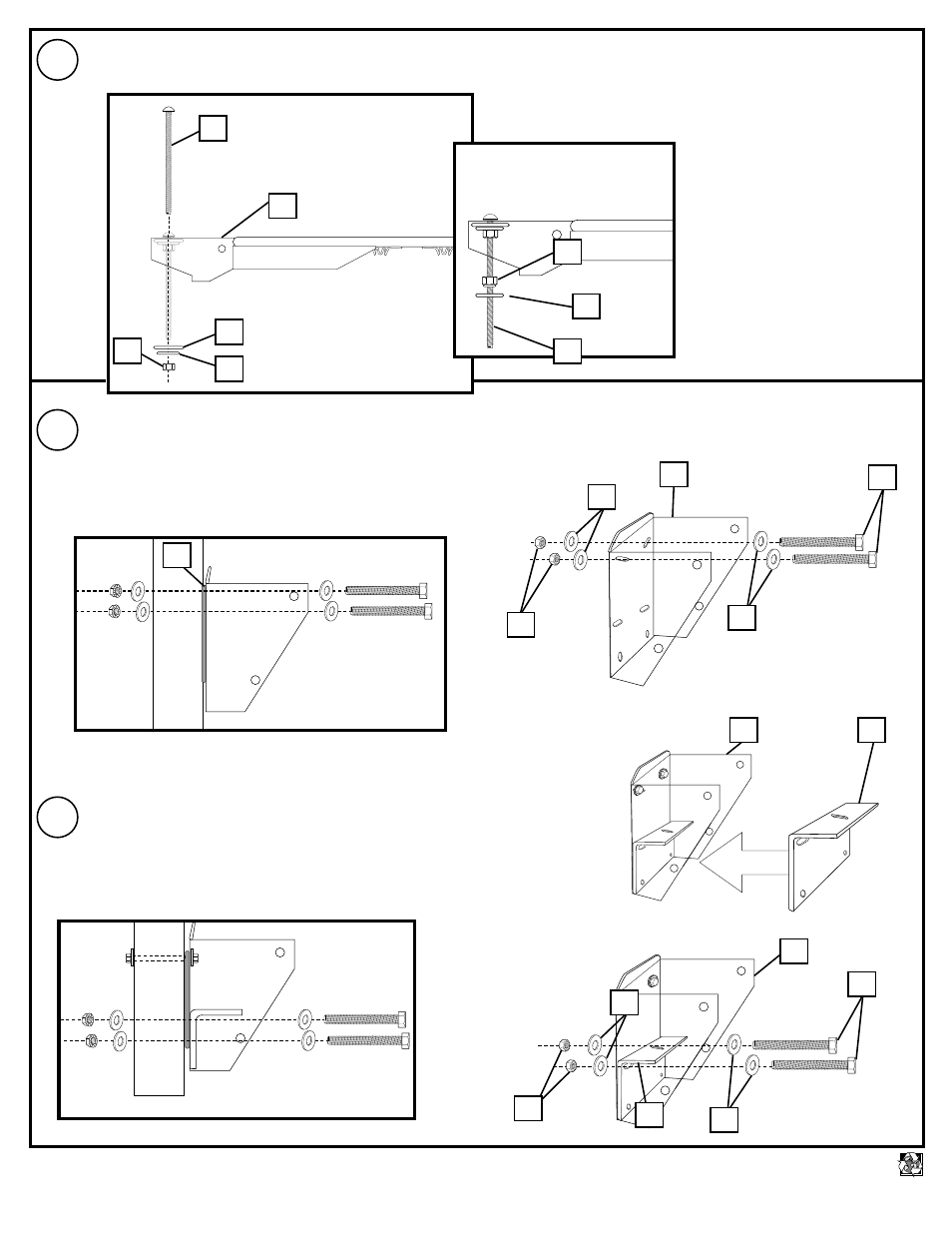

Attach bracket (37) to backboard and support structure
by inserting bolts (14) through washers (15) and top
holes in bracket (37), Tighten nuts (16) completely. Peel
and stick foam pad (12) to front of board, behind bracket
(37) .
Install carriage bolt (39) through rim (11), washers (27) and (36) as shown. Tighten nut (42) completely.
Place nylon lock nut (31) about half-way up carriage bolt (39) as shown.
14 37
15
16
15
38 37
11
27
39
36
42
37
16
38
15
31
39
36
Insert inner bracket (38) into bracket (37) as shown. Insert bolts (14)
through washers (15) and top holes of inner bracket (38) as shown,
Tighten nuts (16) completely.
14
15
12
