c. Insert small end of the connector into the pump.
(Fig 9)
d. Insert LED light into the water inlet attached to the
top of the fountain. (Fig 10)
e. Insert the large end of the connector into the water
inlet attached to the top of the fountain. (Fig 10)
NOTE: You must first slide the LED light through
the water inlet.
f. Place the fountain top; with pump attached, on the
fountain base. (Fig 11)
4. Set the assembled fountain top onto the metal stand.
Align cord so it runs down the Upper and Lower Legs
that contain the cord clips.
NOTE: You may need to carefully bend open the cord
clips to allow room for the cord to be inserted. Place
cord in clips to minimize appearance. (Fig 12)
5. Fill base with 50 oz. of clean water. Add enough water
so that the top of the pump is completely submerged.
(Fig 13)
6. Attach the A/C adaptor jack to the base power cord.
DO NOT plug into outlet at this time. (Fig 1)
7. Set the fountain on a level, waterproof surface.
8. Plug the cord into 120V household outlet. The
switch located on the power cord controls the
fountain. If pump doesn't operate, rotate in-line
switch once to turn “on” and once more to turn “off”.
Monthly maintenance will add to your pump's life.
NOTE: Ensure that the electrical cord loops below
the electrical outlet to form a 'Drip Loop' (Fig 14). This
will prevent water from running down the cord into the
electrical outlet.

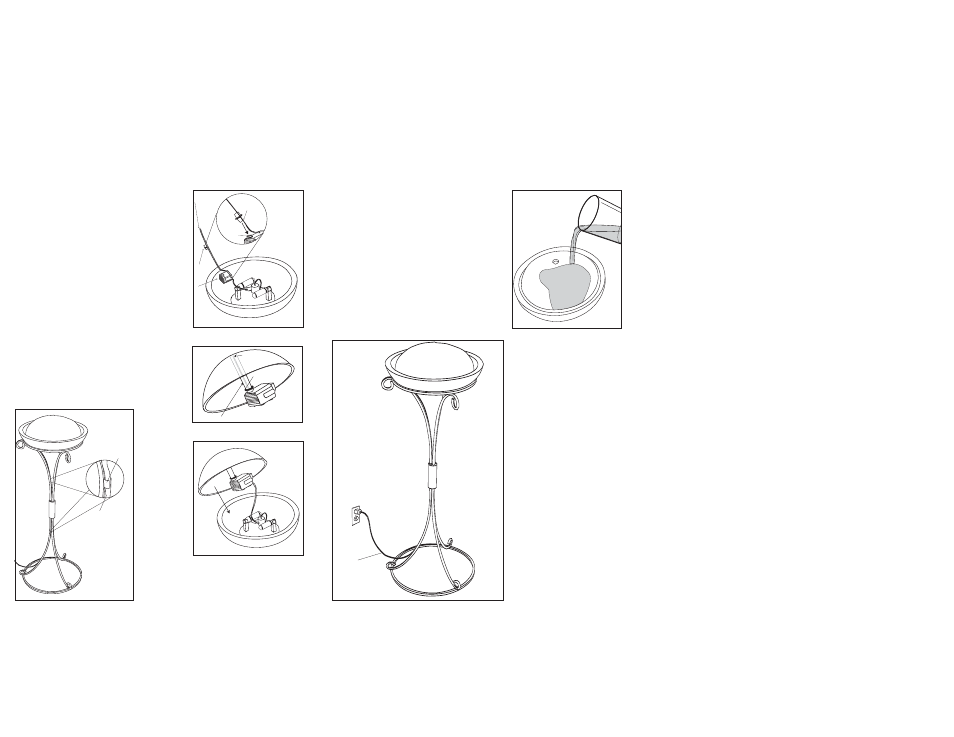

Figure 9 Figure 13
Figure 14
Figure 10
Figure 11
Figure 12
LED Light
LED Light
Small End
of Connector
50 oz Water
Connector
Connector
Pump
Pump
Base
Top
Water Inlet
Top
Base
Cord Clip
Cord
Drip Loop
9 8
