IntelliBase+
Dolphin Terminal Well Place the Dolphin in this well to communicate with a host device and to charge the Dolphin’s battery.
LEDs There are three LEDs on the front panel of the IntelliBase+.
1. Dock LED Turns solid green when the Dolphin Terminal is properly seated into the Dolphin HomeBase.
2. AUX Battery Indicates charging/calibration status of battery as described below:

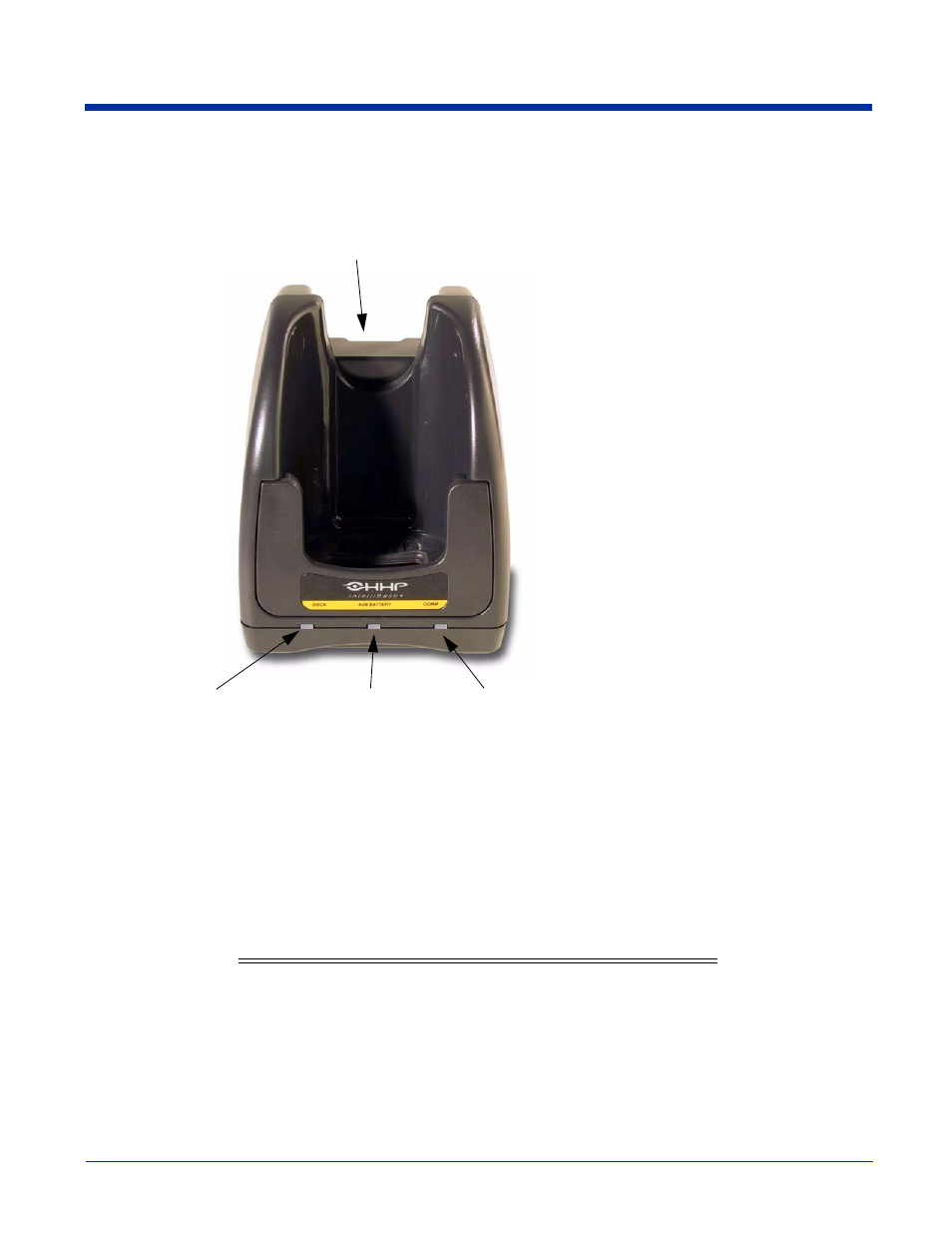

Front View of IntelliBase+
AUX Battery LED Description
Orange LED Solid indicates that battery pack is being
charged. Flashing indicates battery is being
conditioned.
Red LED Indicates faulty battery.
Green LED Indicates battery charged and ready for use
Terminal Well
DOCK LED AUX BATTERY
LED COMM LED
