6 - 2
Dolphin Charging/Communication Cradle Parts & Functions
Front Panel
HomeBase/IntelliBase/USB HomeBase
Dolphin Terminal Well Place the Dolphin in this well to communicate with a host device and to charge the Dolphin’s battery.
LEDs There are two LEDs on the front panel of the HomeBase/IntelliBase/USB HomeBase.
1. Dock LED Turns solid green when the Dolphin Terminal is properly seated into the Dolphin HomeBase.
2. COMM LED Indicates the status of data transfer between the Host Device and the Dolphin Terminal as described below:

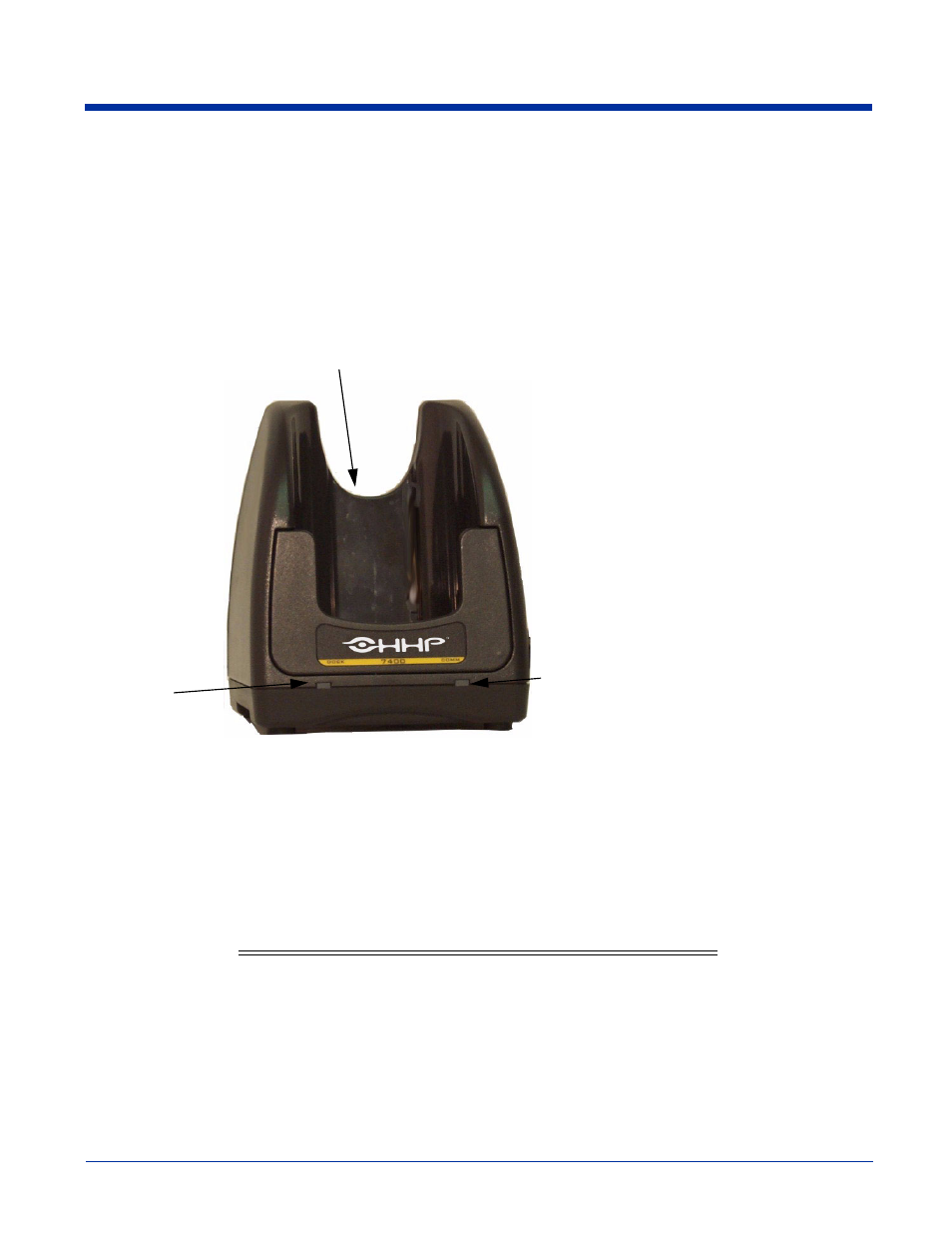

Front View of HomeBase/IntelliBase/USB HomeBase
Comm LED Description
Red LED Data is being sent from the Host Device to the
Dolphin HomeBase.
Green LED Data is being sent from the Dolphin HomeBase
to the Host Device.
Orange LED Data is being sent at high data rates.
DOCK LED
COMM LED
Terminal Well
