Healthrider HRTL61706.0 - Manual (Page 9)

9

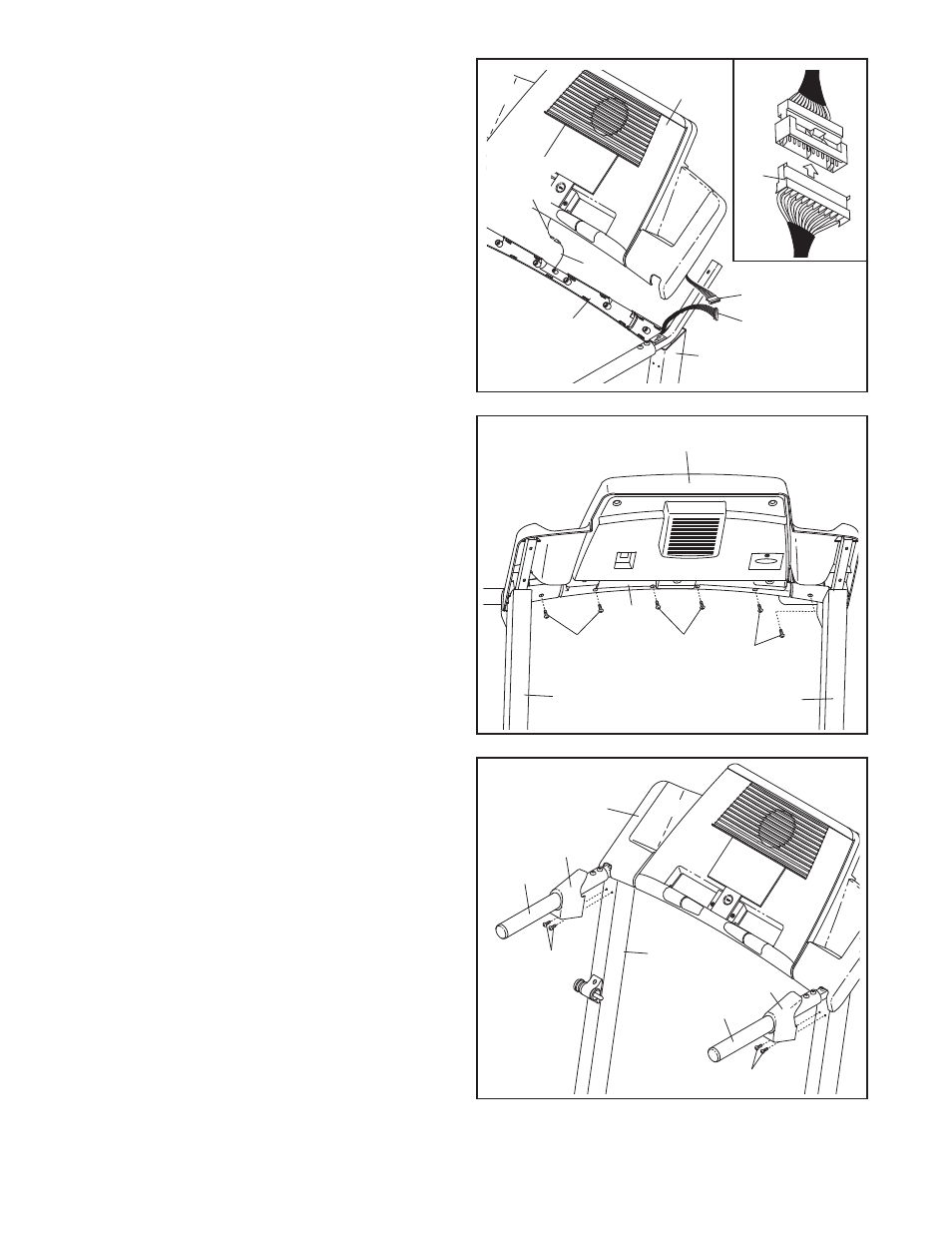

8. While a second person holds the console as-
sembly near the Pulse Bar (66), connect the
Ground Wire (107) on the Pulse Bar to the
ground wire from the console assembly.
Connect the wire from the console assembly to
the Upright Wire (75).
Make sure to connect
the connectors properly (see the inset draw-
ing). The connectors should slide together
easily and snap into place. If the connectors
do not slide together easily and snap into place,
turn one connector and then try again.
IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Lay the wires inside the bottom of the Pulse Bar
(66).
75
Console
Assembly
Wire
76
107
8
75
9. Set the console assembly on the Left and Right
Uprights (70, 76). Be careful not to pinch any
wires.
Attach the console assembly to the Pulse Bar
(66) with six 3/4" Screws (23).
Start all six
Screws, before tighten them yet.
23
Console Assembly
23
23
76
70
9
Ground
Wire
66
66
10. Identify the Left Handrail Cover (68), which has
a LEFT sticker on it. Slide the Left Handrail
Cover onto the left Handrail (62) and up against
the console assembly. Tighten two Cover
Screws (52) into the Left Handrail Cover and the
Left Upright (70);
be careful not to overtighten
the Cover Screws.
Attach the Right Handrail Cover (74) in the same
way.
Console
Assembly
52
68
70
74
52
10
62
62
