7

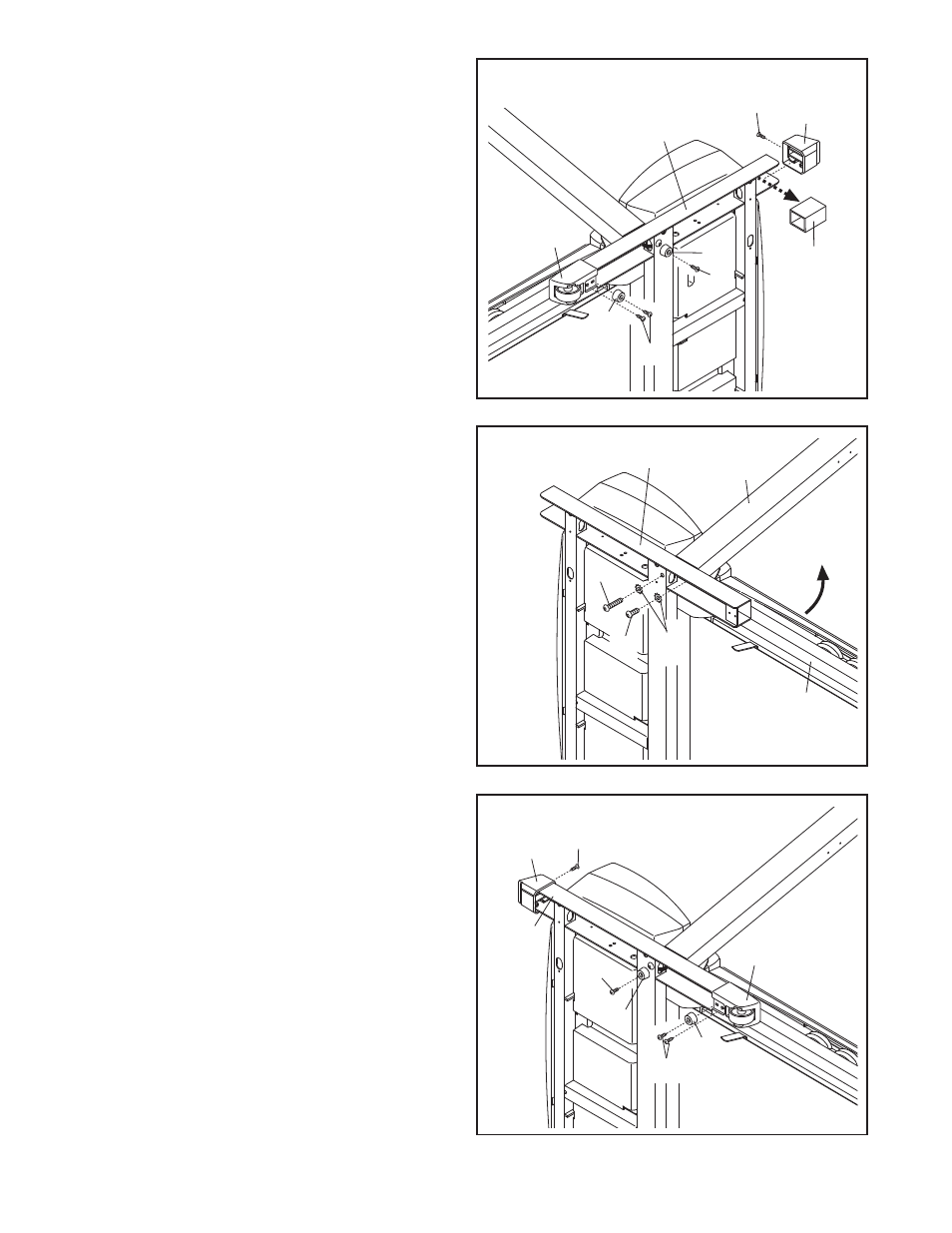

2. Remove the packing insert from the location
shown in each side of the Base (81) (only one
side is shown). If necessary, use a tool to help
pry out the insert. Then, discard the insert.
Slide a Front Endcap (80) onto the Base (81).
Partially tighten a Endcap Screw (79) into the
Front Endcap and the base.
Slide a Wheel Housing (86) onto the Base (81).
Attach the Wheel Housing with two 1" Tek
Screws (77) and a Base Pad (89) as shown.
Attach an additional Base Pad (89) to the Base
(81) with a 1" Tek Screw (77).
89
89
86
79
77
Insert
81
80
2
3. With the help of a second person, carefully tip
the treadmill onto its right side as shown.
Partially fold the Frame (26) so the treadmill is
more stable.
Do not fully fold the Frame until
the treadmill is completely assembled.
Hold the Left Upright (70) against the Base (81).
Then, thread a 2 3/4" Upright Bolt (85) and a 1"
Upright Bolt (84) with 3/8" Star Washers (83) into
the Base (81) and the bottom of the Left Upright
(70).
Do not tighten the Upright Bolts yet.
26
85
70
81
83
3
4. Slide a Front Endcap (80) onto the Base (81).
Partially tighten a Endcap Screw (79) into the
Front Endcap and the base.
Slide a Wheel Housing (86) onto the Base (81).
Attach the Wheel Housing with two 1" Tek
Screws (77) and a Base Pad (89) as shown.
Attach an additional Base Pad (89) to the Base
(81) with a 1" Tek Screws (77).
86
77
80
79
89
89
4
77
84
77
81
