5

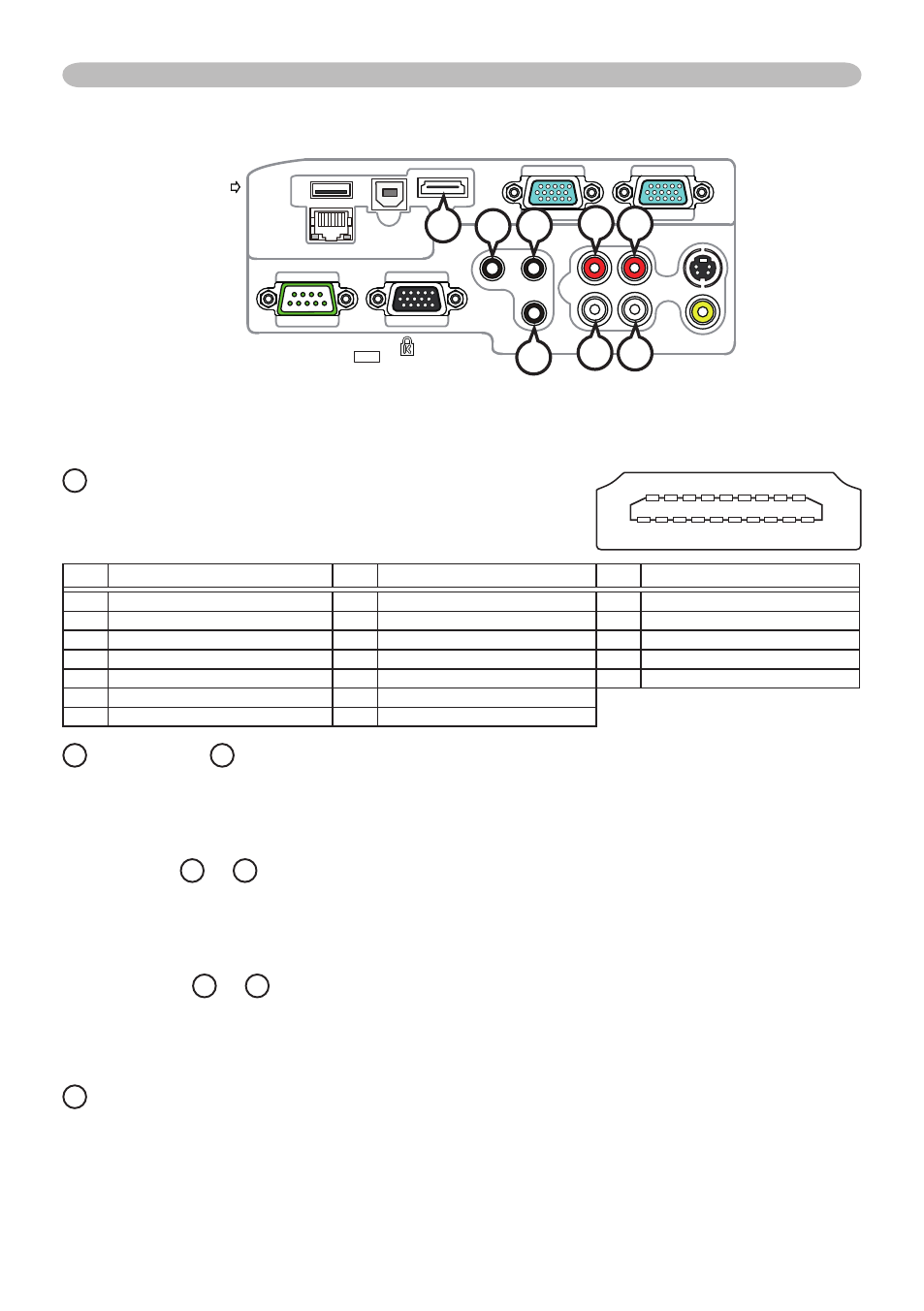

Connection to the ports (continued)
G AUDIO IN1, H AUDIO IN2
Ø3.5 stereo mini jack
• 200 mVrms, 47kΩ terminator
AUDIO IN3 I R, J L
RCA jack x2
• 200 mVrms, 47kΩ terminator
AUDIO OUT K R, L L
RCA jack x2
• 200 mVrms, 1kΩ output impedance
M MIC
Ø3.5 mono mini jack
• 2 mVrms, 1kΩ terminator
• 20 mVrms, 1kΩ terminator
F HDMI
• Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield 18 +5V Power
5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)
10 12 14 16 18 2 4 6 8
9 11 13 15 17 19 1 3 5 7
COMPUTER IN1 COMPUTER IN2 HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT AUDIO IN3 AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT CONTROL
USB
TYPE A
DC5V
0.5A
I
H
F
J
G K M
L
