D S-VIDEO
Mini DIN 4pin jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
Pin Signal
1
Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator
Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

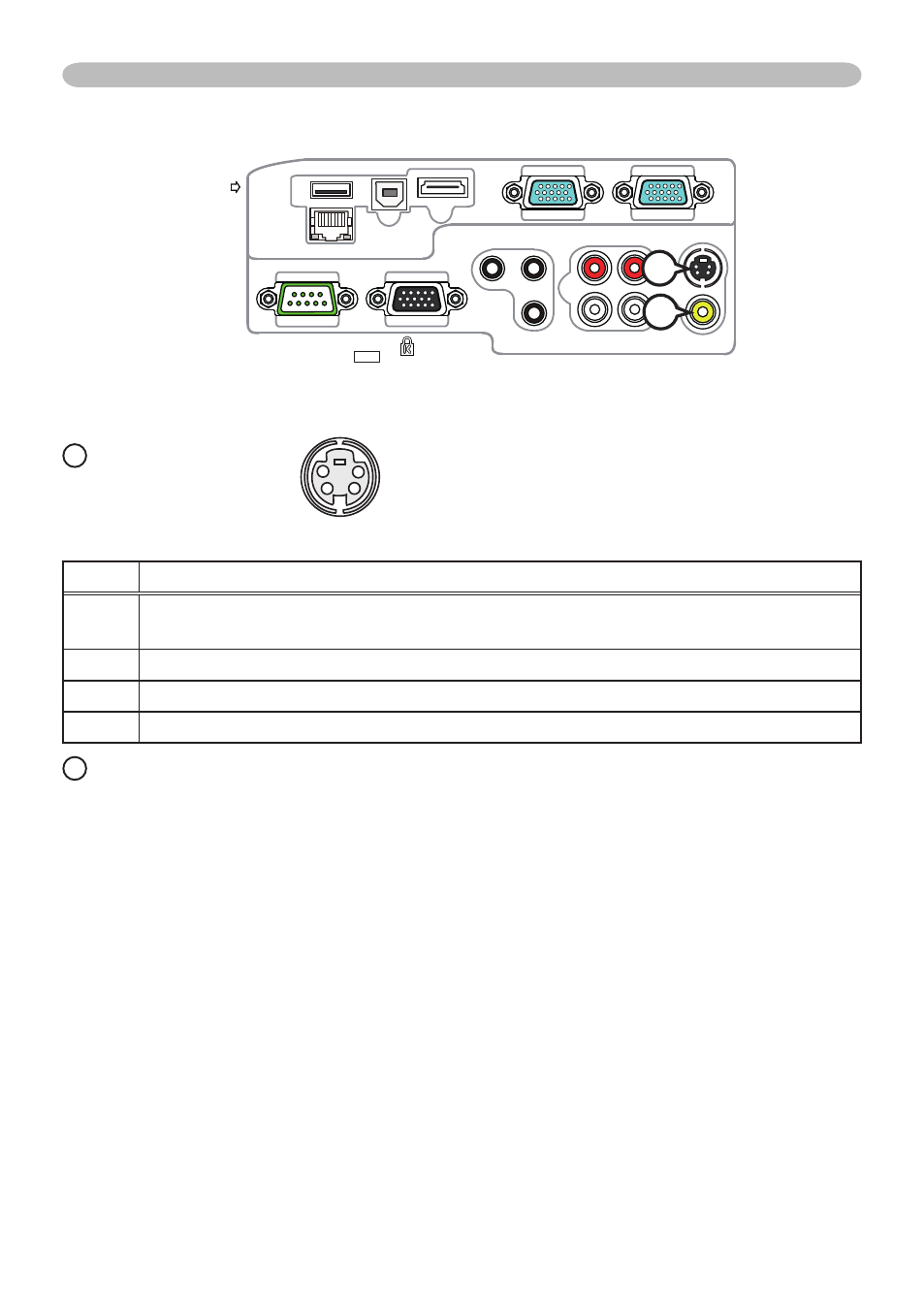

Connection to the ports (continued)
4 3
2 1
E VIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
• 1.0±0.1Vp-p, 75Ω terminator
COMPUTER IN1 COMPUTER IN2 HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT AUDIO IN3 AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT CONTROL
USB
TYPE A
DC5V
0.5A
