Hustler Turf Hustler Z - Manual (Page 21)

4-1 375527_0406
MAINTENANCE

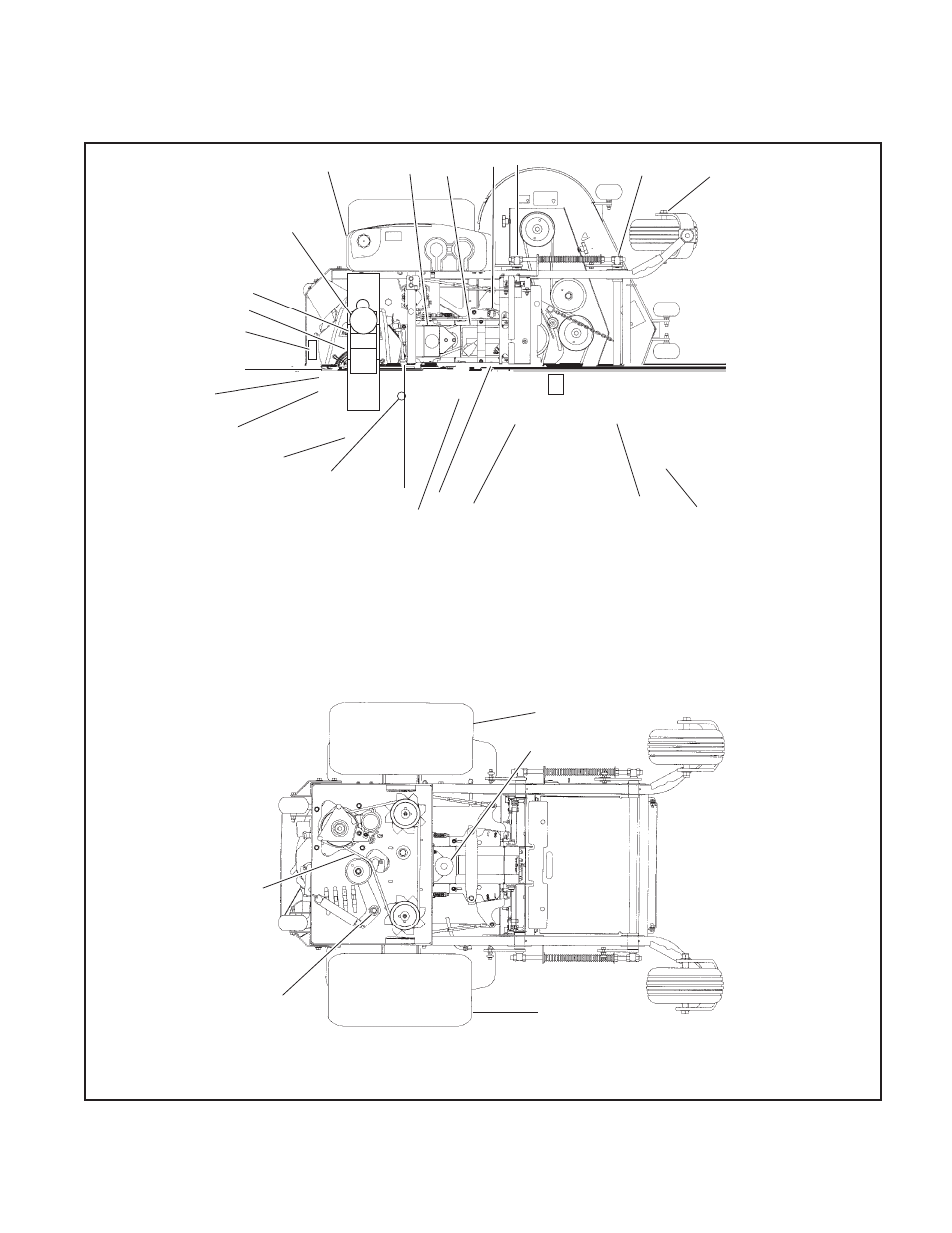

MAINTENANCE LOCATOR
CHART
1a. Engine Oil Fill & Dipstick
(Kawasaki & Honda)
1b. Engine Oil Fill & Dipstick (Kohler)
2a. Fuel Filter
2b. Fuel Filter (927053 & 927061)
2c. Fuel Filter (Kawasaki liquid cooled)
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Gauge Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch
13. Drive Tire
14. Pump Idler Zerk (1)
15. Pump Belt
16. Hydraulic Oil Heat Exchanger
17. Engine Coolant Fill
(Kawasaki liquid cooled)
6
10
2a
4
3
11
9
11
9
5
13
8
12
7
1a
6
12
11
11
Figure 4-1a
13
14
15
16
Viewed from bottom of tractor
1b
2b
2c
17
