IMPORTANT: When access is required under the seat
platform make certain to place the control arms in the
park brake position and pivot the arm rests upward
before placing the seat platform in the full forward
position to prevent arm rest damage.
Controls
For general location of the controls described in this
section, refer to Figure 3-1.
1. Ignition switch (Fig. 3-2a - 3-2b - 3-2c) – a three
position switch: off, run, and start. With key inserted,
rotate it clockwise to START position; release key
when engine starts, and switch will automatically
return to the RUN position.
2. Throttle control (Fig. 3-2a - 3-2b - 3-2c) — a cable is
linked to engine throttle for controlling engine speed.
Figure 3-2c
Ignition
switch
Throttle
Deck clutch switch
Oil pressure light
Choke
Temperature warning light
Charging system warning light
Figure 3-2b
Ignition
switch
T
Th
hrro
ottttlle
e
Deck clutch
switch
O
Oiill p
prre
es
ss
su
urre
e
lliig
gh
htt
C
Ch
he
ec
ck
k
e
en
ng
giin
ne
e
lliig
gh
htt
Kohler EFI
units only
Figure 3-2a
IIg
gn
niittiio
on
n
s
sw
wiittc
ch
h
T
Th
hrro
ottttlle
e
Deck clutch
switch
O
Oiill p
prre
es
ss
su
urre
e lliig
gh
htt
C
Ch
ho
ok
ke
e
375527_0406
3-1
OPERATION

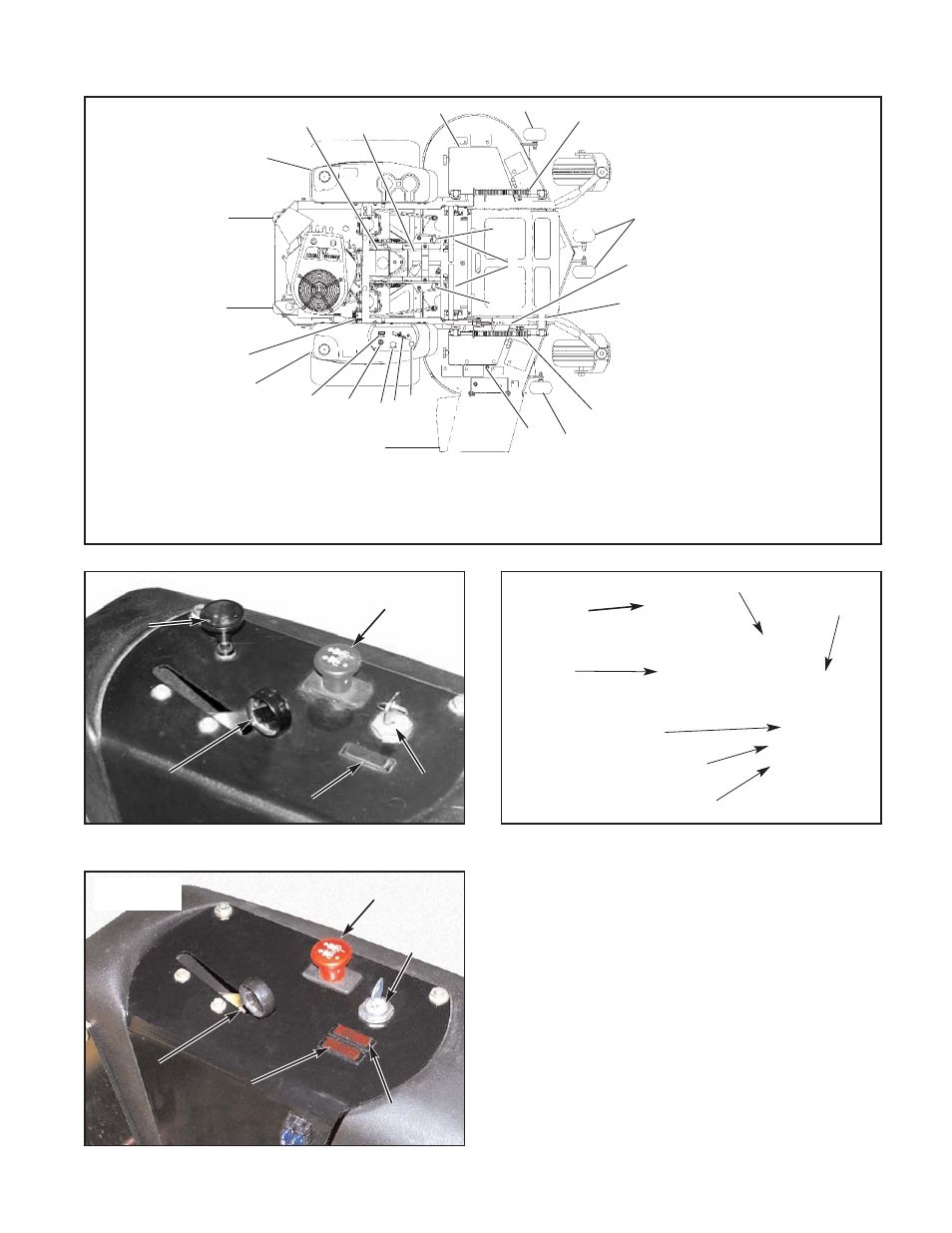

Figure 3-1
Hustler Z Controls
11
1
8
14
4 2
6
13
15
9
12
5
7
19
20
10
16
8
11
12
12
3
12
12
17
17
18
1. Ignition Switch
6. Hour meter
11.
Deck adjusting rod
16. Deck height indicator
2. Throttle lever
7. Oil Pressure light
12.
Anti-scalp wheels
17. Brake switch
3. Control levers
8. Fuel tanks
13.
Discharge chute
18. Choke lever
4. Deck clutch switch
9. Hydraulic reservoir
14.
Left deck cover
19. Temperature warning light
5. Deck lift pedal
10. Battery
15.
Right deck cover
Check Engine light (927053 & 927061)
20. Charging system warning light
Kawasaki liquid
cooled units only
