Page 12 — English

1

099963002900

Data Label ..................................................................................................................1

2

099963001902

Logo Label ................................................................................................................1

3

31101520G

Front Handle ...............................................................................................................1

4

099959001907

Warning Label ............................................................................................................1

5

3290205G

Hex Nut (M6) ..............................................................................................................1

6

3110482G

Clamp .........................................................................................................................1

7

3110282HG

Knob Screw (M6) ........................................................................................................1

8

099963001903

Logo Label .................................................................................................................1

9

333000346G

Edge Guide ................................................................................................................1

10 3290305G

Flat Washer ................................................................................................................1

11

3290675G

Lock Washer ..............................................................................................................1

12

3220811G

Screw (M4 x 16 mm) ..................................................................................................1

13 34101176AG

Spool Retainer ............................................................................................................1

14 31104178G

Spool Assembly .........................................................................................................1

15 31100176G

Grass Deflector ..........................................................................................................1

16

099963001904

Warning Label ............................................................................................................1

17 099963002901

Grass Deflector Label .................................................................................................1

988000444

Operator’s Manual

KEY

PART

NO. NUMBER

DESCRIPTION

QTY.

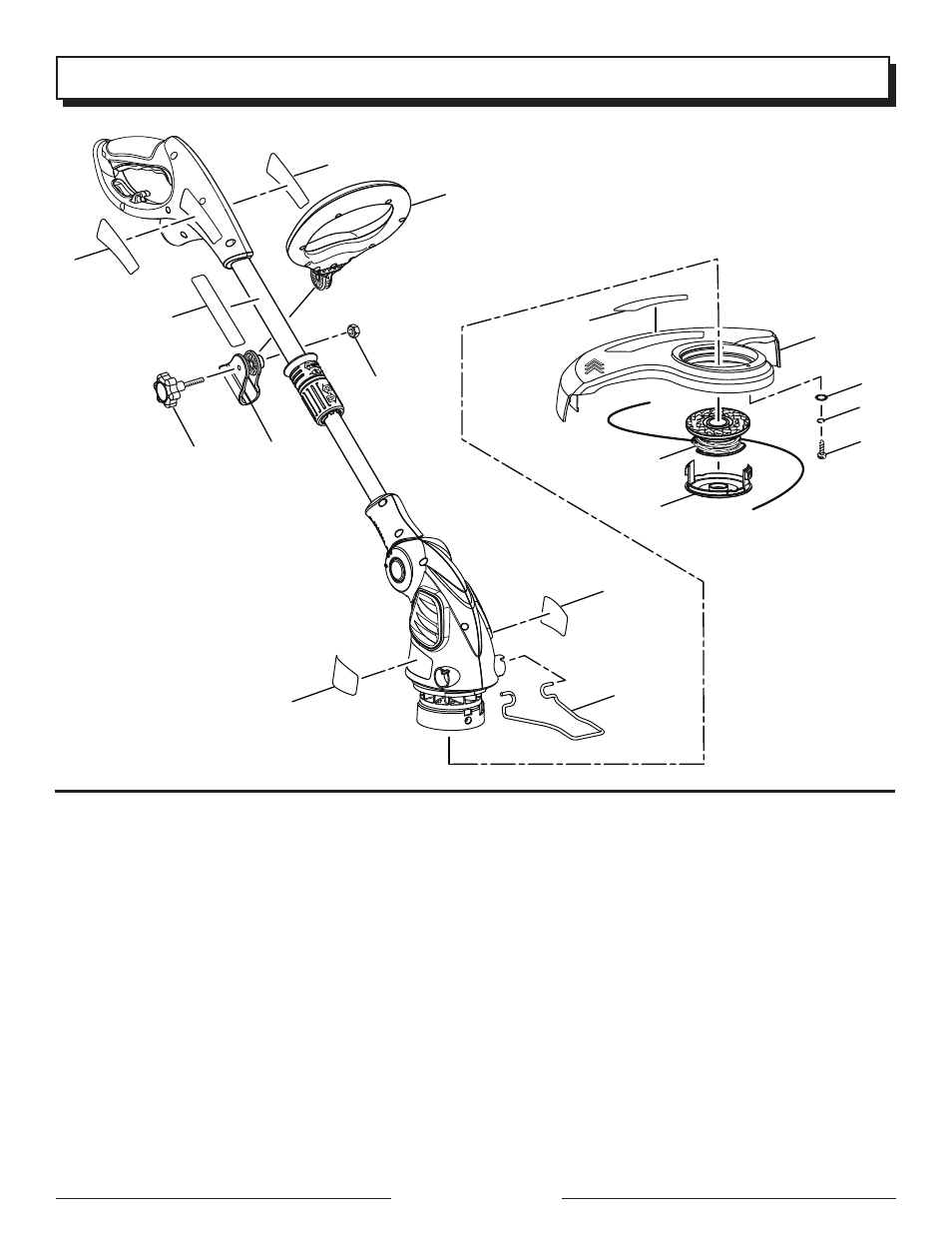

ILLUSTRATED PARTS LIST

1

2

3

4

7

16

8

9

6

5

15

17

10

11

14

13

12
