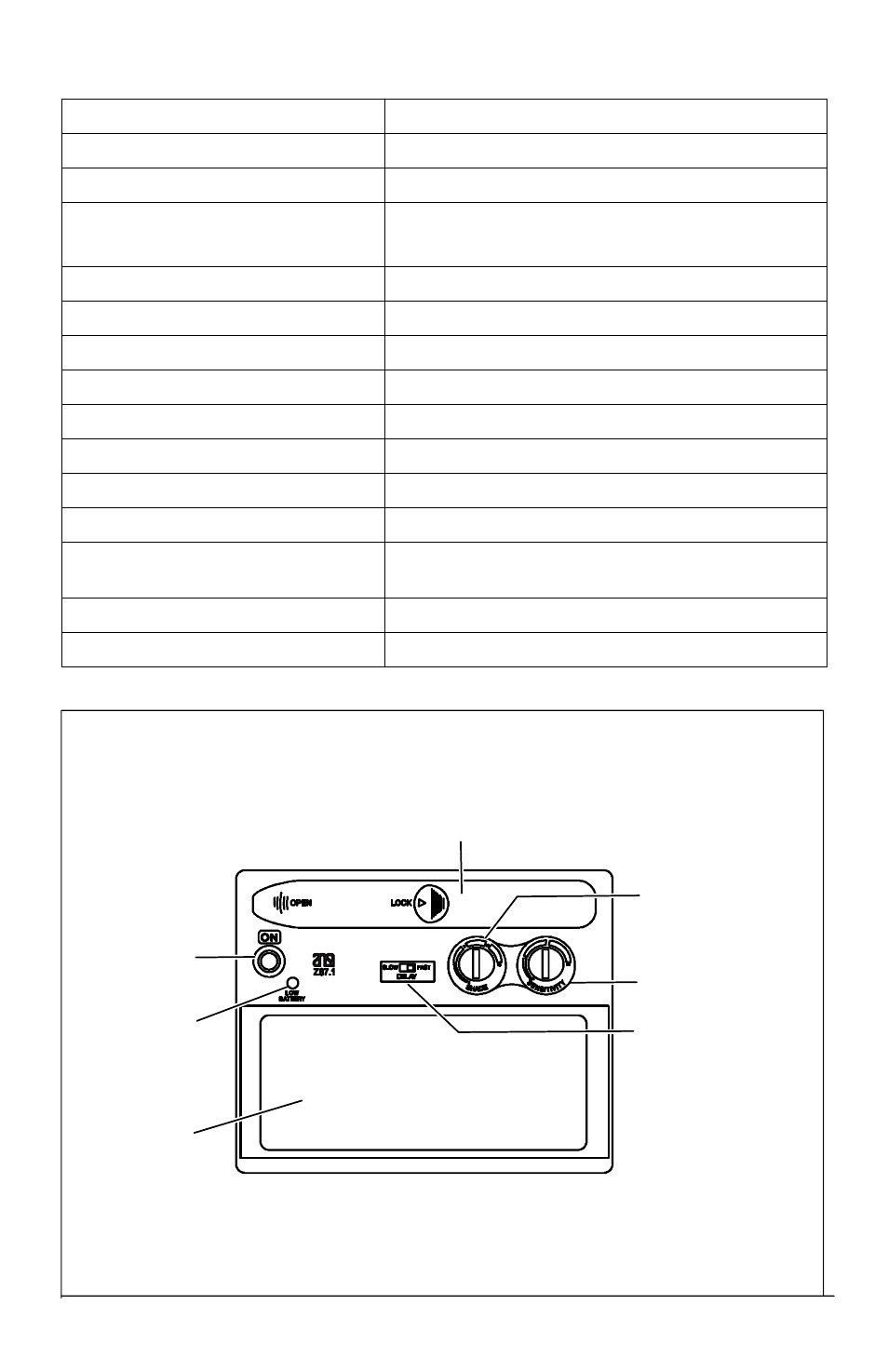

XTV Technical Specifications (#9 − #12 Variable Shade)

Cartridge Dimensions

4.33 x 3.54 x 0.39 in (110 x 90 x 10 mm)

Viewing Field

3.75 x 1.57 in (95 x 40 mm)

Reaction Time

0.000083 second (1/12,000)

Available Shades

ANSI: Darkened State: #9 − 12 / Light State: #4
CE/CSA: Darkened State: #9 − 13 / Light State: #4

Sensors

Independent/redundant (Two)

Operating Temperature

23_F to 131_F (−5_C to +55_C)

Storage Temperature

−14_F to 158_F (−10_C to +70_C)

Power Supply

2 AAA Alkaline batteries (included)

Total Weight

1 lb (454g)

Standards

ANSI Z87.1-2003 CE/CSA

Warranty

2 years from date of purchase (see Section 7)

Sensitivity Control light levels

Adjusts for varying ambient light and welding arc

Delay Control

Slows lens dark-to-light state between 0.1 and

0.5 seconds (fast/slow switch)

Automatic Power Off

Shuts lens off 15−20 minutes after last arc is struck

Low Battery Indicator

Red LED light illuminates to indicate low battery

Battery Compartment

(2 AAA Alkaline Batteries Included)

Shade Control

Sensitivity Control

Delay Control

Lens

Low Battery

Indicator

On/Off Button
