Hotpoint HDA3430ZWW - Manual

Created 8/97
HDA3430ZWW—Built-In Dishwasher

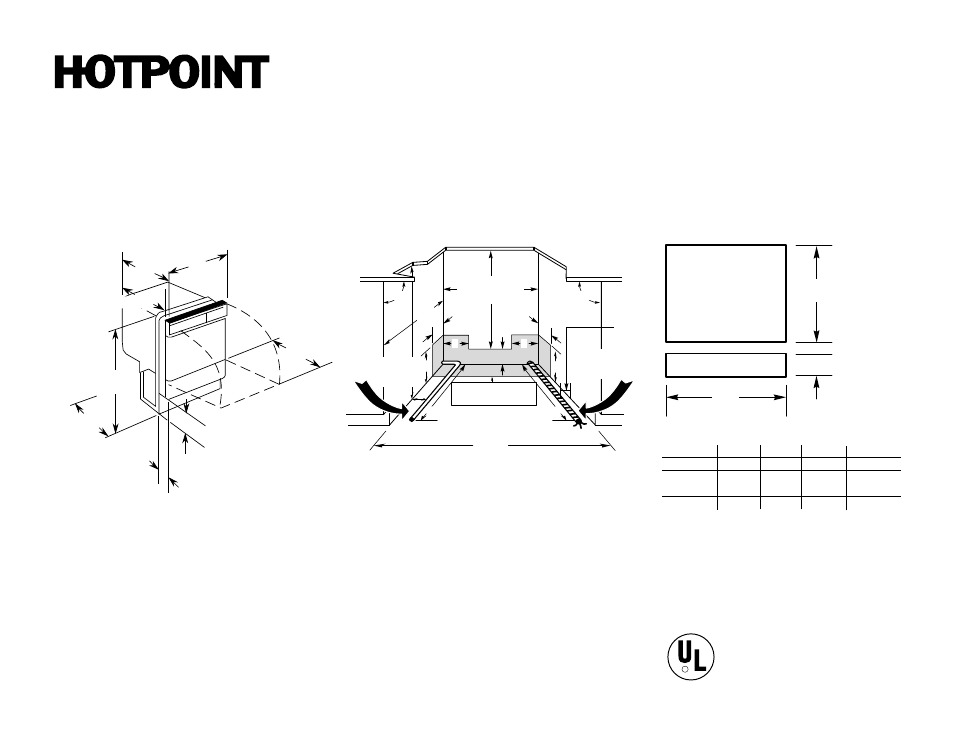

Dishwasher Dimensions (in inches) Wood Insert Cut-Out
Dimensions (in inches) Installation Information
(in inches)
Note: Dishwasher must not be installed more than 10' from sink
for proper drainage. All plumbing and electrical work must be in
accordance with local codes. Dishwasher includes drain hose
and leveling legs.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Electrical Rating
Voltage AC.......................................................120
Hertz ..................................................................60
Total connected load amperage.......................8.6
Calrod
® heater watts.......................................500
For use on adequately wired 120-volt, 15-amp
circuit having 2-wire service with a separate
ground wire. This appliance must be grounded
for safe operation. For answers to your Monogram, ® GE Profile
Performance Series, ™ GE Profile, ™ GE,
Hotpoint and RCA appliance questions, call
GE Answer Center
® service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
4 4
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24 25-1/8*
21-1/2*
3-1/4
4 (Adjustable)
34" MIN.
adj. to 35"
*Add 1/4" for
* rear insulation
23-3/8*
24-3/4
B
Access insert
Door insert
A
C
Panel
Models/Kits A B C Thickness
GPF325 Kit 18-7/8” 23-9/16” 3-11/16” 1/4”
4-1/4” to
GPF375 Kit 18-15/16” 23-5/8”* 3-3/4”** 3/4”
*Bottom of panel must be notched 1-1/2" x 1/2" to clear
across panel
**Adjustment required to match adjcent cabinets fronts due to
leveling leg adjustment, 4" nominal.
