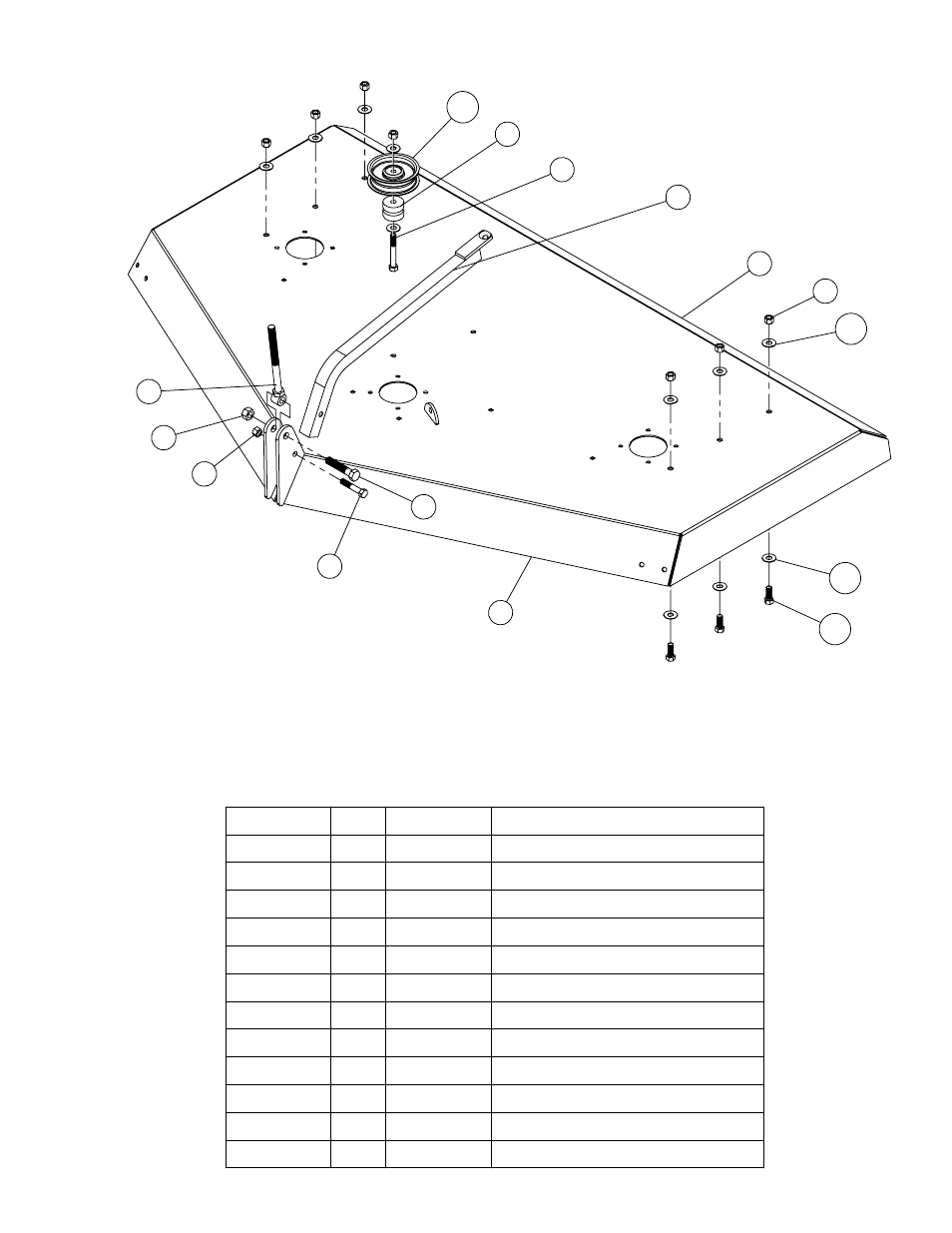

Deck Assembly

Parts List

1

10

9

8

11

12

11

5

6

1

2

6

7

3

4

ITEM NO. QTY. PART NO. DESCRIPTION

1

1 CYC3457 Mower Deck

2

1 CYC3495 Eyebolt

3

1 PUR1112 1/2" x 2-1/2" Bolt

4

1 PUR1261 1/2" Nylock Nut

5

1 PUR1145 3/8" x 2" Bolt

6

8 PUR1272 3/8" Nylock Nut

7

1 CYC3472 Motor Mount Support Bar

8

1 PUR1148 3/8" x 2-3/4" Bolt

9

2 CYC3479 Belt Idler Spacer

10

1 PUR1551 Idler Pulley

11

14 PUR0250 3/8" Flat Washer

12

6 PUR1140 3/8" x 1" Bolt
