Humminbird TCR ID-1 User Manual
Page 11
OTHER MOUNTING OPTIONS

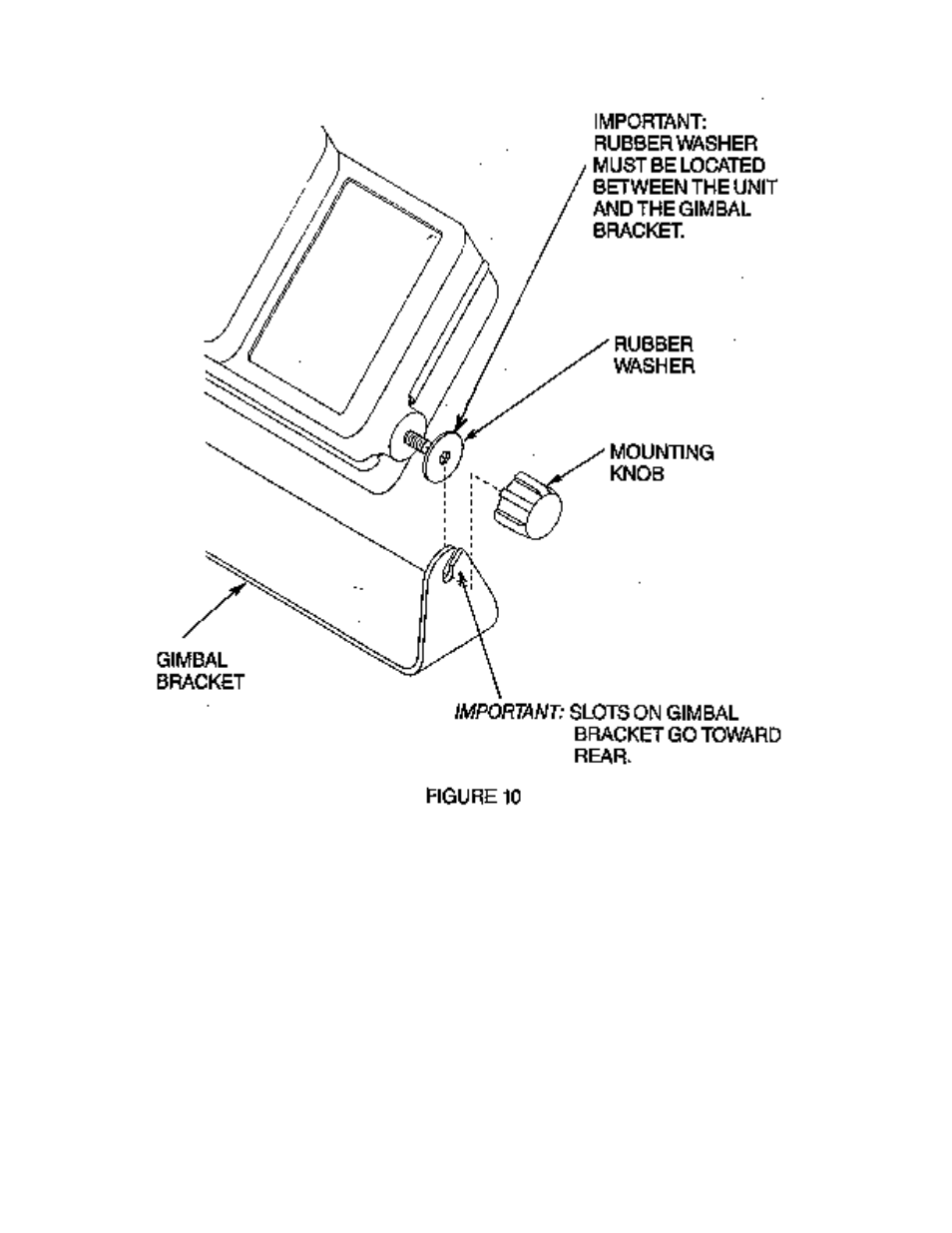

1. The LCR gimbal bracket can also be mounted on the SM-4, quick disconnect swivel
mount.
2. The LCR gimbal bracket can also be mounted directly to the dash without the swivel
mount, however, this method is not recommended since the unit cannot be rotated.
INSTALLING THE CABLES
Your LCR comes equipped with Humminbird’s new Angle-Lock power and transducer
connectors. The power connector is identified with the letter P on the back of the plug.
It plugs into the outlet on the back of the unit marked “Power”. The transducer connector
is identified with the letter T and plugs into the outlet on the back of the unit marked
