Heatilator • WHB/WTB Refractory • 4055-186 Rev C • 03/08

2

1. Shut off the electricity to the appliance and turn the gas

shutoff valve to the closed position. See Figure 1. Remove
the screen and glass from the appliance.

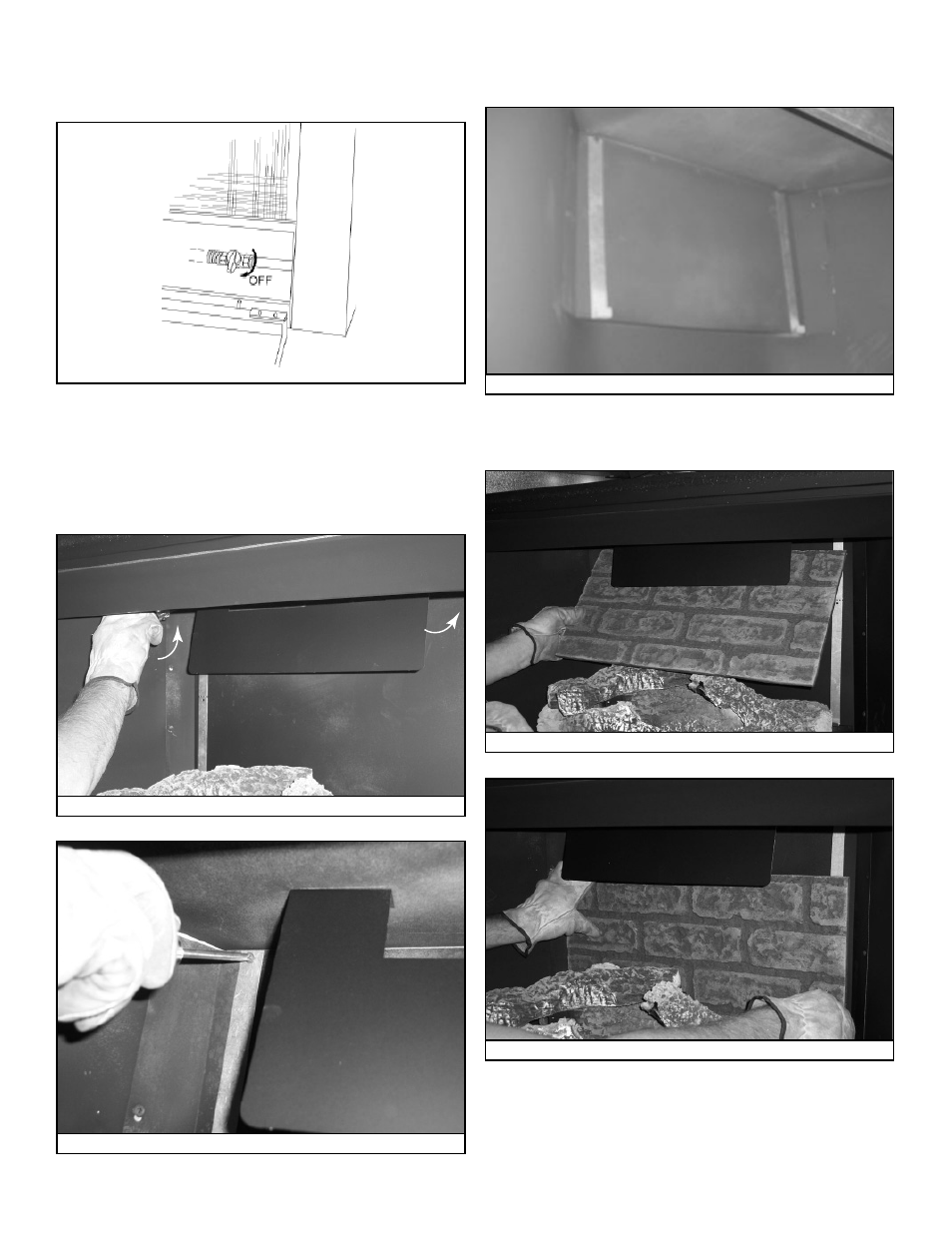

Figure 1 - Gas Shutoff Valve

2. If installing this refractory into a B-Vent Appliance, please

go to “To Convert Refractory Kit to Fit B-Vent Appliance”
on page 4 of this manual.

3. Attach the two long hook-shaped brackets by removing

the two outside screws on the false back and reinstall the
screws. See Figures 2 and 3.

Make sure to shorten the bracket if installing in a B-vent
unit. See Figure 4.

Figure 2

Location of Hook-Shaped Brackets

Figure 3

Loosen Brackets

Figure 4

Shorten Brackets for B-Vent Installation

4. Set the back refractory piece into the brackets. See

Figures 5 and 6.

Figure 5

Position Back Refractory for Placement

Figure 6

Set Back Refractory in Place
