HOOKUP CABLES
Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors.
For best performance, video cables should use 75-Ω coaxial shielded wire. Cables can be purchased from most stores that sell
audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output
and input connector types required by the various components and the length of each cable.

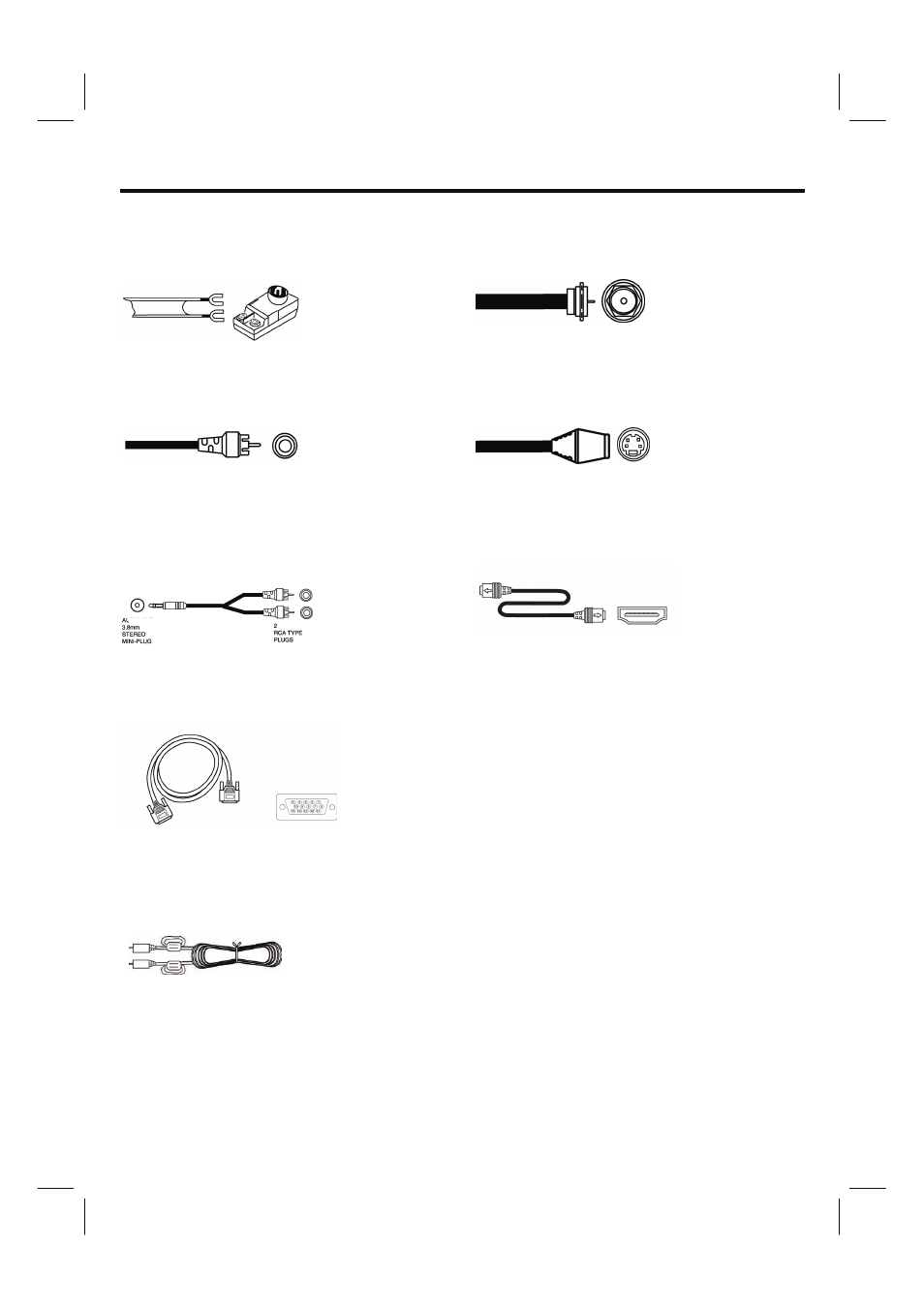

300-Ω Twin Lead Connector
This outdoor antenna cable must be connected to an antenna
adapter (300-Ω to 75-Ω).
“F” Type 75-Ω Coaxial Antenna Connector
For connecting RF signals (antenna or cable TV) to the antenna
jack on the television.
Phono Connector (Provided)
Used on all standard video and audio cables which connect to
inputs and outputs located on the rear jack panel. S-Video (Super Video) Connector (Provided)
This connector is used on camcorders, VCRs and laserdisc
players with an S-Video feature in place of the standard video
cable to produce a high quality picture.
Stereo Cable
This cable is used to connect from external audio out to the audio
input of the LCD TV (ex.
ANALOG RGB/HDMI Audio Input ).
HDMI Cable
This cable is used to connect your external devices such as
Set-Top-Boxes or DVD players equipped with an HDMI output
connection to the television’s HDMI input.
D-SUB MINI 15-Pin Cable (Provided)
This cable is used to connect a computer output to the D-SUB
input located on the rear panel of the LCD TV. The resolution
should be set correctly to display the signal on the LCD TV.
Subwoofer Cable
This cable is used to connect an external audio component input
to the subwoofer output of the LCD TV.
