Page 18
HA12W
Step 1 -
Unscrew your Wireless
Device’s Antenna
Unscrew the current antenna on the device
you plan to attach your Hi-Gain antenna to.
Step 2 -
Screw in your Hi-Gain Hawking
Antenna
Connect your new Hi-Gain Wireless Antenna
to your device by screwing on the SMA
connector attached to the end of the
Antenna Cable
Step 3 -
Position your Antenna
Choose the optimal position for your antenna (on the window, or your
wall...) and power on your wireless LAN.
Hi-Gain 12dBi Directional
Window Antenna
Network Specifications:
IEEE 802.11b/g
Electrical Properties
Frequency:
2.4~2.4835 Ghz
Impedence: 50 Ohms Nominal
Gain: 12dBi
Radiation: Directional
Polorization: Linear, Vertical
H-Plan:84º
E-Plan: 23º
Mechanical Properties
Connector: RP-SMA
Material Properties
Color:Ivory
Dimensions
:
327mm x 80mm x 22mm
Weight:
0.5 lbs (excluding cables and mounts)
Warranty
1 year
Hi-Gain 12dBi Directional Window Antenna
Specifications are subjet to change without notice. ©2007 Hawking Technologies, Inc. All Rights Reserved.
HAWKING TECHNOLOGIES, INC
USA: Irvine, California
Sales: 888.662.8828 or 949.790.0800
Fax: 949.790.0880
Email: [email protected]
Email: [email protected]
EUROPE: Rotterdam, The Netherlands
Sales: 31-10-245-1600
Fax: 31-(0)10-245 1616
Email: [email protected]
Email: [email protected]
RELATED PRODUCTS
Outdoor
HAC30N 30 ft. Outdoor N-Plug Hi-Gain
Antenna Cable
HAO9SIP Hi-Gain 9dBi Outdoor
Omni-Directional Antenna Kit
HAO9SDP Hi-Gain 9dBi Outdoor
Directional Antenna Kit
HAO14SDP Hi-Gain 14dBi Outdoor
Omni-Directional Antenna Kit
Indoor
HA12W Hi-Gain 12dBi Indoor Window
Antenna
HAO15SC Hi-Gain 15dBi Indoor Corner
Antenna
HAI7SIP Hi-Gain 7dBi Indoor
Omni-Directional Antenna
HAI7MD Hi-Gain 7dBi Compact Indoor
Directional Antenna
H
W

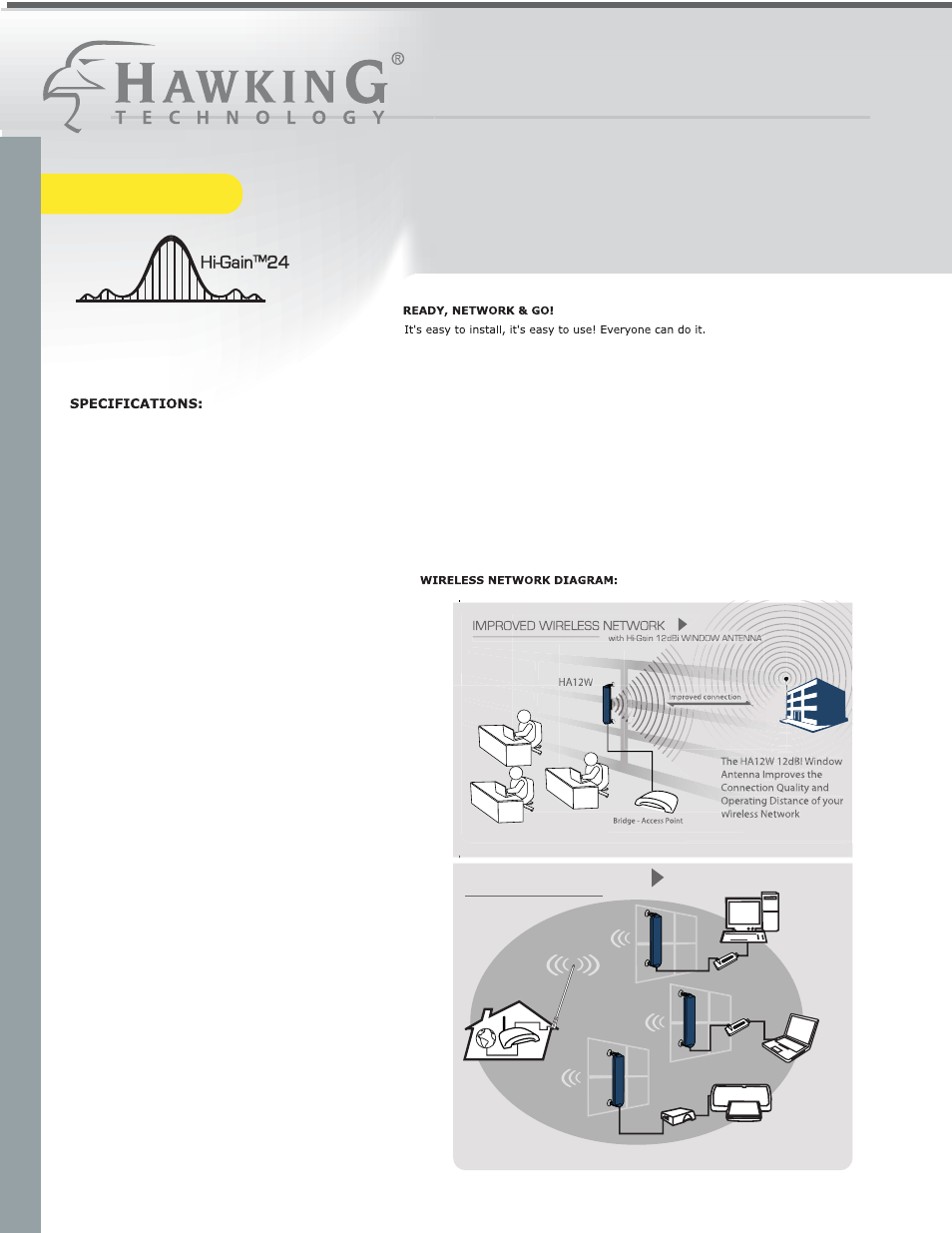

NETWORK DIAGRAM
Printer
Laptop with
HA12W antenna
and the HWUG1
USB Wireless
Adapter
Desktop
Desktop with
HA12W antenna
and the HWUG1
USB Wireless
Adapter
HA12W Window Antenna with a
Hawking Wireless Print Server
Wireless Router/AP
and/or
Internet Modem
with the
Hawking Hi-Gain
HAO9SIP
