— 15 —
English

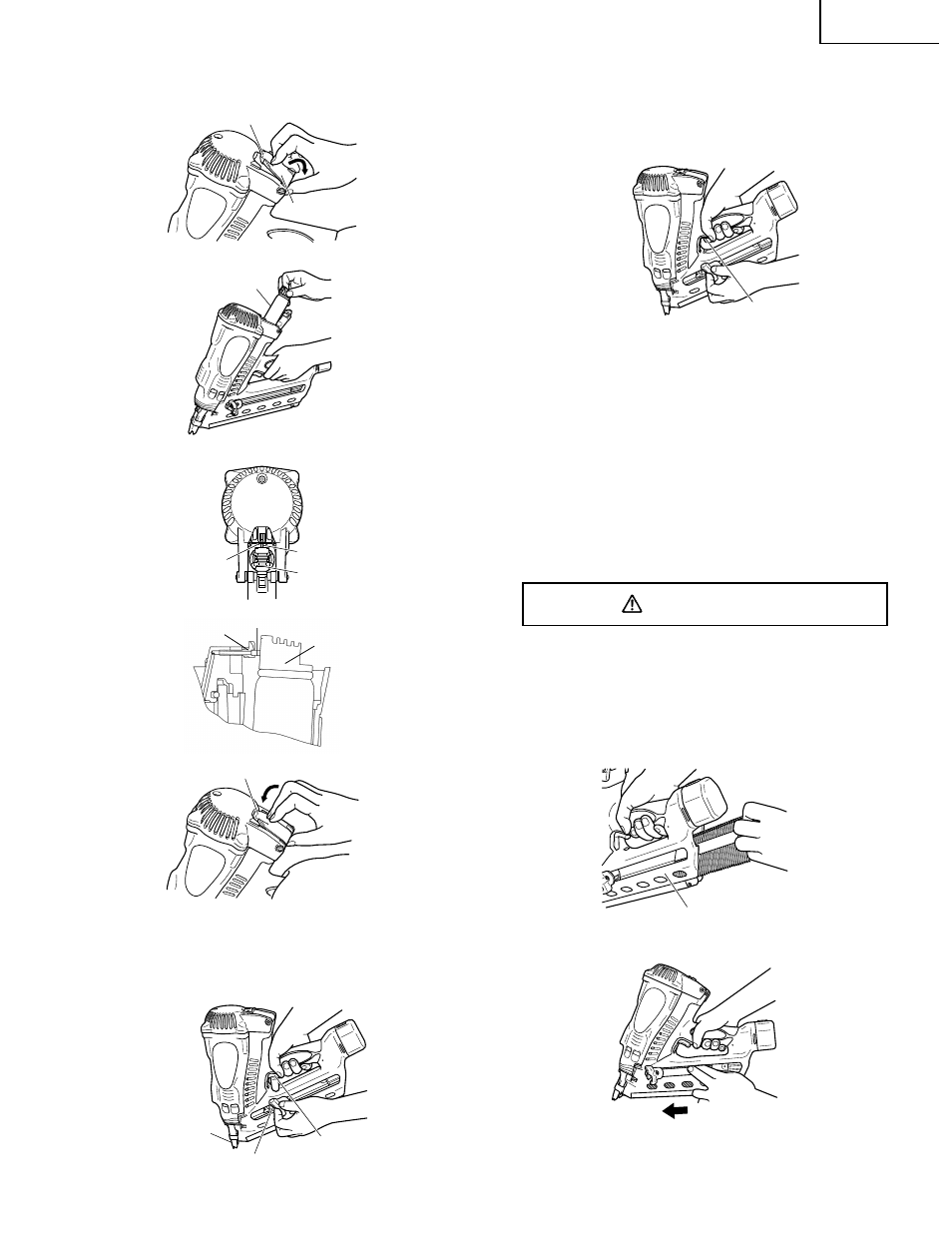

(3) INSERT FUEL CELL INTO NAILER.
1 Pulling the latch and open the cell cover.
2 Insert the fuel cell into nailer.
3 Insert the stem of fuel cell into the hole of adaptor.
4 Close the cell cover.
(4) Remove the finger from the trigger and press the push
lever against the workpiece with pulling back the
feeder knob.
Ⅺ THE NAILER MUST NOT OPERATE.
(5) Separate the push lever from the workpiece.
Next, point the nailer downward, pull the trigger and
then wait in that position for 5 seconds or longer.
Ⅺ THE NAILER MUST NOT OPERATE.
(6) Without touching the trigger, depress the push lever
against the workpiece.
Pull the trigger.
Ⅺ THE NAILER MUST OPERATE.
(7) If no abnormal operation is observed, you may load
nails in the Nailer.
Drive nails into the workpiece that is the same type to
be used in the actual application.
Ⅺ THE NAILER MUST OPERATE PROPERLY.
LOADING NAILS
WARNING
ⅷ When loading nails into Nailer,
1) do not depress trigger;
2) do not depress push lever; and
3) keep Nailer pointed downward.
2–Action Nail Feeding!
(1) Insert nail strip into the back of the magazine.
(2) Slide the nail strip forward in the magazine.
Fuel cell
Stem
Fuel cell
Adapter
Cell cover
Pull trigger
Magazine
Latch
Cell cover
Adapter
Stem
Fuel cell
Depress
push lever
Feeder knob
Do not pull trigger
