BOLT (M)
120 mm
Qty: 4 ARC WASHER (K)
17 mm
Qty: 4

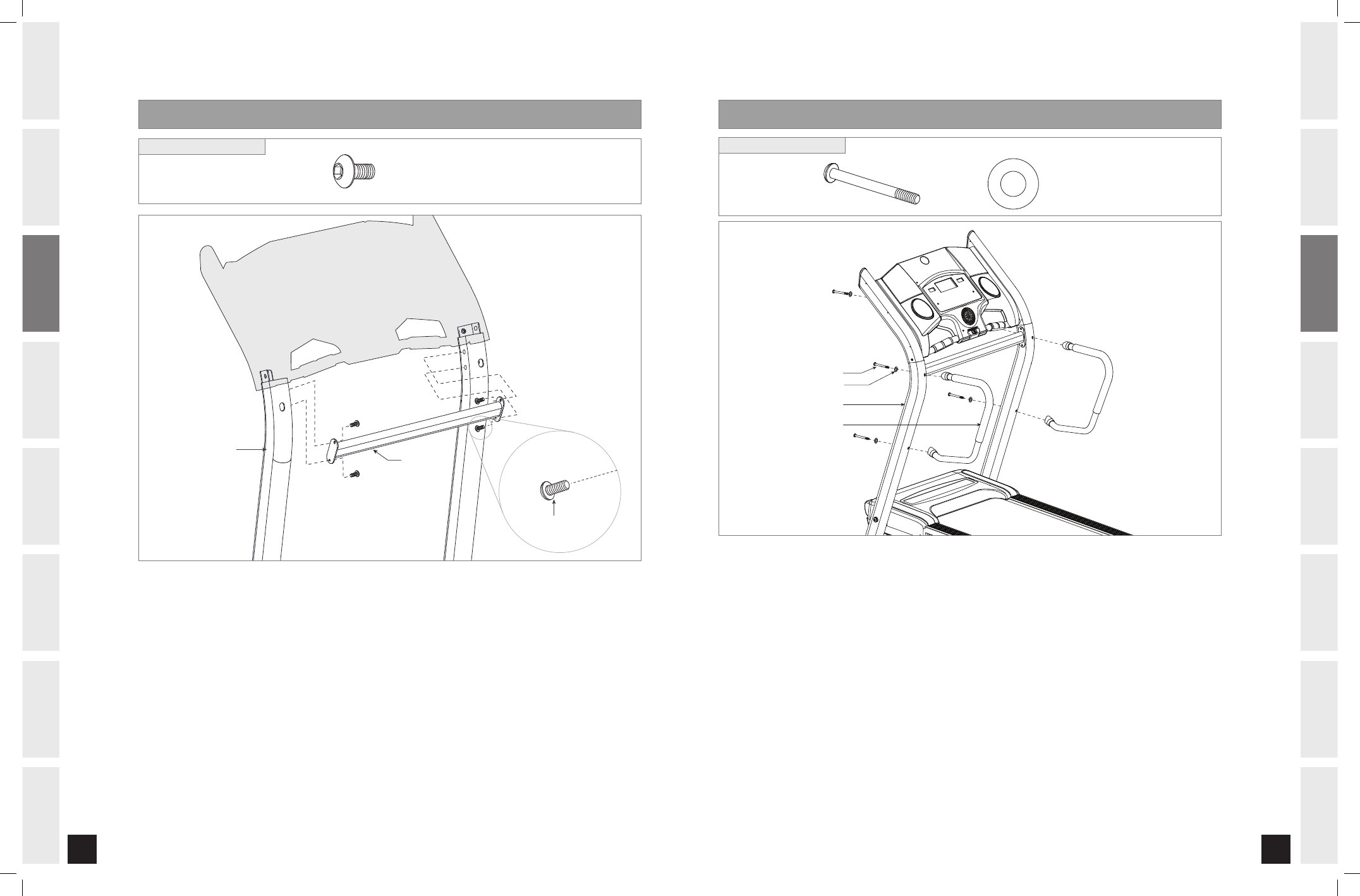

ASSEMBLY STEP
ARC WASHER (K)
BOLT (M)
CONSOLE MAST
HANDLEBARS
HARDWARE BAG CONTENTS :
A Open HARDWARE BAG .
B Attach LEFT HANDLEBAR to CONSOLE MAST using 2 BOLTS (M) and 2 ARC WASHERS (K).
NOTE: Look into holes before inserting bolt to prevent cables from
being damaged.
C Repeat on other side.
ASSEMBLY STEP
BOLT (L)
SUPPORT BAR
CONSOLE MAST
BOLT (L)
15 mm
Qty: 4
HARDWARE BAG CONTENTS :
Open HARDWARE BAG .
Align SUPPORT BAR with holes in CONSOLE MASTS.
Insert BOLTS (L) into all 4 holes of the SUPPORT BAR.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
Tighten all console bolts (Step 3) and support bar bolts (Step 4) completely.
A.
B.
C.
D.
