Horizon Fitness 3.1E - Manual (Page 10)

10
8
1
A
2
B
3
G
J
U
B
C
4
F
K
H
7
G
R
T
S
E
I
5
D
L
Q
Q
6

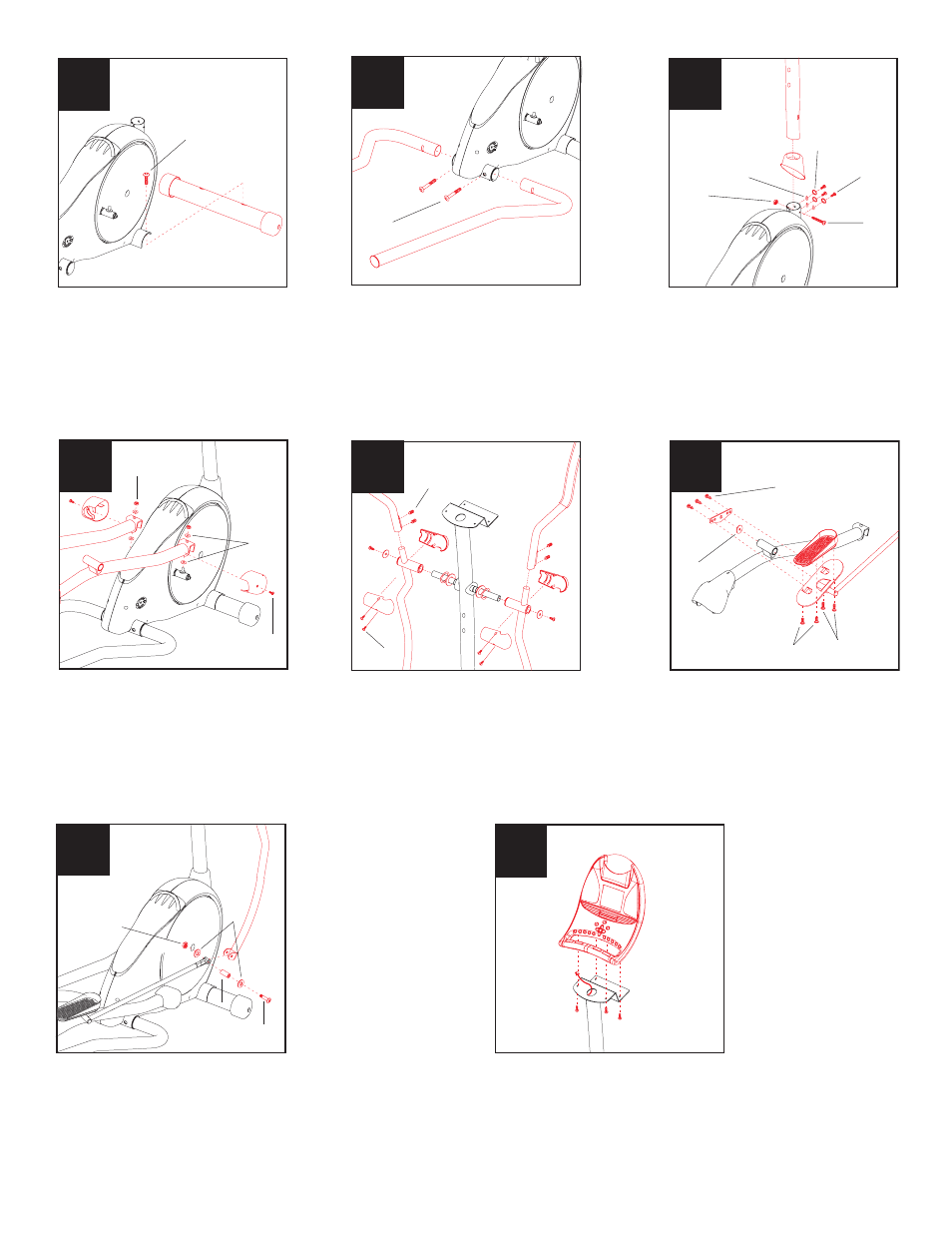

STEP 1:
ATTACH FRONT TUBE.
Note: Make sure not to tighten
bolts until all assembly steps have
been completely assembled and
aligned. STEP 2:
ATTACH LEFT & RIGHT GUIDE
RAILS. STEP 3:
ATTACH CONSOLE MAST AND
CONSOLE MAST BOOT.
Note: Make sure to loosen the
water bottle screws in order to fit
the console cable through the
mast. DO NOT PINCH WIRES!
STEP 4:
ATTACH LEFT & RIGHT PEDAL
ARMS AND PEDAL ARM
SLEEVES.
Note: Black ‘Teflon’ surface of K
should be facing the pedal arm. STEP 5:
ATTACH LEFT & RIGHT LOWER
HANDLE BARS TO CONSOLE
MAST. ATTACH LEFT & RIGHT
UPPER HANDLE BARS. ATTACH
H-BAR COVERS. Note: Bolts and
washers are pre-assembled. STEP 6:
ATTACH FOOT PAD TO FOOT
PLATE THEN CONNECT THE
PIVOTING FOOT PAD.
STEP 7:
ATTACH LEFT & RIGHT LINK ARMS TO LOWER LEFT
& RIGHT HANDLE BARS. STEP 8:
ATTACH CONSOLE AND CONNECT ALL WIRES.
Note: DO NOT PINCH WIRES!
Note: Bolts are pre-assembled to console.
