12 SETUP AND CONNECTIONS
Setup and Connections
Important Notes on SCART and RGB
format:
■ Your DVD 25 is equipped with a SCART con-
nector for direct connection to the TV.
■ The SCART connector provides the video
signal as well as audio (stereo L/R) signals.
■ The SCART connector for the TV provides the
composite video signal or the direct RGB sig-
nal, delivering the best video performance
possible, selectable in the Setup menu. To
view RGB video on your TV, the RGB compati-
ble SCART connector on the TV must be used
and the DVD 25´s TV SCART connector must
be set to ”RGB” (see page 16).
Note that with RGB video the color intensity
cannot be adjusted with most TVs.
■ When the RGB video signal is used, DVD´s
recorded with the NTSC format (with regional
code 0 or 2) can be viewed even on non-
NTSC compatible TVs.
Component Video Connection
If the video display has component video inputs,
connect the Component Video Outputs on the
DVD 25 to the corresponding input jacks on your
television. If you are using a progressive scan
television or projector, you must also change the
Scan Type in the DVD player's Video Set-Up
Menu from ”Interlaced” to ”Progressive.” See
page 16.

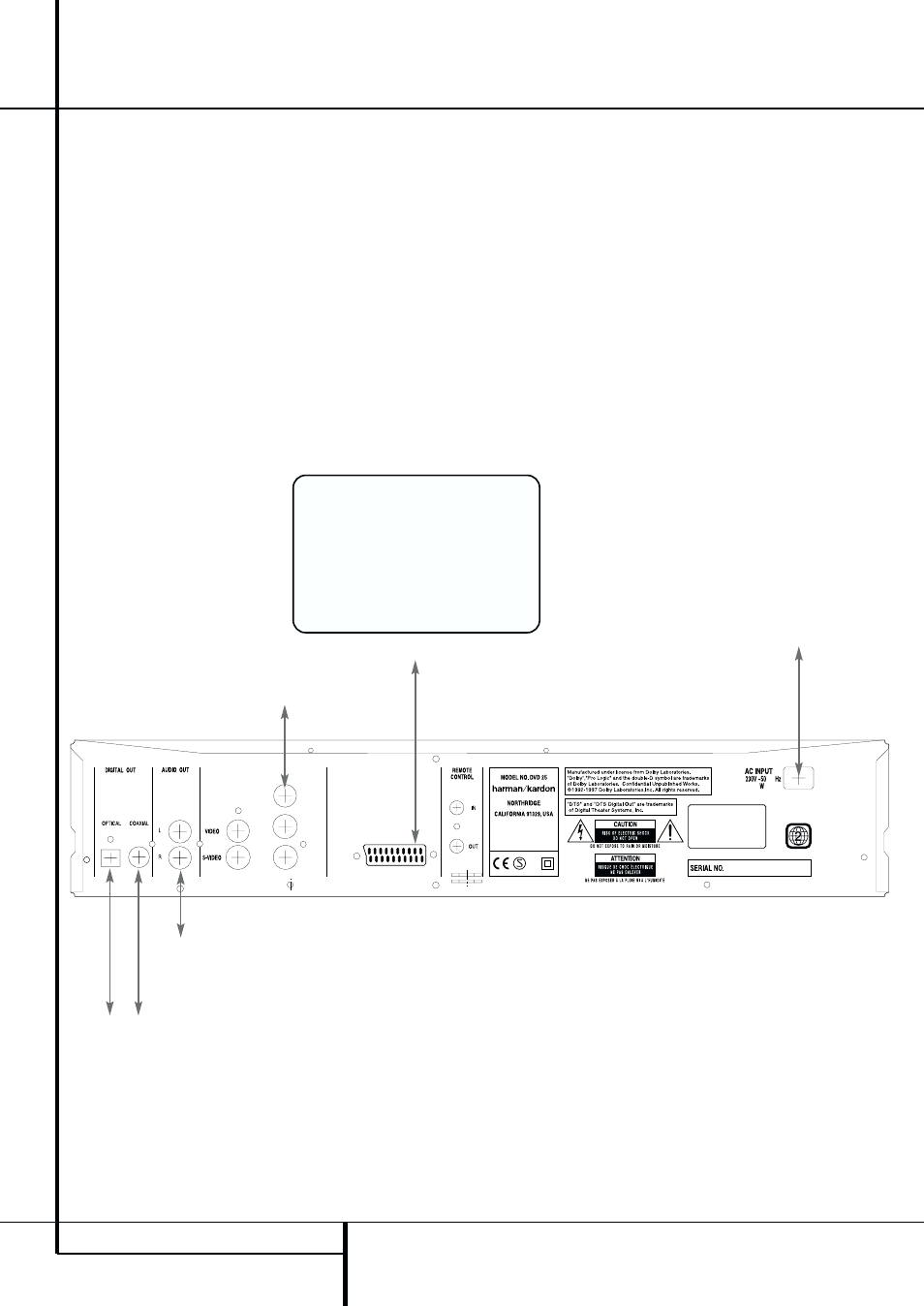

Connecting to a TV or monitor with SCART or Component connectors
VIDEO OUT/COMPONENT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
20
/60
TV SCART Y / Y / G
Pb/ Cb/ B
Pr/ Cr/ R
TV or Monitor
To power outlet
(AC 230V/50 Hz)
To SCART connector
To Component
connectors
To analog input of
stereo or Pro Logic
Amplifier/Receiver
To optical or coaxial
input of Dolby Digital/
DTS Decoder/
Amplifier/Receiver
DVD 25
