SETUP Menu
The HCS544 menu system consists of one main SETUP
menu (see
Figure 5 ) for easy camera programming.

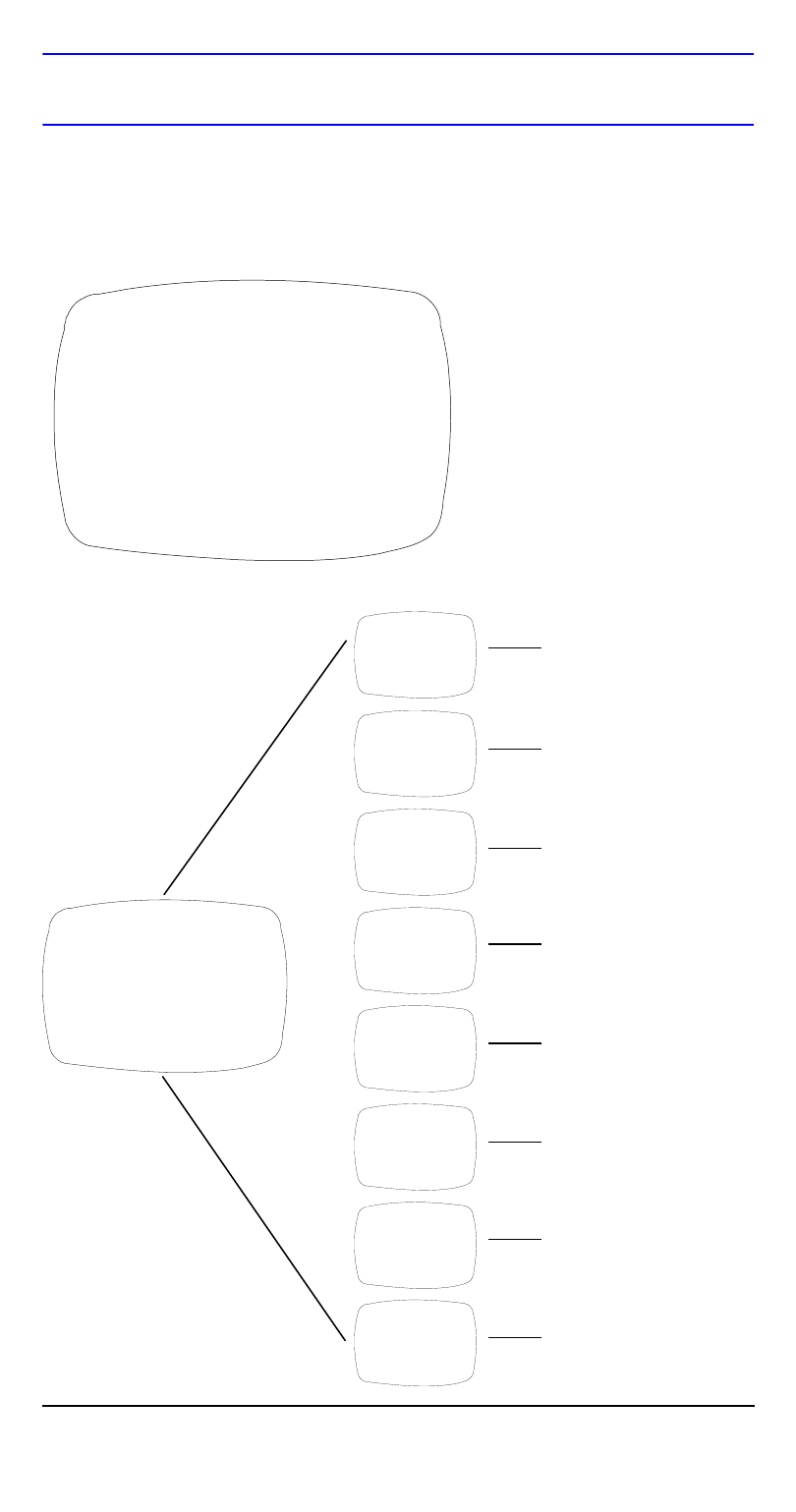

Figure 5 Menu Structure
<>
LENS DC%
SHUTTER – – –
WHITE BAL. ATW
BACKLIGHT OFF
AGC HIGH%
DNR MIDDLE
DSS AUTO
SPECIAL%
EXIT MENU
% indicates submenus
1
2
3
4
5
6
7
8
9
LENS
DC%
MANUAL
SHUTTER
WHITE BAL
BACKLIGHT
AGC
SPECIAL%
DSS
DNR
FLK
ESC%
MANUAL
ATW
MANUAL%
AWC%
OFF
LOW
MIDDLE
HIGH
OFF
LOW%
MIDDLE%
HIGH%
OFF
LOW
MIDDLE
HIGH
OFF
AUTO
%
See ”SPECIAL Menu”
on
page 14
.
SETUP Menu
Menu Options Submenu
See ”SETUP Menu
Functions” on
page 12 for
a description of the sub-
menus and menu options.
