Connecting the Cables
To install the DIVA T/A into your PC:
1 Push the ISDN S/T or U cable (see
②
in Figure 1) straight into
the jack on the card. Push the connector locking tab toward
your card.
ISDN U
(Integrated NT1)
Cable
Plug into
ISDN jack
ISDN Cable
DIVA T/A PC Card
Insert into PC
➀
➁
➂
B and D
LEDs
ISDN S/T cable

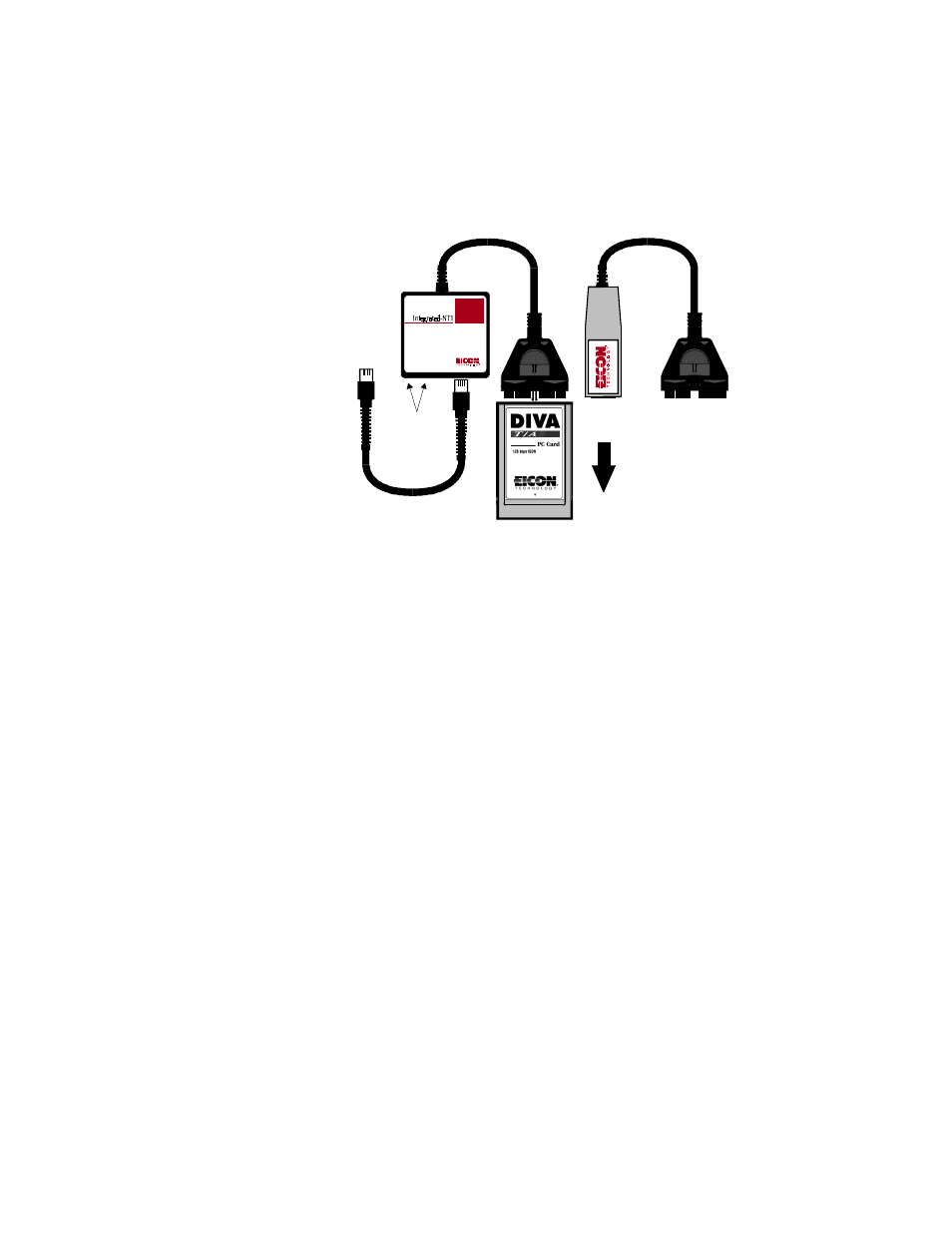

Figure 1.
2 Connect the other end of the cable to the ISDN cable (see
③
in
Figure 1) and the ISDN cable to an NT-1 (if required) or to the
ISDN wall socket.
Note: Some S/T connections will require use of the terminating
resistor. Refer to “ISDN Line Termination” on page 78 for more
details.
