Page 9

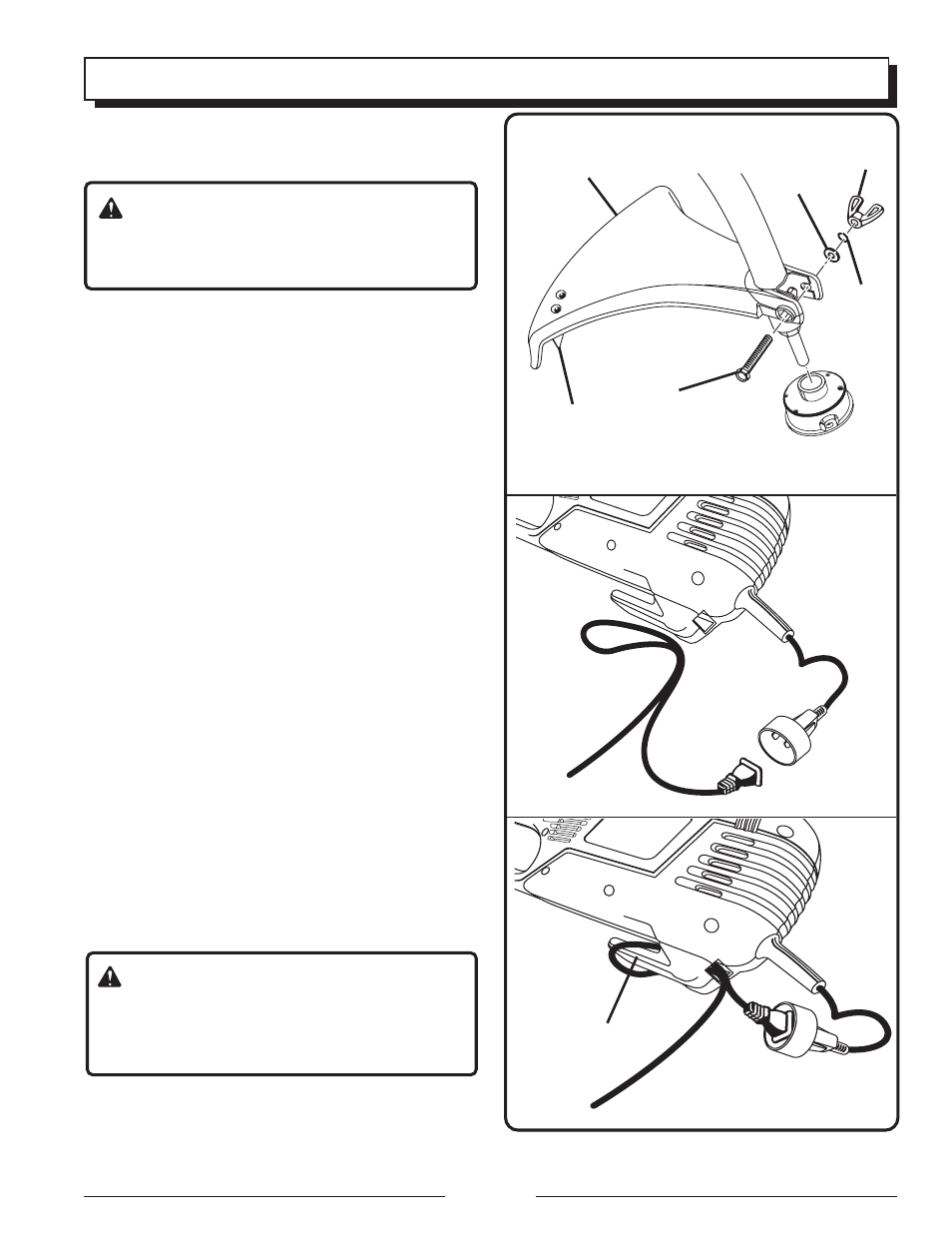

Fig. 4
ASSEMBLY
ATTACHING THE GRASS DEFLECTOR
See Figure 4.
WARNING:
The line cutting blade on the grass deflector is sharp.
Avoid contact with the blade. Failure to avoid contact
can result in serious personal injury.
Follow these steps to attach the grass deflector.
Slide the grass deflector onto the attachment shaft
and fit it over the bracket.
Install the bolt through the holes in the tabs on the
grass deflector and the slots in the bracket on the
attachment shaft.
Install the flat washer, the lock washer, and the wing
nut.
Tighten the wing nut securely.
Remove the protective packaging from the line
cutting blade.
EXTENSION CORD RETAINER
An extension cord retainer is located on the bottom
of the trimmer. This provides strain relief for the
cord, preventing unwanted disconnects.
Note: To reduce the disconnection of the power
cord from the extension cord during operation, use
the extension cord retainer described below.
METHOD OF SECURING EXTENSION CORD
Use the extension cord retainer when you connect
the extension cord to the power cord to prevent
disconnection. Use only an outdoor approved
extension cord as indicated by the letters “W-A” on
the cord’s jacket.
Loop the extension cord through the extension
cord retainer slot located on the bottom end of
the trimmer. See Figure 5.
Pull loop of extension cord around tongue and
pull tight. See Figure 6.
Attach extension cord to plug on trimmer. See
Figure 6.
WARNING:
The product may throw objects during operation,
causing injury to the operator or to bystanders.
Always wear suitable eye protection, boots, gloves,
and long, heavy pants while operating the product.
BOLT
WING
NUT
GRASS
DEFLECTOR
Fig. 5
Fig. 6
CORD
RETAINER
WASHER
LOCK
WASHER
CUT OFF
BLADE
