Hitachi DV 10DVA - Manual (Page 2)

Item
Part Name
No.
1
Name plate
2
Housing (A) • (B) Set
3
Tapping screw (W/Flange)
D3
×
18
4
Pushing Button
5
Strap
6
Flat Hd. Screw (Left Hand)
M5
×
20
7
Drill Chuck 10VLR-N
8
Cap
9
O-Ring
10
O-Ring Plate
11
Clutch Plate
12
Spring
13
Spring Holder
14
Steel Ball
15
Spindle Gear
16
Shift Arm
17
Shift Knob
18
Motor
19
Machine Screw
M3
×
4
20
Fin
21
Machine Screw
M3
×
7
22
Tapping Screw
D3
×
14
23
DC-Speed Control Switch
24
Terminal Support
25
HITACHI Label
26
Mark Plate
27
Battery EB12
5
0
1
Charger (Model UC12SC)
502
Case
Parts are subject to possible modifica- tion without notice due to improve- ments.

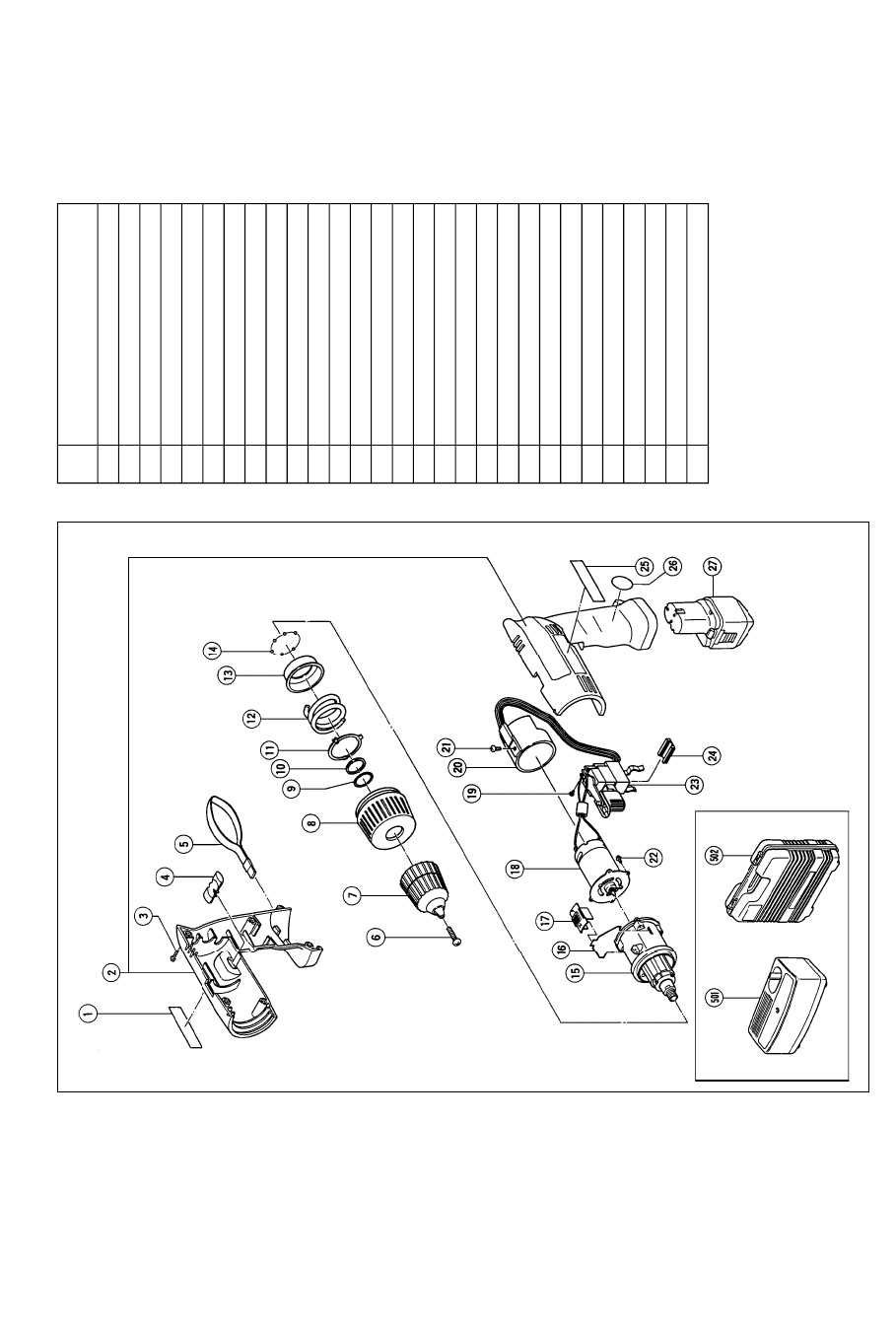

The exploded assembly drawing should be used only for authorized service center.
