C. Framing
Figure 3.2 shows a typical framing (using 2 x 4 lumber) of
the heater, assuming combustible materials are used. All re-
quired clearances to combustibles around the heater must
be adhered to.
A*
B*
(header height)
14 in.
(356 mm) *If using the PBT or BKT Cabinet Trim Kits,
increase the width (A) by 1-1/4 in. (32 mm)
and header height (B) by 5/8 in. (16 mm)
.
Mantel height listed is measured
from the BASE of the heater.
3/4 in. - 12 in.
(19 mm - 305 mm)
C
(CEILING)
30 in. min.
(762 mm)

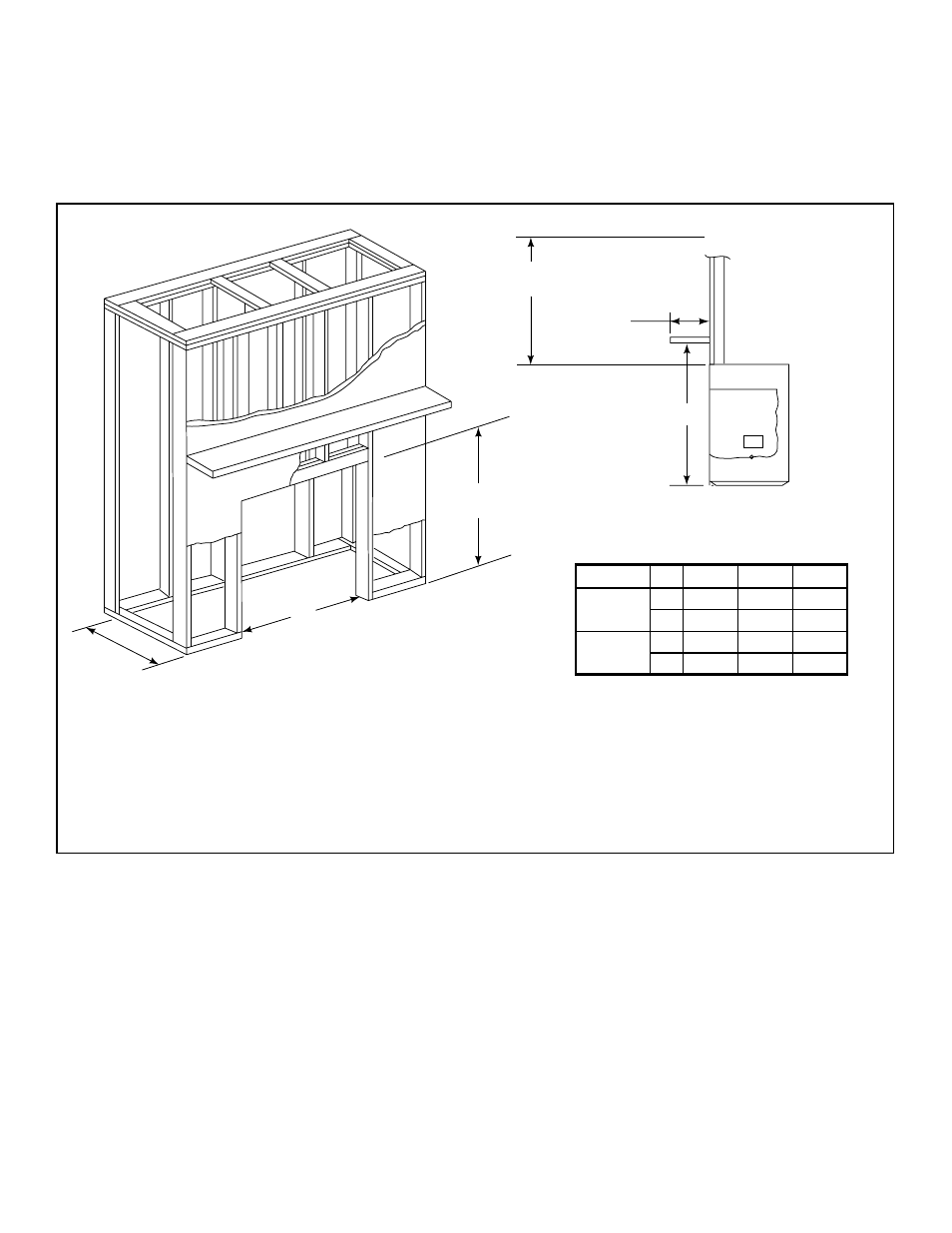

Figure 3.2 Framing the Heater
Model A B C
CF550E-B
Series
in. 36-1/4 31-1/4 31-1/2
mm 921 794 800
CF750E-B
Series
in. 41-1/4 34-7/8 35
mm 1048 886 889
