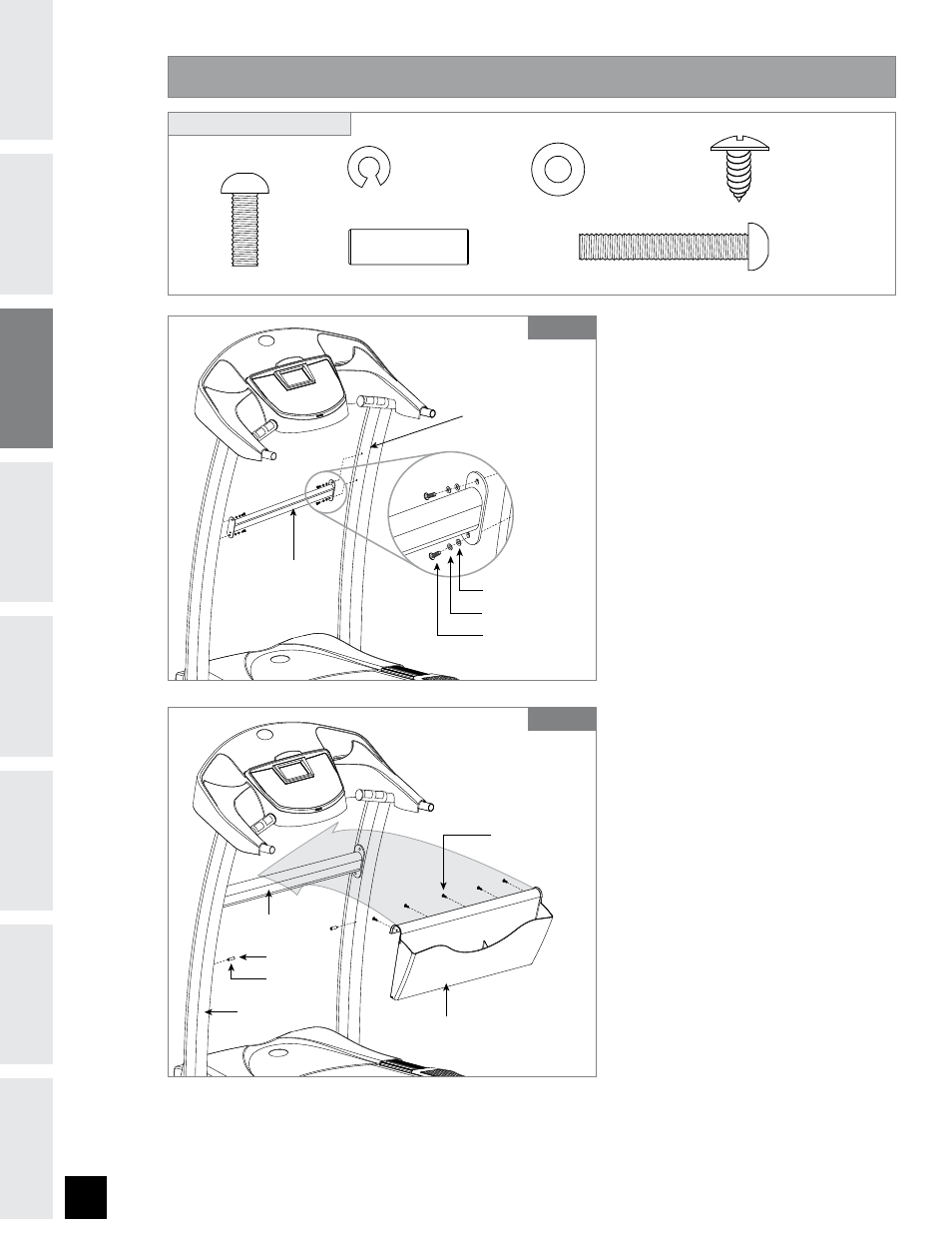

ASSEMBLY STEP
BOLT (E)
15 mm
Qty: 4
BOLT (J)
38 mm
Qty: 2
FLAT WASHER (G)
12 mm
Qty: 4
SLEEVE (I)
26.5 mm
Qty: 2
SPRING WASHER (F)
10 mm
Qty: 4 SCREW (H)
12 mm
Qty: 5
HARDWARE BAG CONTENTS :
$0/40-&."45
#0-5 &
413*/(8"4)&3 '
'-"58"4)&3 (
$3044#"3
STEPS A-C
4$3&84 )
#0-5 +
4-&&7& *
4503"(&3"$,
$0/40-&."45
$3044#"3
STEPS D-G
A Open HARDWARE BAG .
B Align CROSS BAR with holes in
CONSOLE MAST.
C Insert 1 BOLT (E), 1 SPRING
WASHER (F) and 1 WASHER
(G) into the bottom holes of
the CROSS BAR.
NOTE: Do not insert the top
bolts until Step 3-F, after
the STORAGE RACK has been
attached.
D Attach 2 SLEEVES (I) to BOLTS
(J). Insert 2 BOLTS (J) into
CONSOLE MASTS.
E Slide STORAGE RACK over
SUPPORT BAR and snap
bottom of STORAGE RACK to
BOLTS (J).
F Now you may insert the top 2
BOLTS (E) into the SUPPORT
BAR. Tighten all 4 BOLTS (E).
G Attach STORAGE RACK to
CROSS BAR using 5 SCREWS
(H).
10
