Take the second magazine, which you just finished loading, and
position it the same way as the magazine you just removed. At one
end, the magazine has a broad metal plate ( A ) and flared rails with a
notch at each side ( B ); this must face the bottom of the drawer, with
the first slide facing the top (see Figure 12, below). Align the slots on
the rails with the bottom tabs of the drawer and press the magazine
down into place until it clicks at both the top and bottom ends.
B
A

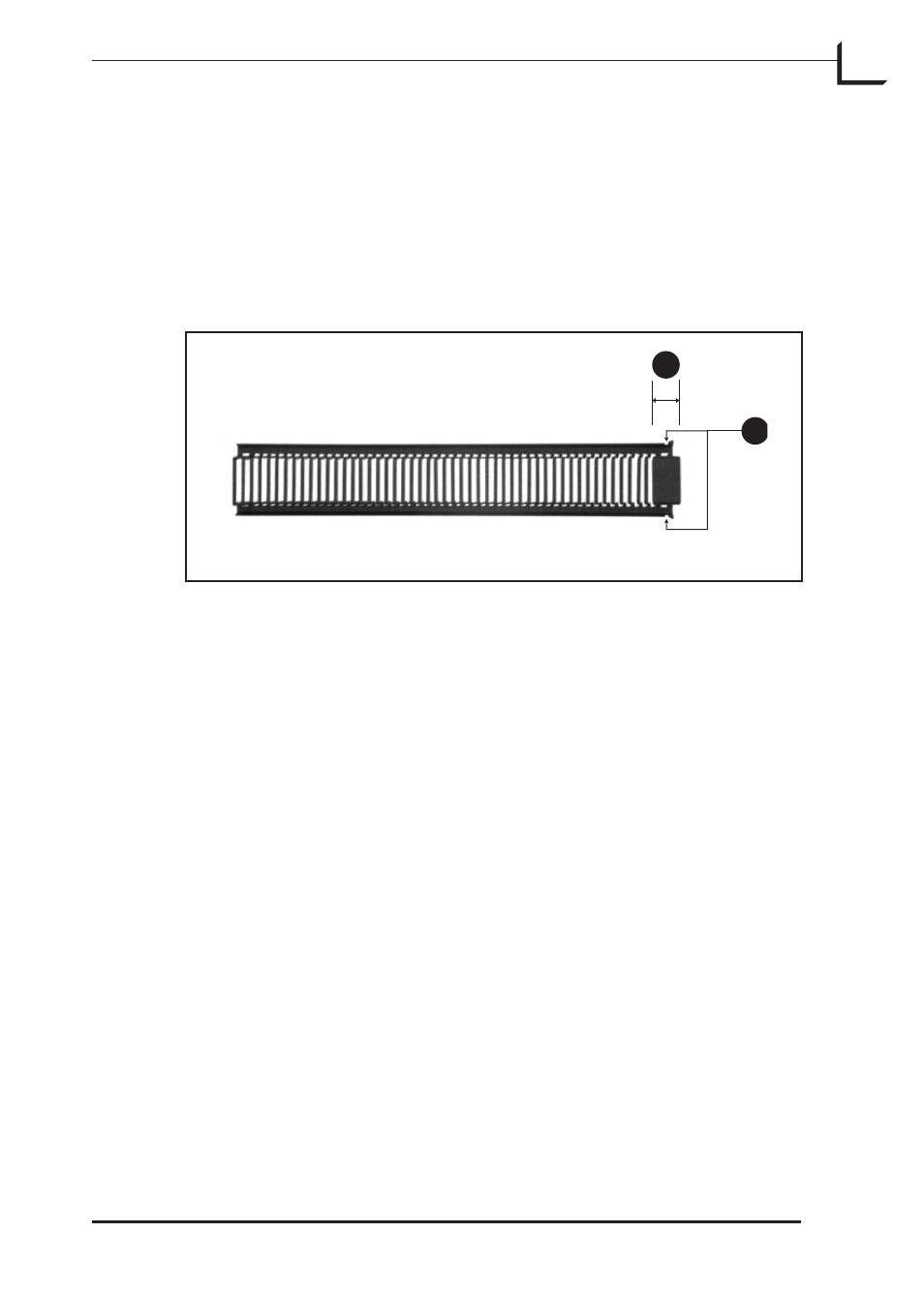

Figure 12: The bottom end of the magazine has a broad metal plate
(A) and flared, notched rails (B); this end must face the bottom of the
magazine drawer when you replace the magazine.
Take the drawer back to the scanner. As when you removed the
drawer, hold the drawer with one hand and stabilize the Feeder with
the other. Insert the two pins at the bottom of the drawer into the
holes at the top of the hinge. Press the drawer down so that it sits flush
against the hinge panel.
Close the magazine drawer by rotating it up and pressing it into place
so that the metal clasp holds it at the top.
6.
7.
8.
