For technical questions, please call 1-800-444-3353.
Floor Jack
Part
Description
Qty
1
Retaining Ring (M20)
2
2
Washer (M20)
2
3
Front Wheel
2
4
Frame
1
5
Nut (M16)
4
6
Washer (M16)
4
7
Screw (M5X12)
4
8
Rear Caster Assembly
2
9
Screw (M10X20)
4
10 Washer (M10)
4
11 Bolt
2
12 Washer (M18)
2
13 Retaining Ring (M12)
1
14 Handle Socket Roller
1
15 Handle Socket
1
16 Shaft
1
Part
Description
Qty
17 Set Screw
1
18 Upper Handle
1
19 Lower Handle
1
20 Screw (M6X35)
1
21 U-Joint
1
22 Hydraulic Unit
1
23 Spring
2
24 Retaining Ring (M22)
2
25 Hydraulic Unit Adaptor
1
26 Pin (A4x55)
1
27 Retaining Ring (M25)
2
28 Lift Arm Shaft
1
29 Cover Plate
1
30 Saddle
1
31 Saddle Screw
1
32 Handle Bumper
1
32

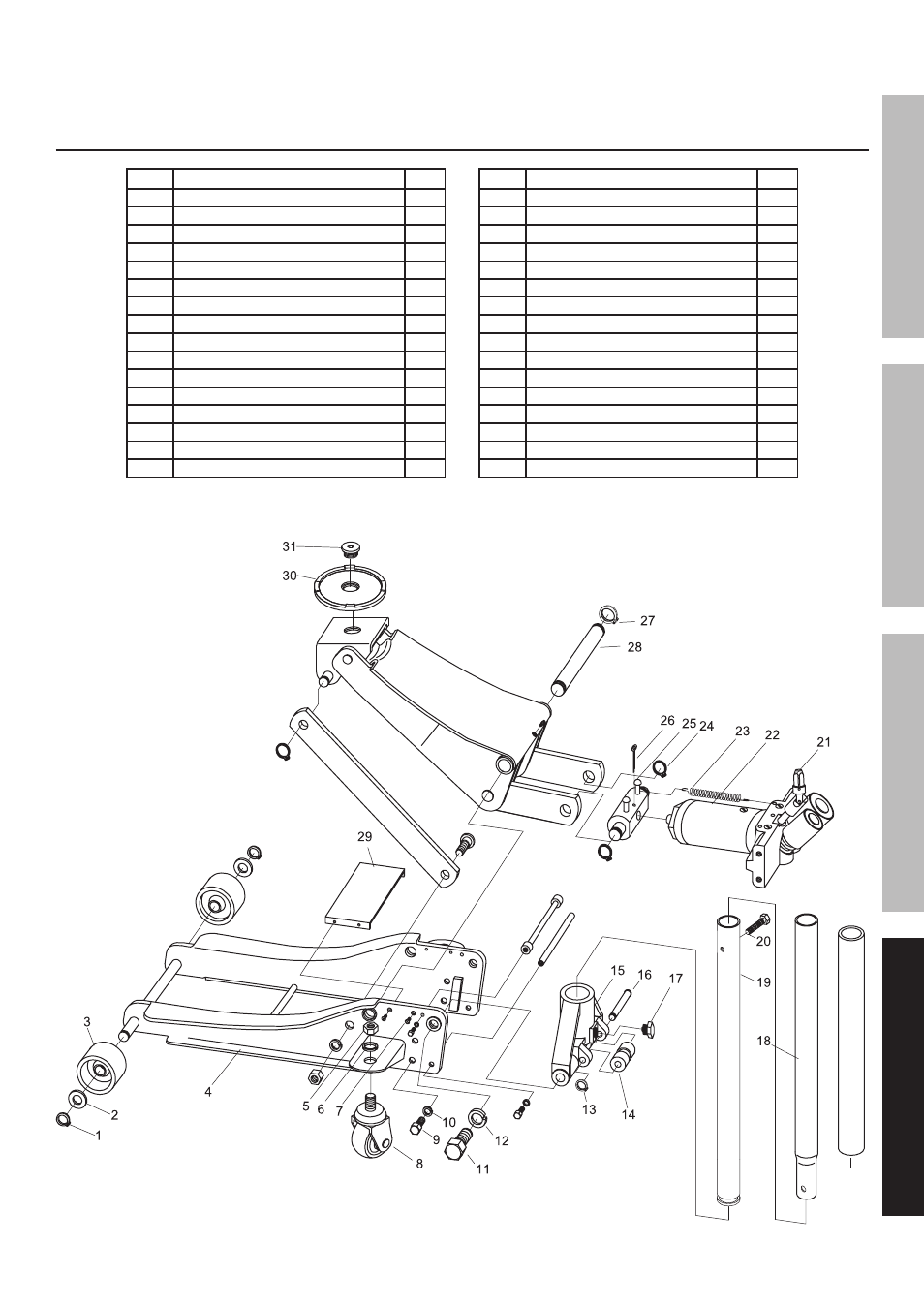

68049 Parts List and Assembly Diagram
