Hustler Turf Lawn Mower Accessory User Manual
Page 26
601156_0308
25
1
3a
2
3b
4
8
15
11
11
10
10
6
6
5
7
7
16
9
14
12
14
13
Viewed from top of unit
Viewed from top of unit
FasTrak 36/42
Mini FasTrak 36/42

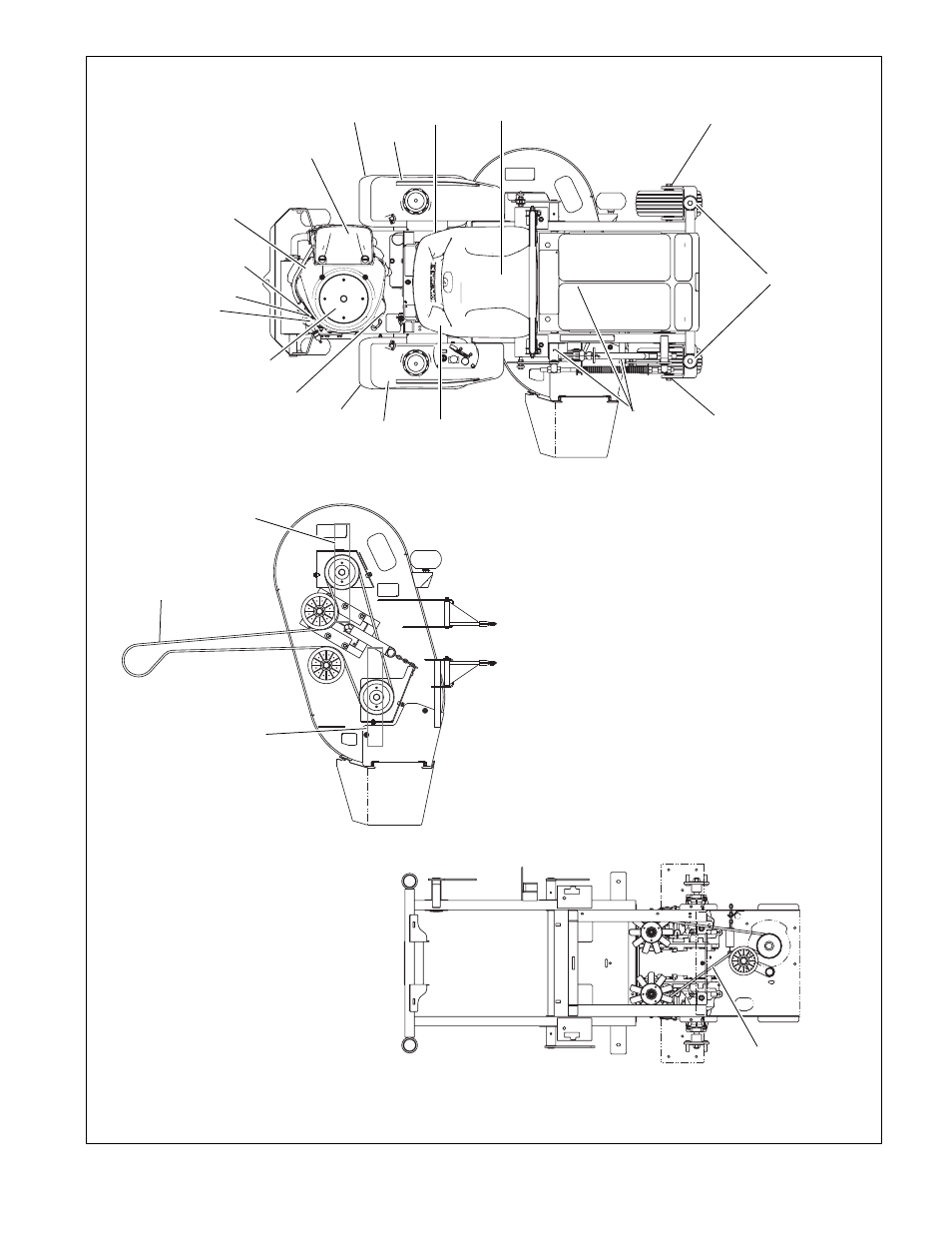

Maintenance Locator Chart
1. Engine Oil Fil & Dipstick
2. Fuel Filter
3a. Engine Air Cleaner (Honda)
3b. Engine Air Cleaner (Kohler)
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Gauge Wheel Bearing Zerks (2)
8. Engine Oil Filter
9. Deck Lift Pivot Zerks (3)
10. Park Brake Switch (2)
11. Drive Tire
12. Deck Belt
13. Pump Belt
14. Blades
15. Engine Air Intake Screen
16. Front Gauge Wheel Tires
Figure 5-12
