601156_0308

17

With the engine running, engage the deck clutch switch (Fig. 3-1) and

advance engine throttle to full rpm.

NOTE:

Engaging the deck clutch at high engine rpm or when under

heavy load (in tall grass for example) can cause belts and/or electric clutch to
slip, resulting in premature wear or possible damage.

Deck cutting height adjustment

Deck height is adjustable from 1-1/2”- 4-1/2” (3.81 cm - 11.43 cm) in

1/4” (.64 cm) increments. The holes in the height adjusting bar are spaced at
1/2” (1.27 cm) intervals. By turning the height adjusting stop around, 1/4”
(.64 cm) increments can be attained due to the 1/4” (.64 cm) plate that is part
of the stop. Fig. 3-10

EXAMPLE:

When the height adjusting stop is placed in the 1-1/2” (3.81

cm) hole, with the 1/4” (.64 cm) plate facing to the front of the unit, the
cutting height is at 1-1/2” (3.81 cm). When the height adjusting stop is placed
in the 1-1/2” (3.81 cm) hole, with the 1/4” (.64 cm) plate on the operator’s
side of the hole,
the cutting height is at 1-3/4” (4.45 cm).

The notch located at the rear of the height adjusting bar is to be used

when the deck is placed in the transport mode.

Anti-scalp wheels

Anti-scalp wheel kits are standard on FasTrak units. These anti-scalp

wheels are designed to minimize scalping when mowing on rough uneven
terrain.

After setting the cutting height, adjust the anti-scalp wheels so they

extend below the deck but do not contact the ground. They should always
be at least 1/4” to 3/4” (6.35mm to 19.05mm) below the deck. With the unit
sitting on a flat level surface, the wheel position can be adjusted up or down
as needed from 3/4” to 1-3/4” (19.05mm to 44.45mm) below the blade sur-
face. Move the wheels up or down, in 1/2” (12.70mm) increments, using the
different axle mount holes in the wheel mount bracket. Fig. 3-11

When adjusting the rear anti-scalp wheels, the wheel should be in the

same axle mount hole as the front anti-scalp wheels.

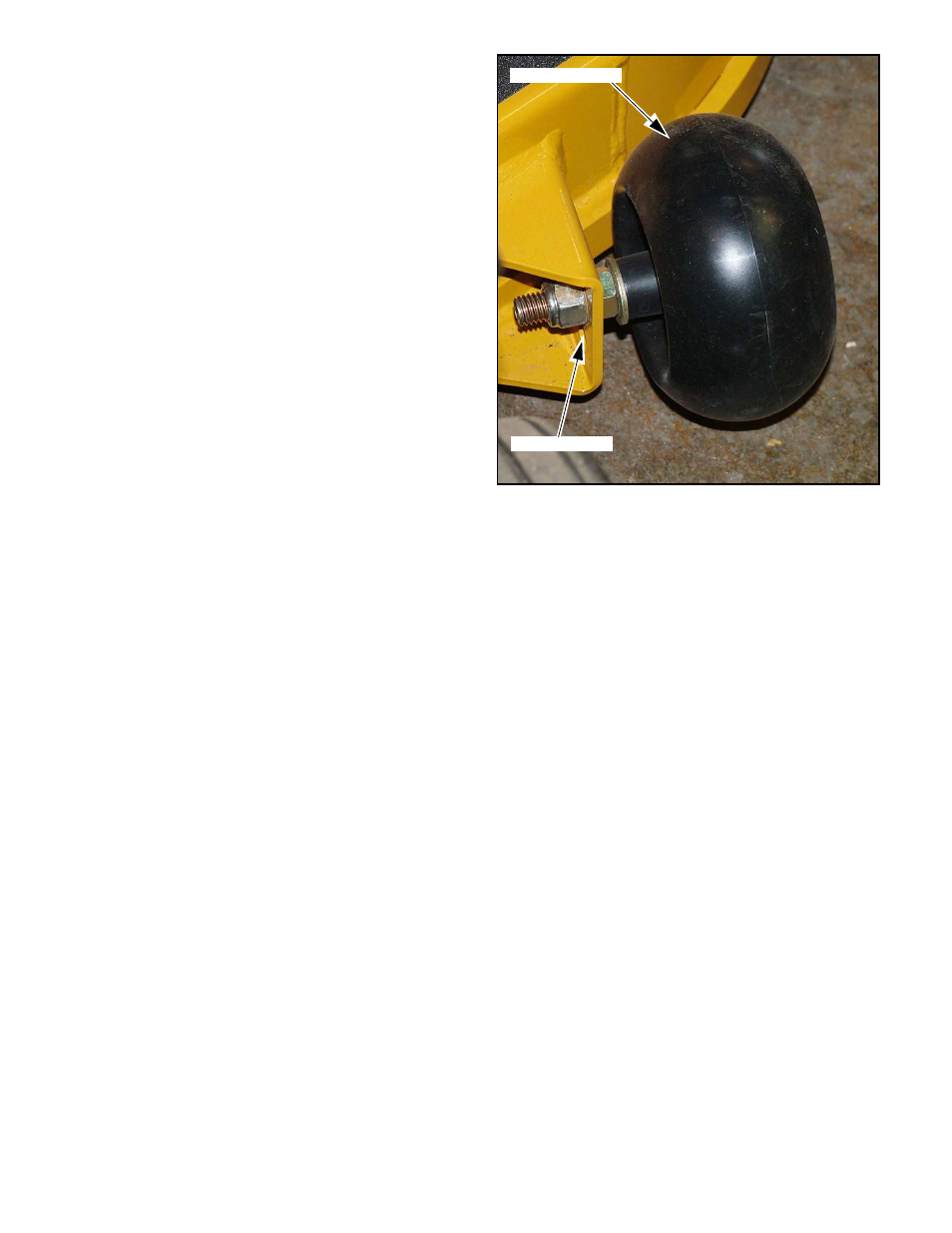

Figure 3-11

Anti-scalp wheel

Adjusting holes
