33

ENGLISH

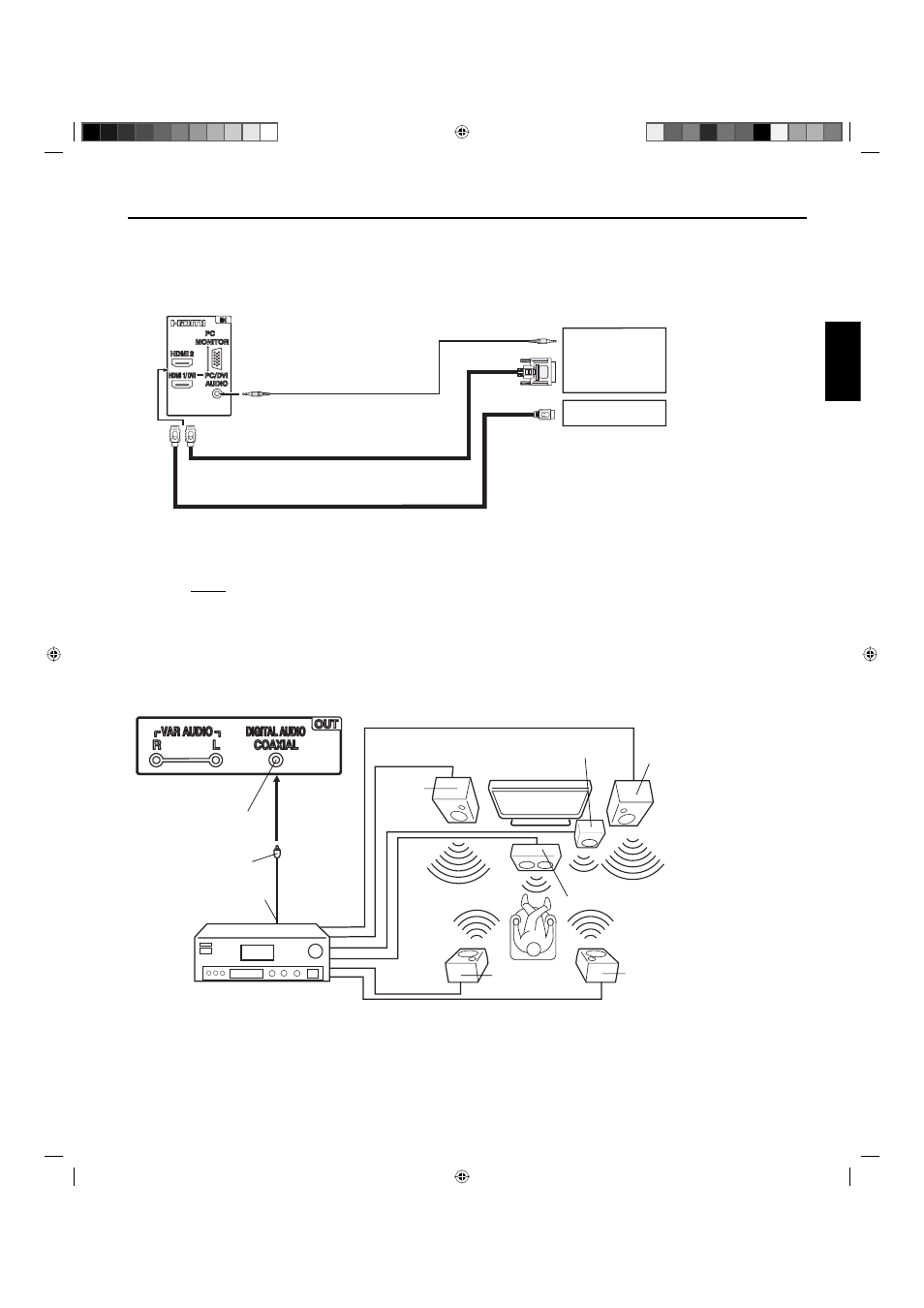

To connect a HDMI or a DVI device to the unit

The HDMI 1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device.

When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords

required.

Connections to other equipment

(continued)

Using an AV Amplifier with built-in digital surround

If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround

audio that sounds just like the movie.

Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as shown below.

Rear of the unit

Coaxial digital cable

(not supplied)

AV Amplifier with built-in digital surround

decoder as listed above

Center Speaker

Digital Audio

Coaxial Output

To Coaxial

Digital Audio Input

Rear of the unit

Front

Speaker

(Left)

Front

Speaker

(Right)

Subwoofer

Surround

Speaker (Left)

Surround

Speaker

(Right)

TV/DVD

NOTE:

When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio. There will be no sound

output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.

HDMI - to - DVI adapter cable

(HDMI type A connector)

(not supplied)

Audio cord (not supplied)

HDMI cable (type A connector)

(not supplied)

To DVI output

To HDMI out

HDMI device

DVI device

To HDMI1/DVI

IN or HDMI2 IN

To PC/DVI

AUDIO IN

NOTE:

When using HDMI 1/DVI to connect your HDMI or DVI devices, you must select the corresponding audio input source

(HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the image with no sound.

If you connect an external component (cable box, satellite receiver, etc.) to this TV/DVD using an HDMI cable or a DVI to HDMI cable,

the image will not display if the output resolution of the component is set to 480i. To receive the picture you must change the output

resolution on the external component.

Should you require further instruction, please contact the manufacturer of the external component.

or

To HDMI1/DVI IN
